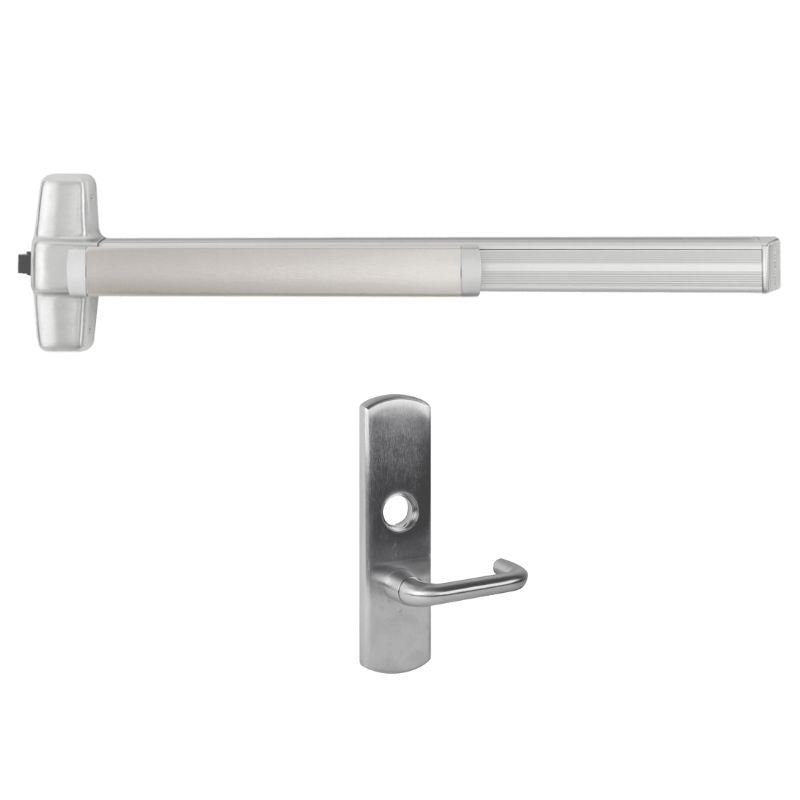

Von Duprin 99L-F-03 Fire Rated Rim Exit Device, With 996LR/V-03 Escutcheon Lever Trim, Classroom Function, Less Dogging, Less Cylinder, Grade 1

This Von Duprin 99L-F-03 Fire Rated Rim Exit Device is designed with a high-quality grade 1 construction, ensuring durability and safety. Its classroom function allows for swift evacuation during emergencies, while the 03 lever and escutcheon provide a secure and comfortable grip.

Features 996L-R/V-03 Lever Trim (Classroom Function):

• Key locks and unlocks
• Rim and 1 ¼" mortise cylinder
• 03 - Lever Style
• Field Reversible
• R/V - For Rim or Vertical Rod Exit Devices

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
