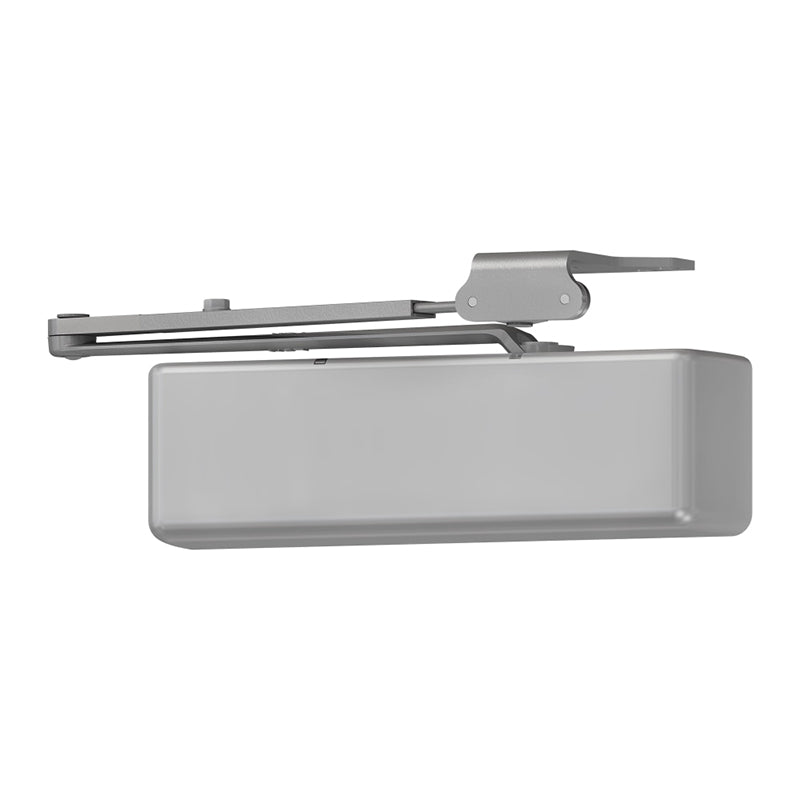

LCN 4040XP-RW/PA-TBSRT Super Smoothee Heavy Duty Closer - Regular Arm with Parallel Arm Shoe
The LCN 4040XP-RW/PA-TBSRT door closer features a heavy duty design and comes equipped with a regular arm and parallel arm shoe for a smooth and secure closing.
TBSRT: Through Bolt Self Reaming and Tapping Screws
The 4040XP is LCN's toughest rear-mounted closure, ideal for high-traffic environments. It sets new standards for reliability, longevity, and value, featuring a robust design and superior performance testing. Designed inside out with strong construction and proven LCN technology, it offers intelligent and durable solutions across various applications. The patented green dial allows quick, foolproof spring adjustments, while all-weather waterproofing ensures low maintenance and consistent operation for heavy-traffic doors, guaranteeing reliability despite constant use.
- Cast iron cylinder with full-complement bearing
- 3/4" diameter piston
- Double-heat treated steel pinion journal
- All-weather Liquid X fluid
- LCN Patented Green Dial spring force indicator
- 30-year warranty
- Universal non-handed
- Peel-n-stick template and snap-on cover
- Adjustable spring sizes 1-6
Features
| Certifications |
Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act |
| Body Construction |
Cast Iron Body; Full Complement Bearings; 1-1/2" Diameter Piston; 3/4" Diameter Double Heat Treated; Pinion Journal |
| Fluid |
All-Weather Liquid X Fluid |
| Handing |
Non-Handed |
| Templating |
Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern |
| Size |
Adjustable Spring Size 1-6, includes Patented Green Dial |
| Warranty |
30 years |
| Cover |
Plastic, Standard; Metal, Optional |
| Fasteners |
Self Reaming and Tapping Screws (SRT) |
| Mounting |
Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side) |
| Arms |
Regular Arm |
| Finishes/Colors/ Powder Coat |
Aluminum (689); Statuary Bronze (690); Light Bronze (691); Black (693); Dark Bronze (695); Brass (696); Custom colors optional; Optional SRI primer - powder coat only n Optional plated finishes |
