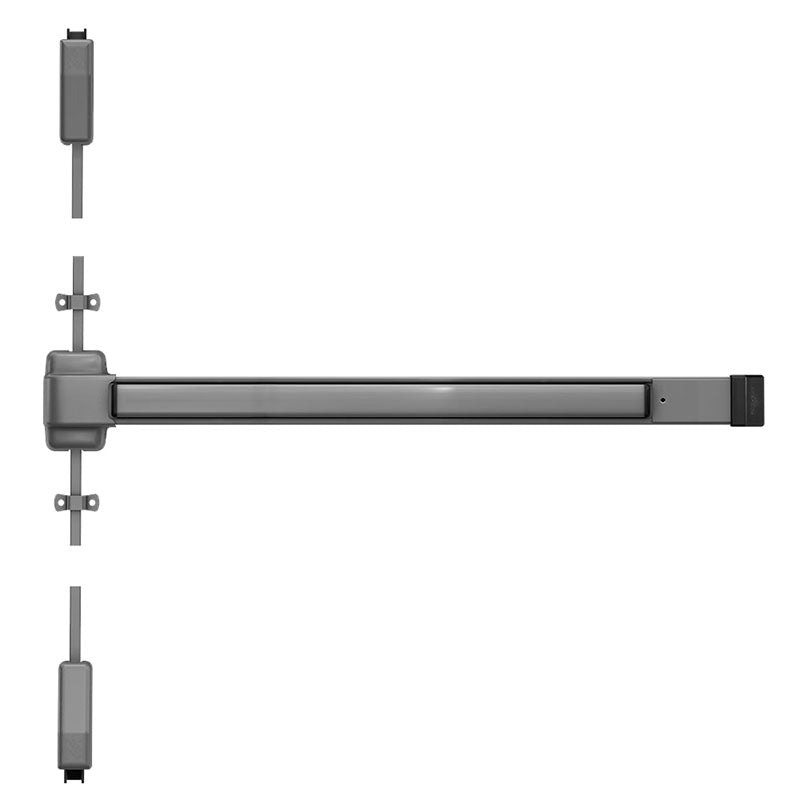

Von Duprin 2227EO Grade 1 Surface Vertical Rod Panic Device, Exit Only, Comes Less Trim, Hex Key Dogging, Field Reversible
Multi-Function Device: Trims below decide the function of the device;
210NL Night Latch Trim - Key retracts latch bolt
210DT Dummy Trim - Pull when dogged
210K Knob Trim - Key locks and unlocks
210K-BE Knob with Blank Escutcheon - Always operable, no cylinder
230EO Exit Only Plate - Exit only plate
230DT Dummy Trim - Pull when dogged
230NL Night Latch Trim - Key retracts latch bolt
230TP-BE Thumbpiece Blank Escutcheon - Always operable, no cylinder
230TP Thumbpiece - Key locks and unlocks
230L Lever Exit Trim - Key locks and unlocks
230L-BE Lever with Blank Escutcheon - Always operable, no cylinder
2227 Series Surface Vertical Rod Exit Device
UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
- Device centerline from finished floor: 39 13/16" (1011 mm)
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
- Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
- Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished
Manufacturer | Von Duprin |
SKU | 2227EO 3 |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL 305 |
ANSI Number | A156.3 |
Restrictions | No |
BAA Qualified | Yes |
Limited Warranty | 3 Years |
Fire Rated | No |
Burglar Rated | No |
ADA Compliance | No |
Physical Appearance | Wide Stile Pushpad |
Device Type | Surface Vertical Rod |
Mechanical Function | Exit Only, Accepts Various Trim |
Device Length | 36" or 48" |
Hand | Non-Handed |
Dogging Options | Hex Key Dogging |
Top Strike | 299 |
Strike Bottom | 304L & 248L-4 |
Includes Trim | No |
Trim Type | Less trim |
Includes Cylinder(s) | No |
Cylinder Type | Non-Keyed |
Minimum Stile Size | 3-5/8" |
Door Material | Metal or Wood |
Door Width | (26.5" - 36") or (32.5" - 48) |
Door Height | 84" |
Door Thickness | 1-3/4" - 2-1/4" |
Fire Rated | No |
Reversible | Yes |
Product Type | Surface Vertical Rod Exit Devices |
