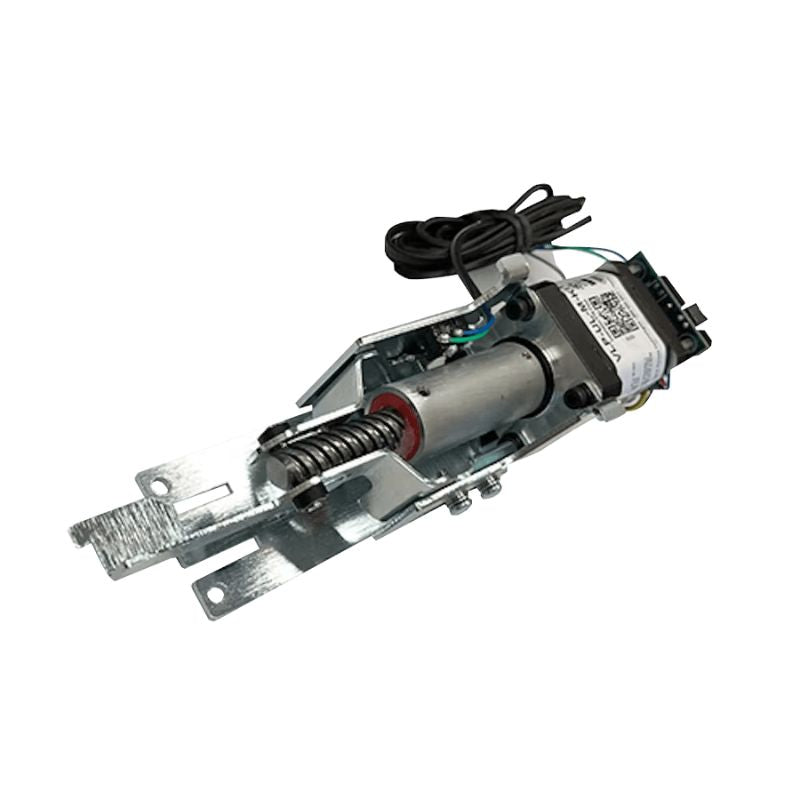

Command Access Technologies MLRK1-VD22 Motorized Latch Retraction Kit, for Von Duprin 22 Series Exit Device

The MLRK1-VD22 offers a practical and cost-effective solution for converting a mechanical Von Duprin 22 series device into an electrified latch pullback device. This retrofit kit preserves all UL listings on the device and comes with CAT’s three-year no-hassle warranty. Installation is straightforward, easily connecting to the dogging tailpiece and securing with just two screws in seconds. The only drilling required is for the wire raceway. The Push to Set (PTS) feature simplifies post-installation adjustments of the latch or latches. Additionally, every unit includes a built-in REX switch. The kit also incorporates our updated MM5 module, which is energy-efficient while still robust enough to handle demanding tasks.

• Next Generation MM5 Smart Module: Onboard diagnostics with audible feedback for adjustment and power issues
• “PTS”: 2-second electronic adjustment for easy post-installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods Doors!
• Electric dogging rated for continuous duty - Auto Re-engage if push pad is pulled from dogged position
• Up to 300’ wire run with 2-18Ga wire - Long wire runs provide the installer with the convenience of placing the Command Locking hardware power supply in a centralized location, I.e., the same closet as the access control panel.
• 6” cable with robust Quick Molex Connector for MM5 module to 6’ Power lead to easily connect to power supply lead.
• Works on all 22 Series devices


MLRK1-VD22 is compatible with:

Von Duprin 22 Series Exit Devices
