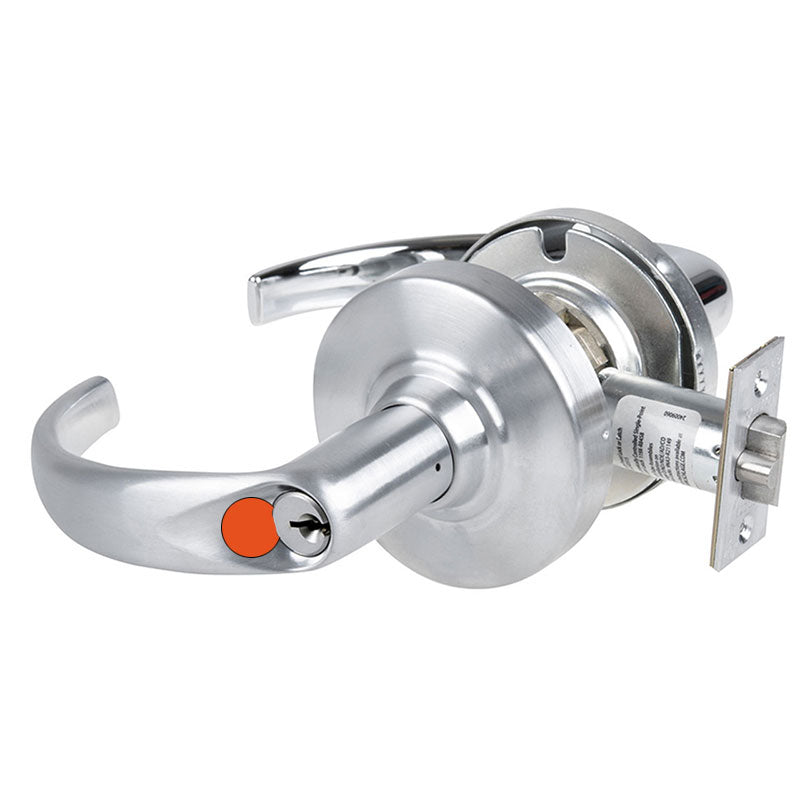

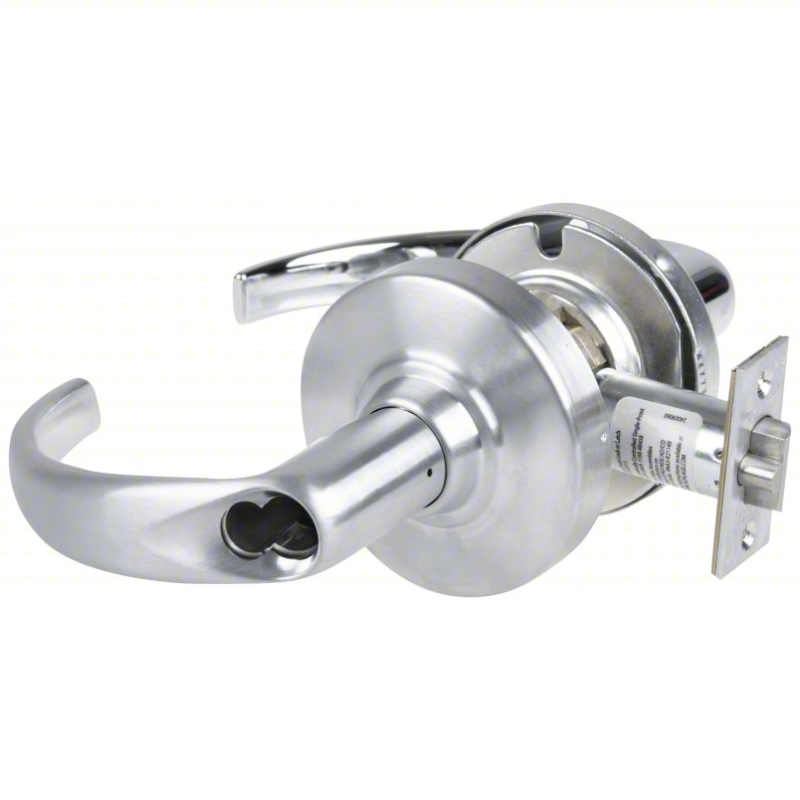

Schlage ND80TD-SPA-626 Storeroom Lock, Sparta Lever, Schlage FSIC Prep with Construction Core, Satin Chrome Finish

  • SKU: ND80TDSPA626

Schlage ND80TD-SPA-626 Storeroom Lock, Sparta Lever, Schlage FSIC Prep with Construction Core, Satin Chrome Finish

  • SKU: ND80TDSPA626
Sale priceDhs. 2,125.00/ea
In Stock
In Stock

The Schlage ND80TD-SPA-626  is a Storeroom Lock, with a Sparta Lever, has Schlage FSIC Prep with Construction Core, is Grade 1, and comes in Satin Chrome Finish.

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • 31 mechanical functions
  • Nine lever designs, two rose designs
  • 10 available finishes
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
  • Support for 10 non-Schlage cores



    Vendor Allegion
    Manufacturer Schlage
    SKU ND80BDEU SPA 626
    Grade Grade 1
    Installation Commercial
    Origin Mexico
    Application Storeroom Lever
    Base Material Brass or Bronze
    BAA Qualified Yes
    Limited Warranty 1 Year
    Finish 626/US26D
    Finish Description Satin Chrome



    Function 80EU-Fail Secure
    Lever/Knob Design SPA-Sparta
    Rose/Escutcheon Design 3-7/16 In. Diameter
    Cylinder Type SFIC Prep Less Core
    Door Thickness 1-3/4" to 2"
    Latch Number 14-047
    Latch Type Guarded Latch
    Latch Backset Dim 2-3/4"
    Lock Face Size 2-1/4" X 1-1/8"
    Strike Number 10-025
    Strike Type ASA
    Strike Height 4-7/8"
    Strike Width 1-1/4"
    Dust Box None
    Screws Combination
    Power Hard Wired
    Operating Voltage 12VDC/24VDC
    Amp Draw 0.23
    Switch Type None
    Product Type Electric Cylindrical Lock
