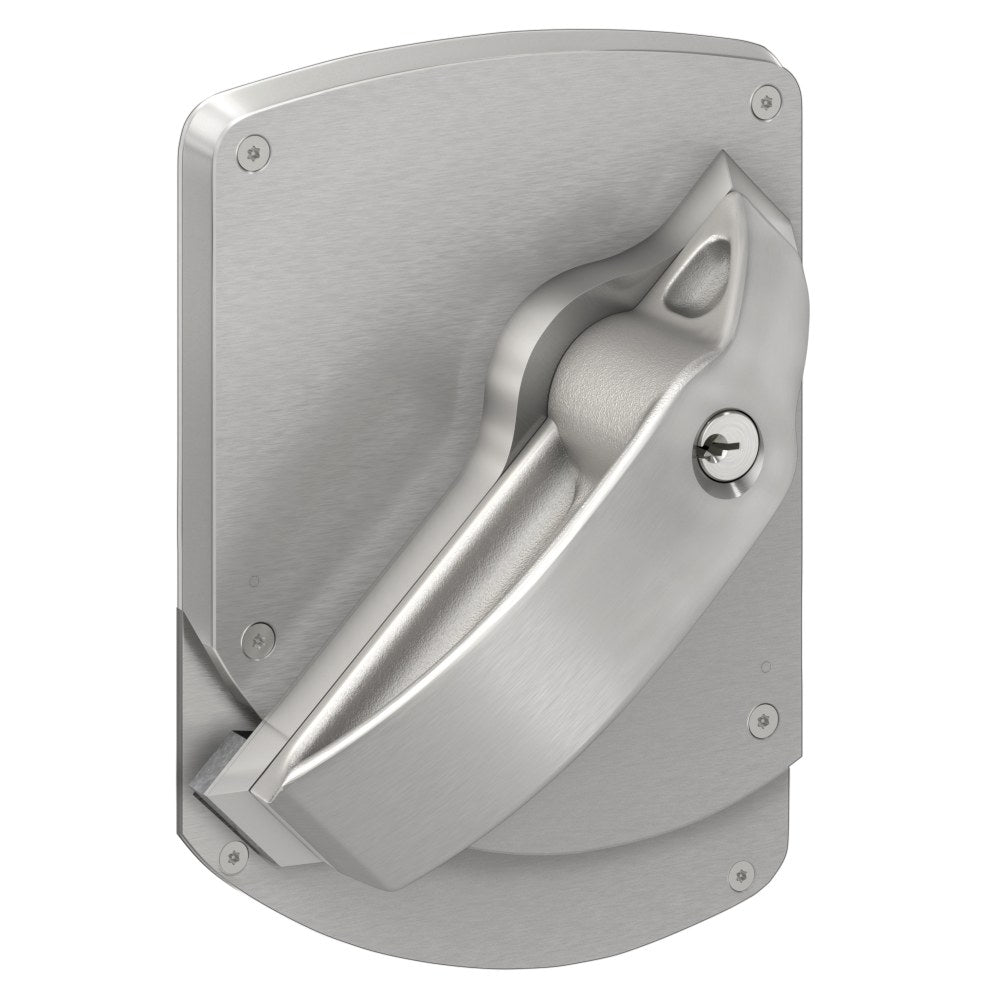

Schlage ND80PDEL-HSLR-630 Electrically UnLocked Storeroom Lockset, Fail Safe, High Security Ligature Resistant Trim, Sch ‟C‟ Keyway Keyed Random, 2 Keys, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Satin Stainless Steel Finish

Schlage ND80-EL-HSLR-630 Electrically Locked Storeroom Lockset features a Fail Safe mechanism and High Security Ligature Resistant Trim. It also includes a Sch 'C' Keyway with a random keying option and comes with 2 keys. The lock has a 2 3/4 backset and a 4 7/8 strike. This Grade 1 lock has a sleek and durable Satin Stainless Steel finish.

Features and Benefits

• The highest level of ligature resistance to positively contribute to healing environments

• Cylindrical and mortise options

• “Paperclip Protection” designation as determined by NYS-OMH testing

• Recommended for low, medium or high risk areas

• ADA Compliant - ”no pinch, no grasp”

• Variety of mortise and cylindrical functions available, including electrified

• Supplied with Torx® security screws

• Available in 630 finish

• BAA compliant

• Locks are ANSI/BHMA Grade 1 certified

• UL Listed 3-hour

Electrical Requirements

• Input Voltage: auto-detects 12V to 24V DC

• Max current draw: 0.24 amp @ ambient (240mA)

• Holding current: 0.01 amp (10mA)

• Temperature range: 15°F – 120°F (-18°– 49°C)

ND Series Electrified Lever Locks

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

The electrified ND is ideally used in:

• High-traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Key Features
All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL, or EU, with or without RX
• Six electrified functions for application flexibility
