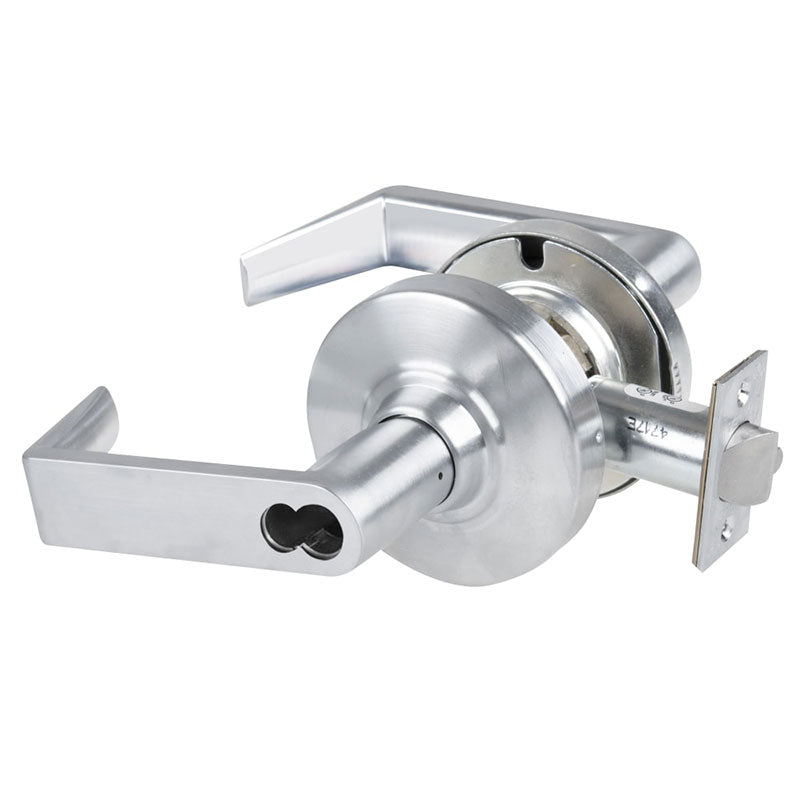

Schlage ND80JD-EL-RHO-626 Electrified Storeroom Cylindrical Lock, Fail Safe, Rhodes Lever, FSIC Prep, Less Core, Satin Chrome

Technical Specs

Product Specs

The Schlage ND80JD-EL-RHO-626 is an Electrified Cylindrical Storeroom Lock, that is Fail Safe, is 12-24V DC, with a Rhodes Lever, is prepped for a Schlage FSIC Large Format Interchangeable Core, is Sold Less Core,  has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in 626 Satin Chrome Finish.

ND Series Electrified Lever Locks

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

The electrified ND is ideally used in:

• High-traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Key Features
All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL, or EU, with or without RX
• Six electrified functions for application flexibility
