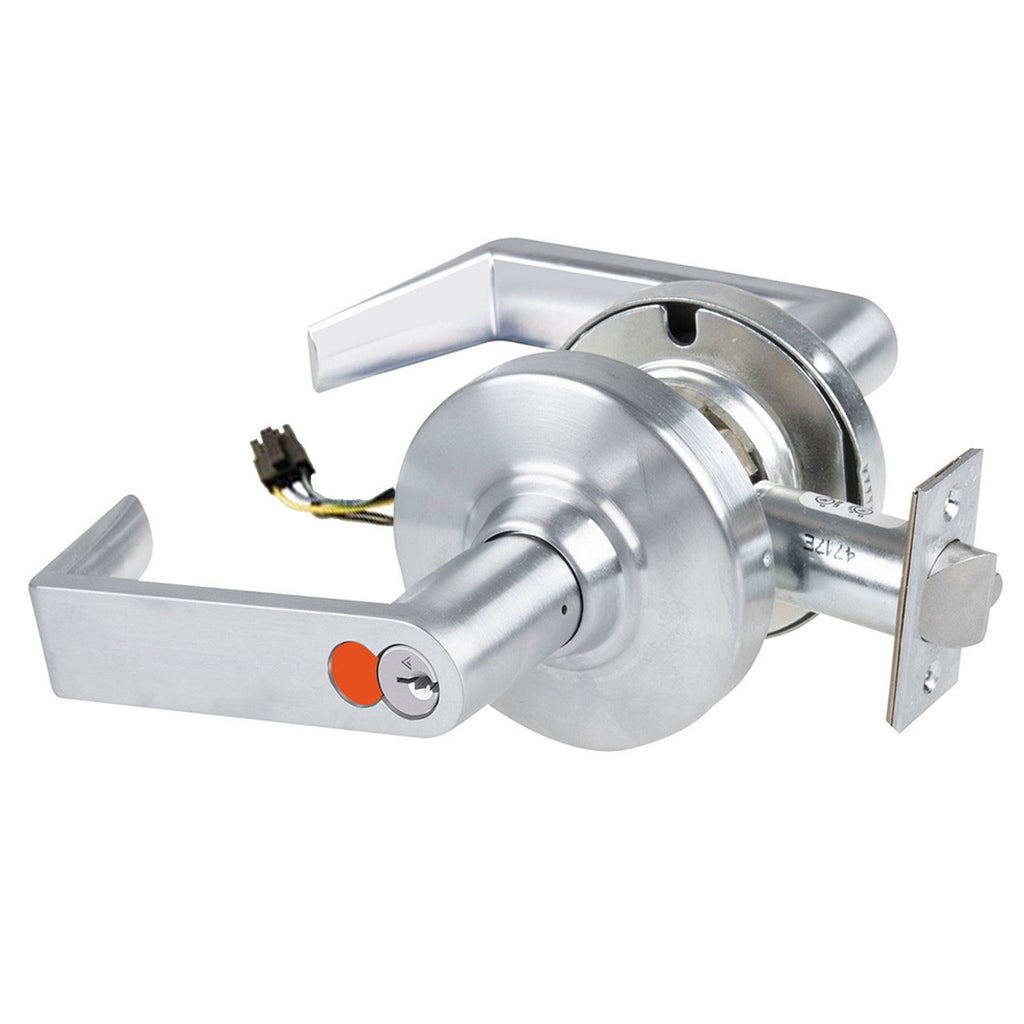

The Schlage ND80-TD-EU-RHO-626 is an Electrified Cylindrical Lock, in Storeroom Function, that is for use with 12V or 24V DC, has a Fail Secure feature, has a Rhodes Lever, a 2-3/4" Backset,i s FSIC Prep and comes with a Construction Core, and comes n a Satin Chrome Finish.

ND Series Electrified Lever Locks

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

The electrified ND is ideally used in:

• High-traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Key Features

All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
• Six electrified functions for application flexibility
