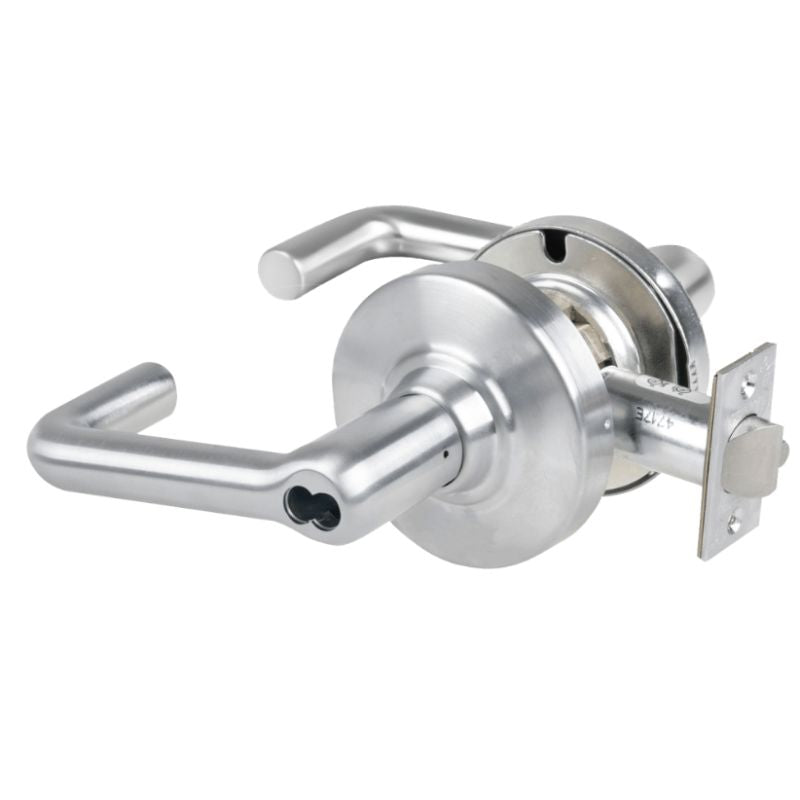

Schlage ND73BD TLR 626 Cylindrical Corridor Lockset, Tubular Lever, SFIC Small Format Interchangeable Core, Less Core, 2 3/4 Backset, 4 7/8" Strike, Grade 1, Non-Handed, US26D/626 Satin Chrome Finish
Schlage ND73BD Cylindrical Corridor Lockset with a SFIC Small Format Interchangeable Core and Tubular(TLR) Lever. It comes with a Grade 1 certification, 2 3/4" backset, 4 7/8" strike, and a non-handed design. The satin chrome finish is in US26D/626.
Corridor Function - Locked or unlocked by key from outside. Push-button locking from inside. Turn inside lever or close door to release button. When the outside lever is locked by key it can only be unlocked by key. Inside lever always free for immediate egress.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
