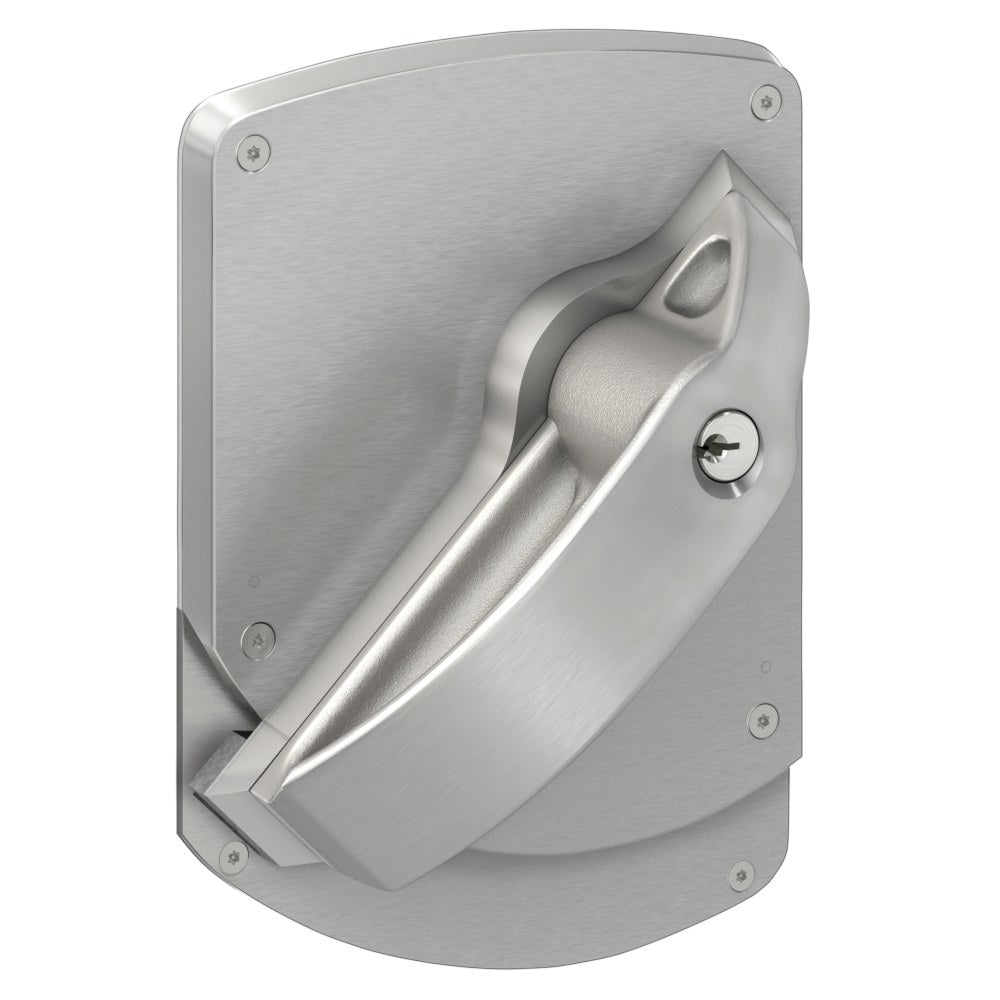

Schlage ND70PD-HSLR-630 Classroom Lock, High Security Ligature Resistant Trim, Sch C Keyway Keyed Random, 2 Keys, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Satin Stainless Steel Finish

The Schlage ND70PD-HSLR-630 Classroom Lock features a High Security Ligature Resistant Trim and a "C" Keyway for added security. It comes with 2 keys, a 2 3/4 backset, and a 4 7/8 strike, and is Grade 1 certified. The lock is finished in Satin Stainless Steel.

Features and Benefits

• The highest level of ligature resistance to positively contribute to healing environments

• Cylindrical and mortise options

• “Paperclip Protection” designation as determined by NYS-OMH testing

• Recommended for low, medium or high risk areas

• ADA Compliant - ”no pinch, no grasp”

• Variety of mortise and cylindrical functions available, including electrified

• Supplied with Torx® security screws

• Available in 630 finish

• BAA compliant

• Locks are ANSI/BHMA Grade 1 certified

• UL Listed 3-hour

ND Series Lever Locks

Performance beyond Grade 1

The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.

Comprehensive offering for every opening

Mechanical, wired electrified and wireless electronic solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership.

World-class design

A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any applications.

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

• Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks

• 31 mechanical functions

• Nine lever designs, two rose designs

• 10 available finishes

• Supports standard, SFIC and FSIC cylinder formats

• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437

• Support for 10 non-Schlage cores
