| Function | 50 Entrance Office LocK |
| Function Family | Entrance |
| ANSI Function |
F82 - Entry |
| Lever/Knob Design | ATH Athens Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Cylinder Type |
Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-5/8 In. to 2-1/8 In. |
| Std. Latch Number | 13-247 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4 In. |
| Latch Bore Diameter | 1 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
| Manufacturer | Schlage |
| SKU | ND50PD ATH |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |

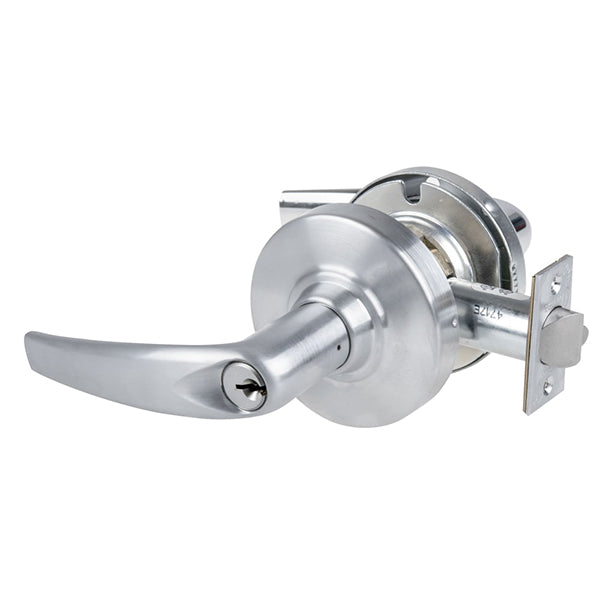

The Schlage ND50PD-ATH is a Cylindrical Entrance/Office Lock, with an Athens Lever, is available in Schlage C Keyway or S123 Keyway, is Keyed Different, comes with 2 Keys, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in multiple finishes.
Entrance/Office Function - push-button locking. Push-button locks outside lever until it is unlocked with key or by turning inside lever.
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
