Description

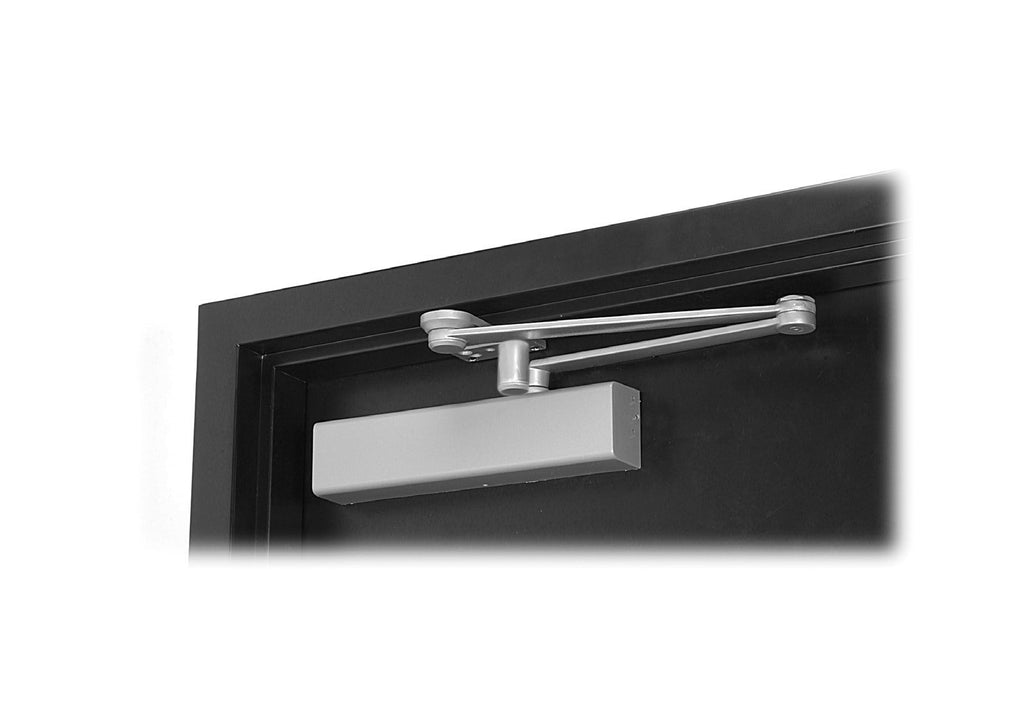

Norton CLP8501T Architectural Door Closer with Thumbturn CloserPlus Hold Open Arm - Multi-Size 1 thru 6.
The Norton CLP8501T CloserPlus Architectural Door Closer with Thumbturn CloserPlus ® Hold Open Arm - Multi-Size 1 thru 6, Norton Door Controls Door Closer CLP8501-T Is A Grade One Heavy Duty Surface Mounted Commercial Door Closer That Is Used In High Traffic Areas.
Features Norton CLP8501T "Closerplus Hold Open Arm"
- Tri-Style ® packaging standard (regular arm, top jamb, and parallel arm mounting)
- Staked valves
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- All standard arm applications (with slim, full, or metal covers) allow doors to swing 180 degrees, conditions permitting
- Shipped with full plastic cover
- Full-size template
- Hold Open
- CloserPlus ® arm
Specifications
| Dimensions: | 1-1/4" (32mm) diameter piston 5/8" (16mm) diameter pinion journals 2-1/8" (54mm) projection (standard covers) |
| Handing: | Non-Handed |
| Material: | Cast aluminum body |
| Power Spring Size: | Adjustable spring sizes 1 through 6 |
| Optional Features: | - Metal, architectural plastic, or architectural metal covers - Lead lined metal cover - suffix MLL - Delayed action - Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus ®, CloserPlus Springs Unitrol ® - Slide Tracks: push or pull side mounting |
| Warranty: | 10-year limited |
| Manufacturer: | Norton |
Certifications
| ANSI/BHMA: | A156.4, Grade 1 certified |
| UL: | UL10C compliant for positive pressure |
| ADA: | ADA Compliant |
