Description

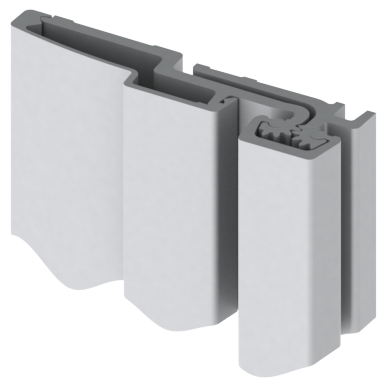

Hager Roton 780-210HD Full Surface Heavy Duty Continuous Geared Hinges - 83"
Heavy Duty Full Surface Hinge is 83" tall and geared.
Features
- Can be used with any door and frame material
- Security molding
- 1/32" (1 mm) inset
Specifications
| Materials: | Aluminum 6063-T6 |
| Clearance: | 1/32" ( 1 mm) minimum recommended for the hinge side Plus standard lockside clearance 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance |
| Fasteners: | Drill-Kwik ® screws and sex bolts |
| Length: | 83" (2108 mm) |
| Door Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
| Frame Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
| Fire Rating: | Up to 3 hr. metal and 90 min. wood composite(with screws) When ordering, must specify if UL stamp is required |
| Warranty: | All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty |
| Manufacturer: | Hager |
