Corbin Russwin ML2030-CSA-LC Privacy Bedroom or Bathroom Mortise Lock, Citation Lever, A Rose, Less Cylinder

  • SKU: ML2030CSA626

Corbin Russwin ML2030-CSA-LC Privacy Bedroom or Bathroom Mortise Lock, Citation Lever, A Rose, Less Cylinder

  • SKU: ML2030CSA626
Sale priceDhs. 2,403.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Corbin Russwin ML2030-CSA-LC Privacy ...
Quantity
+
Sale priceFrom Dhs. 2,403.00
Corbin Russwin Rim Cylinders - Multip...
Quantity
+
Sale priceFrom Dhs. 515.00
Total

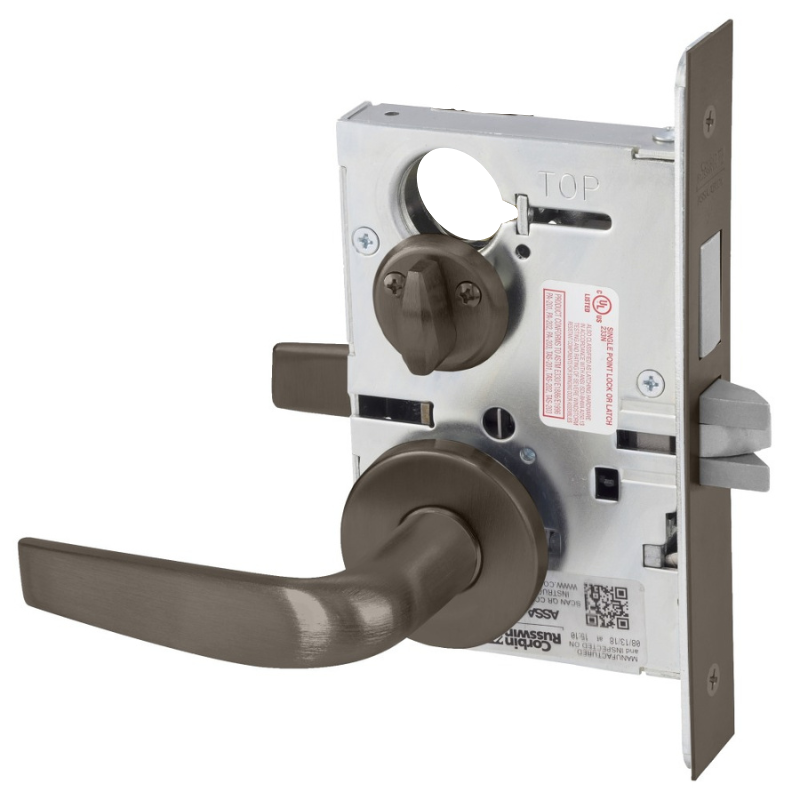

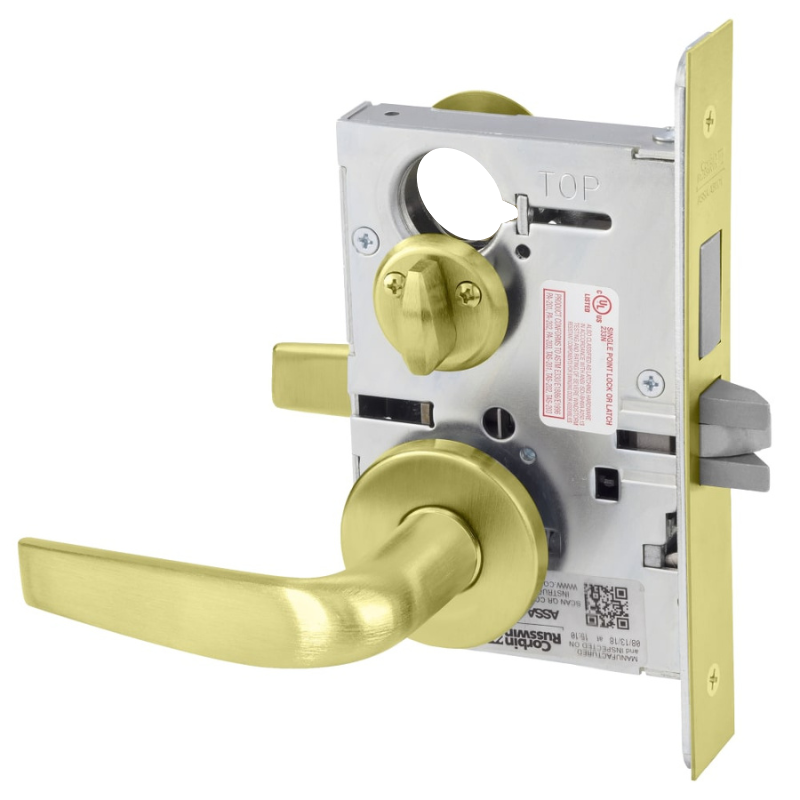

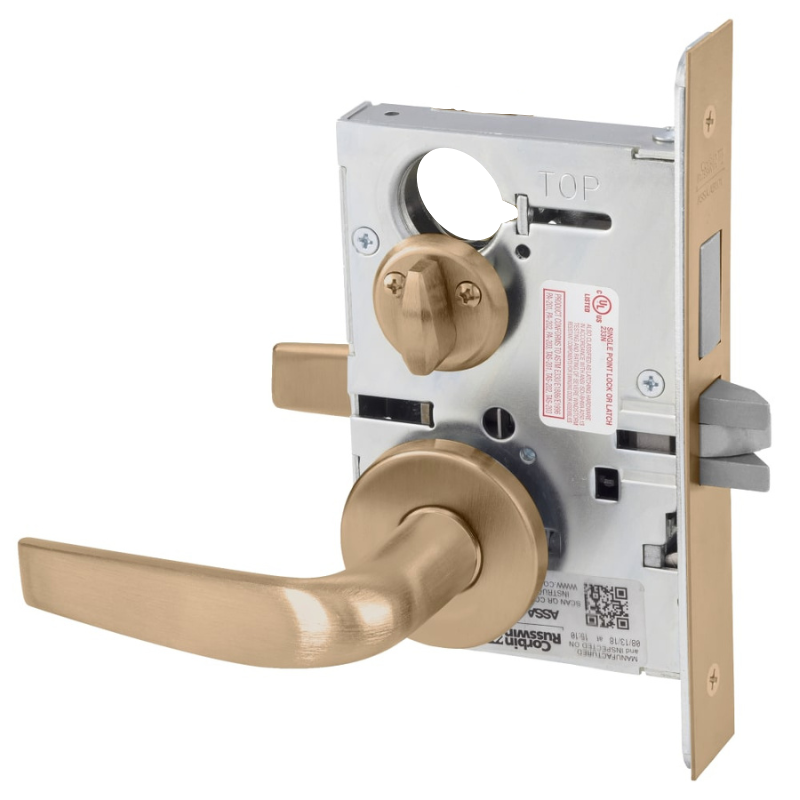

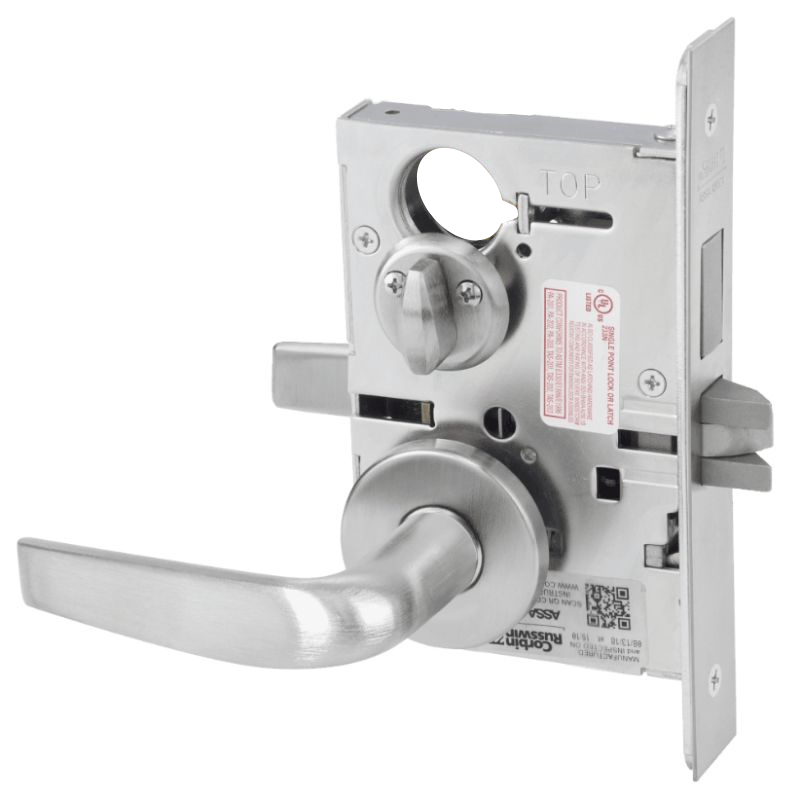

Corbin Russwin ML2030-CSA Mortise Lever Lockset - Privacy Bedroom or Bathroom Function, Citation(CS) Lever, A Rose

  • CS Lever, A Rose
  • Privacy Bedroom or Bathroom
  • Latchbolt by grip either side unless outside grip locked by thumbturn.
  • Deadbolt by thumbturn grip inside or by emergency release tool outside.
  • Inside grip simultaneously retracts latchbolt and deadbolt and unlocksoutside grip.
  • Not available with M19S or M19SN.

Corbin Russwin ML2000 Series Mortise Locks

Expertly engineered for high-traffic commercial, institutional, industrial, and government use, the Corbin Russwin Mortise Trim features a Grade 1 mortise lock with a Quick Reversible latchbolt and 1" stainless steel deadbolt. Its heavy-gauge steel construction and 10-year warranty guarantee reliable and versatile use in offices, schools, hospitals, hotels, and other high-use settings.

Key Advantages

  • Patented Quick Reversible feature enables reversal of hands without disassembling the lock case
  • Security trims provide a vandal-resistant barrier
  • Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.
  • Provides life safety and security in a single door prep, saving the additional cost of a deadlock
  • Thru-bolted trim designs for proper alignment and increased security Multi-function lockbody
Vendor
Manufacturer Corbin Russwin
SKU ML2030 CSA
Grade Grade 1
Installation
Origin USA
Unit of Measure Each
Application Complete Lock
Base Material Bronze
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Function
30-Privacy Bedroom or Bathroom
ANSI Function
F19 - Privacy/Bed/Bath
Lever/Knob Design
CS - Citation
Rose/Escutcheon Design
A - Rose
Handing Field Reversible
Door Thickness 1-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latchbolt, 1" Deadbolt
Std. Strike Number 236L72018
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock

Cylinder Mortise Handing Chart
