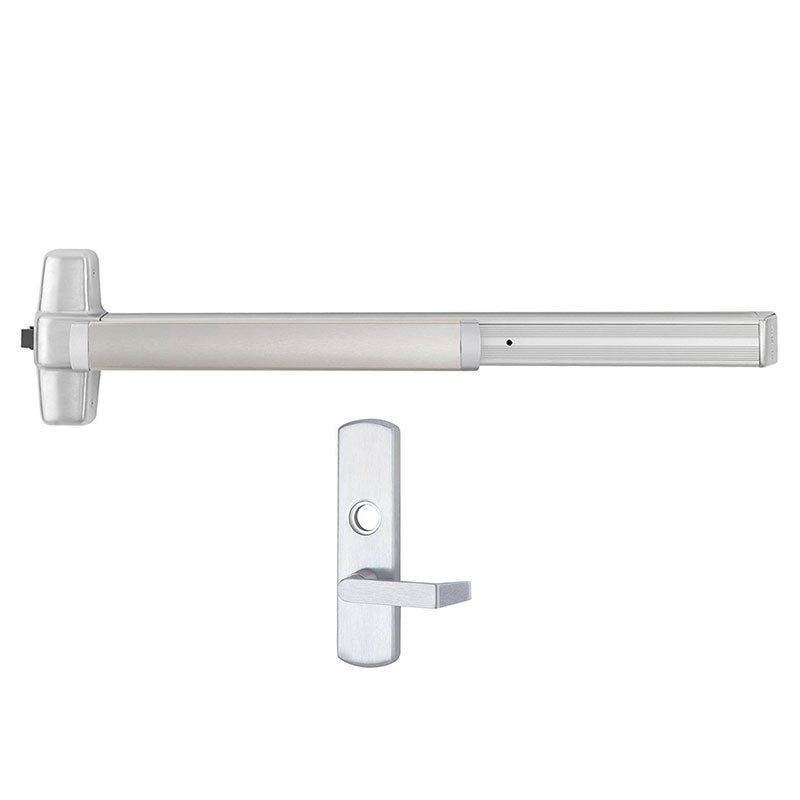

99 Series Rim Exit Device
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
| Manufacturer | Von Duprin |
| SKU | QEL99L06 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 1 Year |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Classroom |
| Device Length | 36" or 48" |
| Hand | Field Reversible |
| Electric Options | Motorized Latch Retraction |
| Voltage | 24 VDC |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 996L-06-R/V |
| Includes Cylinder(s) | No |
| Cylinder Type | Rim |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal or Wood |
| Door Width | 26" - 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
