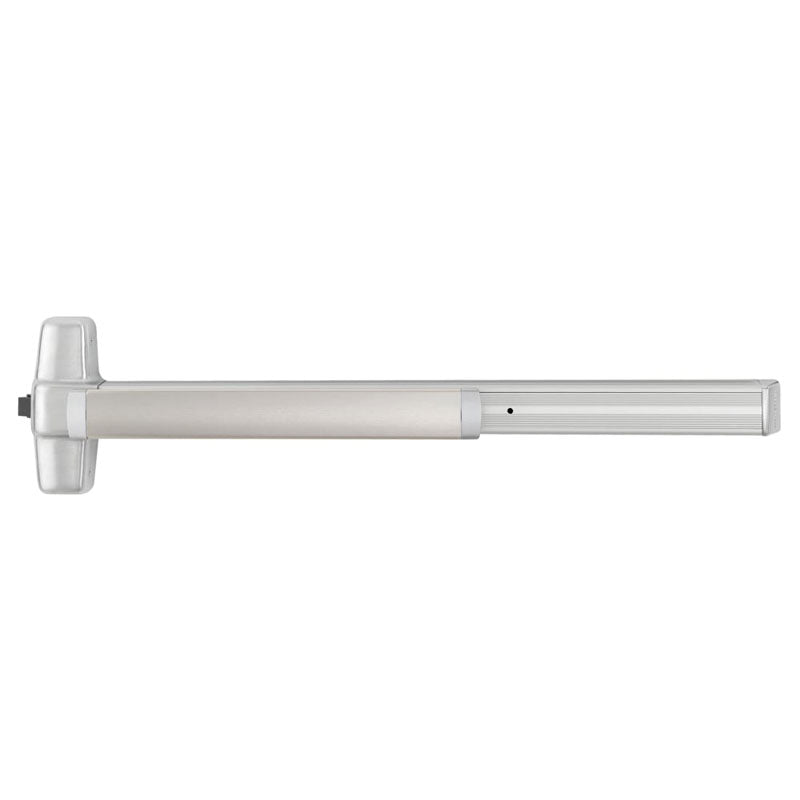

Von Duprin AXPA99EO-626 Rim Panic Device, Exit Only, Less Trim, CA Accessible, Pa Pushbar Armor, Hex Key Dogging, Grade 1, Non-Handed, US26D Satin Chrome Finish
This Von Duprin AXPA99EO-26D Rim Exit Device features a Wide Stile Armour Pushpad and comes in a 36" bar size. It is designed for exit-only use and is accessible via CA. It includes Hex Key Dogging and has a Grade 1 Heavy Duty rating.
99 Series Rim Exit Device
Heavy-duty exit devices with grooved mechanism cases for all types of single and double-door applications.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder), or SS (signal switch).
- Device functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
