Description

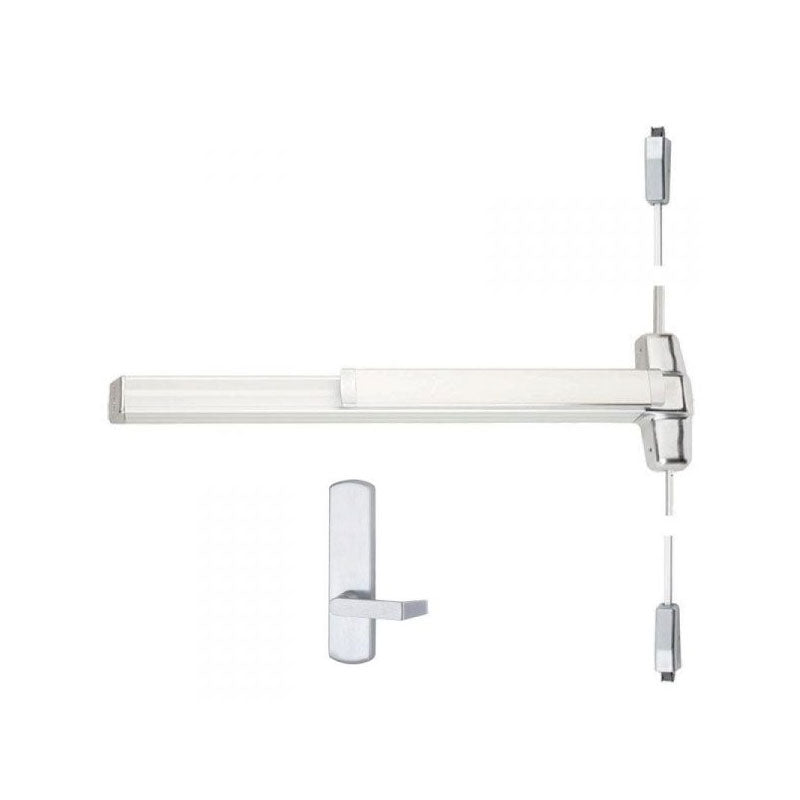

Von Duprin 9927-L-BE-06-F Fire Rated Surface Vertical Rod Exit Device, Passage Function, 06 Lever with Escutcheon, Grade 1, Wide Stile Pushpad, less dogging, for 84" Door Height
Features 996L-BE-R/V-06 Lever Trim
- Lever - blank escutcheon
- Always operable, no cylinder
- ANSI Function 14
- Escutcheon Plate Size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Handed/Field Reversible
9927 Series Surface Vertical Rod Exit Device
9927 series surface vertical rod exits are made for high-traffic environments.
- Device functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from the device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
- Door undercut 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Product Specs
| Manufacturer | Von Duprin |
| SKU | 9927L-BE-06-F |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.3 2014, Grade 1 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | Yes |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Passage |
| Device Length | 36" or 48" |
| Hand | Field Reversible |
| Dogging Options | Less Dogging |
| Top Strike | 299 |
| Strike Bottom | 304L |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 996L-BE-06-R/V 26D |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 3-11/16" |
| Door Material | All Types |
| Door Width | 28" - 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
