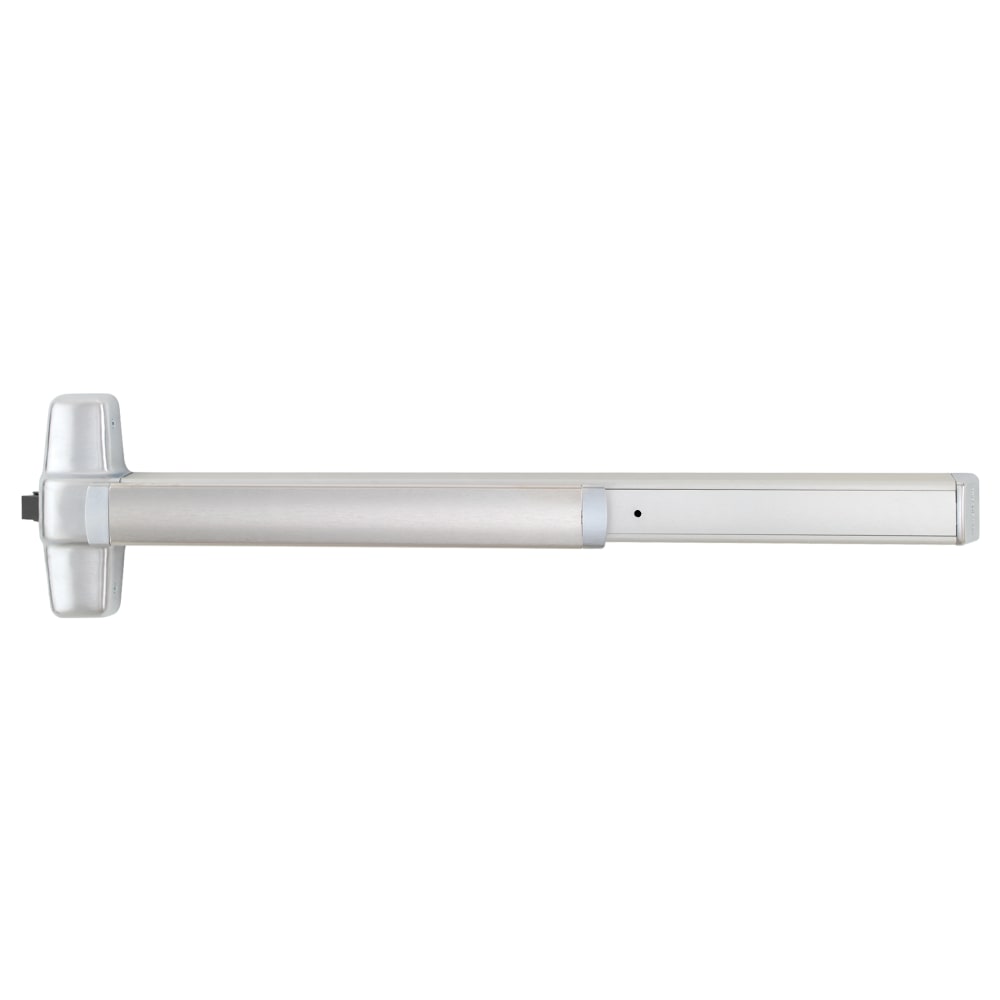

Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder

  • SKU: 98NLOP3628
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder
All VON DUPRIN Products

Von Duprin 98NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit, Less Cylinder

  • SKU: 98NLOP3628
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 5,103.00/ea
Finish: US28-628 Satin Aluminum
Length: 3' - (28" - 36" Wide Doors)

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Von Duprin 98NL-OP Rim Panic Exit Dev...
Quantity
–
+
From Dhs. 5,103.00
Schlage Rim Cylinders - Multiple Keyw...
Quantity
–
+
From Dhs. 343.00
Command Access Technologies MLRK1-VD ...
Quantity
–
+
Dhs. 1,769.00
Total

Von Duprin 98NL-OP Rim Panic Device, Wide Stile Pushpad, Night Latch Cylinder Assembly, Less Cylinder, Comes with 110NL Mounting Kit

  • Available in 3' or 4' lengths
  • Specify 110MD-NL for Metal Doors & 110WD-NL for Wood Doors
  • Non-Handed

NL-OP Night Latch Function

  • Key retracts latchbolt, pull required
  • Takes Rim Cylinders.
  • OP - Optional Pull to use with a different manufacturer pull trim

98 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Manufacturer Von Duprin
SKU 98NL-OP
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 3 Years
Fire Rated No
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Night Latch Function
Device Length 36" or 48"
Hand Non-handed
Dogging Options Hex Key Dogging
Includes Trim Yes
Trim Type Cylinder Only
Trim Part  110MD-NL  - Metal Doors
110WD-NL - Wood Doors
Includes Cylinder(s) No
Cylinder Type Rim Cylinder
Minimum Stile Size 4-1/2"
Door Material Metal or Wood
Door Width 36" Bar - 28" - 36" Wide Doors
48" Bar - 34" - 48" Wide Doors
Door Thickness 1-3/4" - 2-1/4"
Fire Rated No
Reversible No
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
