Description

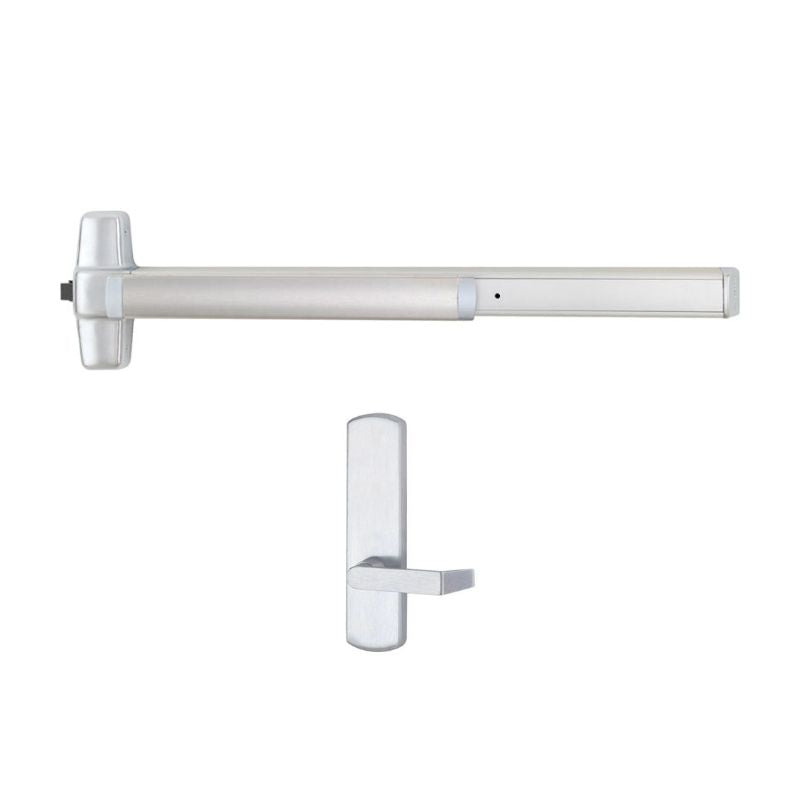

Von Duprin 98L-BE-06 Grade 1 Rim Exit Device, 36", Passage Function, Hex Key Dogging, 06 Lever with Blank Escutcheon, 1-1/4" Mortise & Rim
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available
Product Specs
| Manufacturer | Von Duprin |
| SKU | 98L-BE-06 26D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.3 2014 |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | No |
| ADA Compliance | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Classroom |
| Device Length | 36" or 48" |
| Hand | Right-Hand Reverse or Left Hand Reverse |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Blank Escutcheon |
| Trim Part No. | 996L-BE-06-R/V 26D |
| Includes Cylinder(s) | No |
| Cylinder Type | 1 1/4" Mortise & Rim |
| Minimum Stile Size | 4 1/2" |
| Door Material | Wood or Metal |
| Door Width | 28" to 36" or 34" to 48" |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
