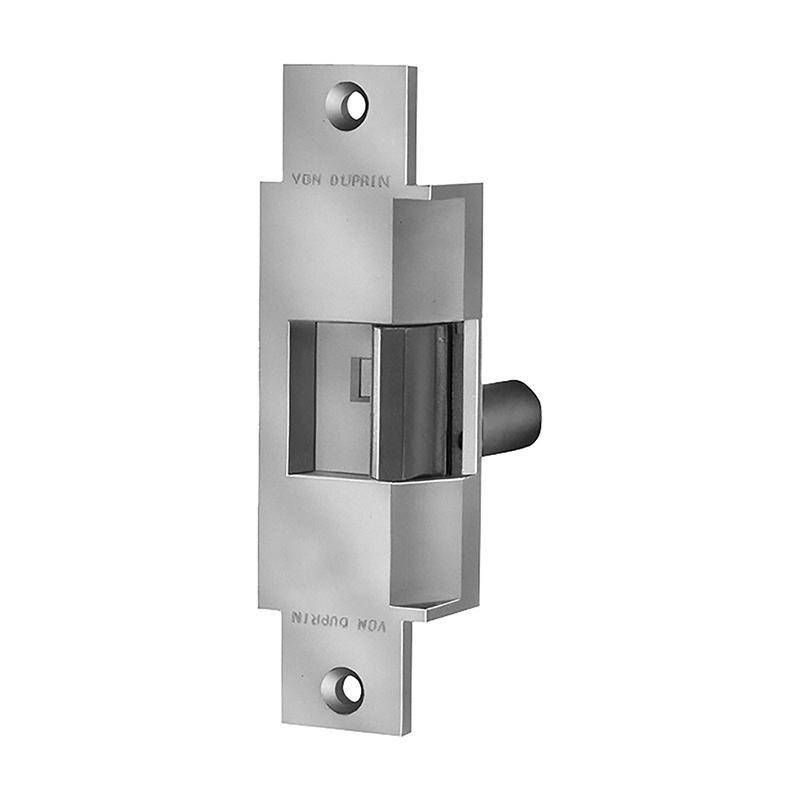

Von Duprin 6223-24V-US32D-CON Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Secure, Allegion Connect, US32D/630 Satin Stainless Steel

  • SKU: 622324VUS32DCON

Von Duprin 6223-24V-US32D-CON Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Secure, Allegion Connect, US32D/630 Satin Stainless Steel

  • SKU: 622324VUS32DCON
Sale priceDhs. 3,144.00/ea
In Stock
In Stock

 Von Duprin 6223-24V-US32D-CON Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Secure, Allegion Connect, US32D/630 Satin Stainless Steel Finish

The Von Duprin 6200 Series is a heavy-duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and is designed to withstand abuse. The 6223 is designed for mortise locks without a deadbolt and cylindrical locks to be mounted in the inactive leaf of a pair of doors

Function Electrically Unlocked (Fail Secure)
Operating Voltage 24VDC
Amp Draw 330mA
Keeper Size Pullman Keeper
Configuration Centered
For Use With Cylindrical/Mortise Locks
Faceplate Size 6" x 1-1/4"
Frame Depth 4-3/4"
Ramp Cut Out 3-7/8"
Fire Rated Yes
Frame Application Hollow Metal, Aluminum, or Wood
Product Type Electric Strikes
