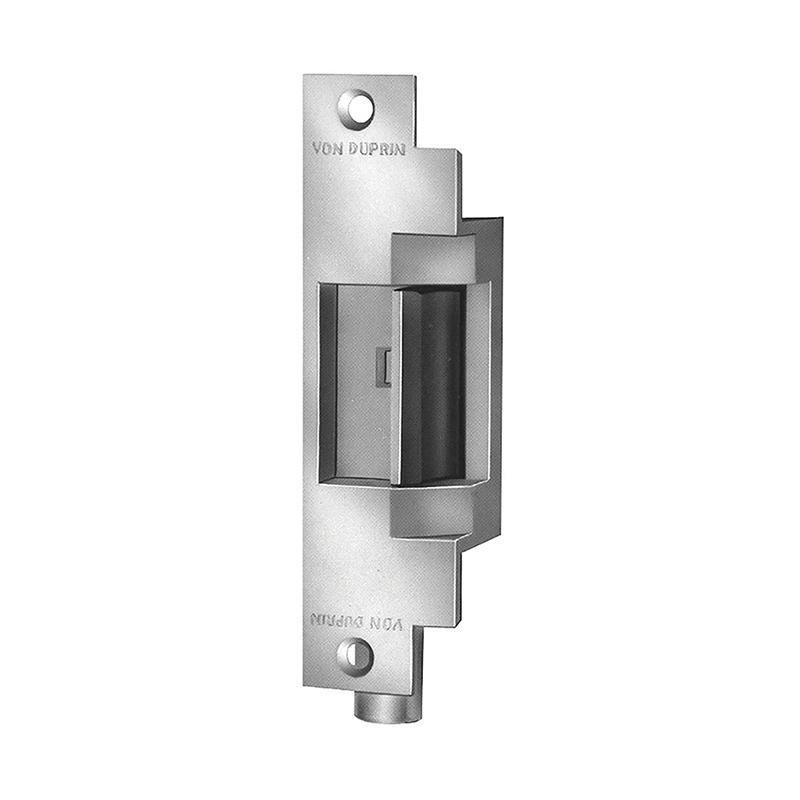

Von Duprin 6212 24V US32D CON Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Secure, Allegion Connect, US32D/630 Satin Stainless Steel

  • SKU: 621224VUS32DCON

Von Duprin 6212 24V US32D CON Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Secure, Allegion Connect, US32D/630 Satin Stainless Steel

  • SKU: 621224VUS32DCON
Sale priceDhs. 3,329.00/ea
In Stock
In Stock

 Von Duprin 6212 24V US32D CON Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Secure, Allegion Connect, US32D/630 Satin Stainless Steel Finish

The Von Duprin 6200 Series is a heavy-duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1, and is designed to withstand abuse. The 6212 is designed for mortise locks without a deadbolt and cylindrical locks in single-door applications.

Function Electrically Unlocked (Fail Secure)
Operating Voltage 24VDC
Amp Draw 330mA
Keeper Size Pullman Keeper
Configuration Centered
For Use With Cylindrical/Mortise Locks
Faceplate Size 6-3/8" x 1-1/4"
Frame Depth 1-21/32"
Ramp Cut Out 3-3/8"
Fire Rated Yes
Frame Application Hollow Metal or Aluminum
Product Type Electric Strikes
