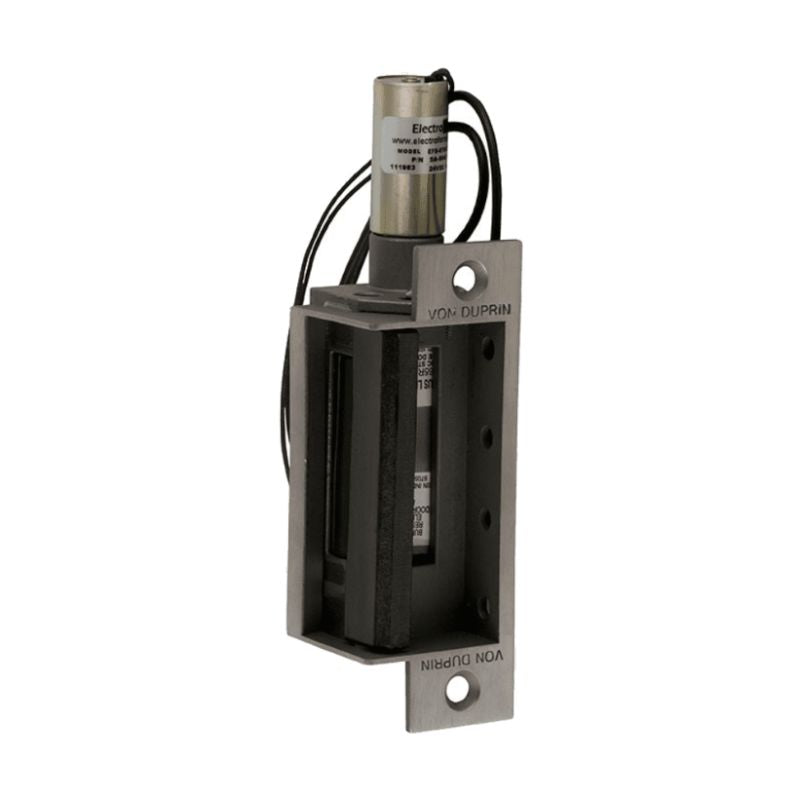

Von Duprin 6210-24V-US32D Electric Strike, Fail Secure (Electrically Unlocked) 24V, 4-7/8" x 1-1/4" Faceplate, Fire Rated, For use with Mortise Locks on Single Doors, Hollow Metal or Aluminum Frame, Grade 1, US32D Satin Stainless Steel Finish

The Von Duprin 6210-FSE-24V-US32D Electric Strike is designed for fail-secure operation (electrically unlocked) and is ideal for use with mortise locks on single doors. It has a 24 VDC power requirement and features a 4-7/8" x 1-1/4" faceplate made of fire rated, grade 1 US32D satin stainless steel. This electric strike is compatible with both hollow metal and aluminum frames.

6200 Series Electric Strikes

Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.

• Non handed design provides greater flexibility
• Strike box is adjustable to compensate for misalignment of the door or frame
• Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
• ANSI 156.5 Grade 1, 1500 lb hold-force rated
• UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
• Six finishes available to suite with existing hardware
• Durable stainless steel construction
• 24 VDC standard with 12 VDC and AC operation optional
• Meets BHMA A156.31, Grade 1 for endurance and strength
• Static strength 1300 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000,000 cycles
