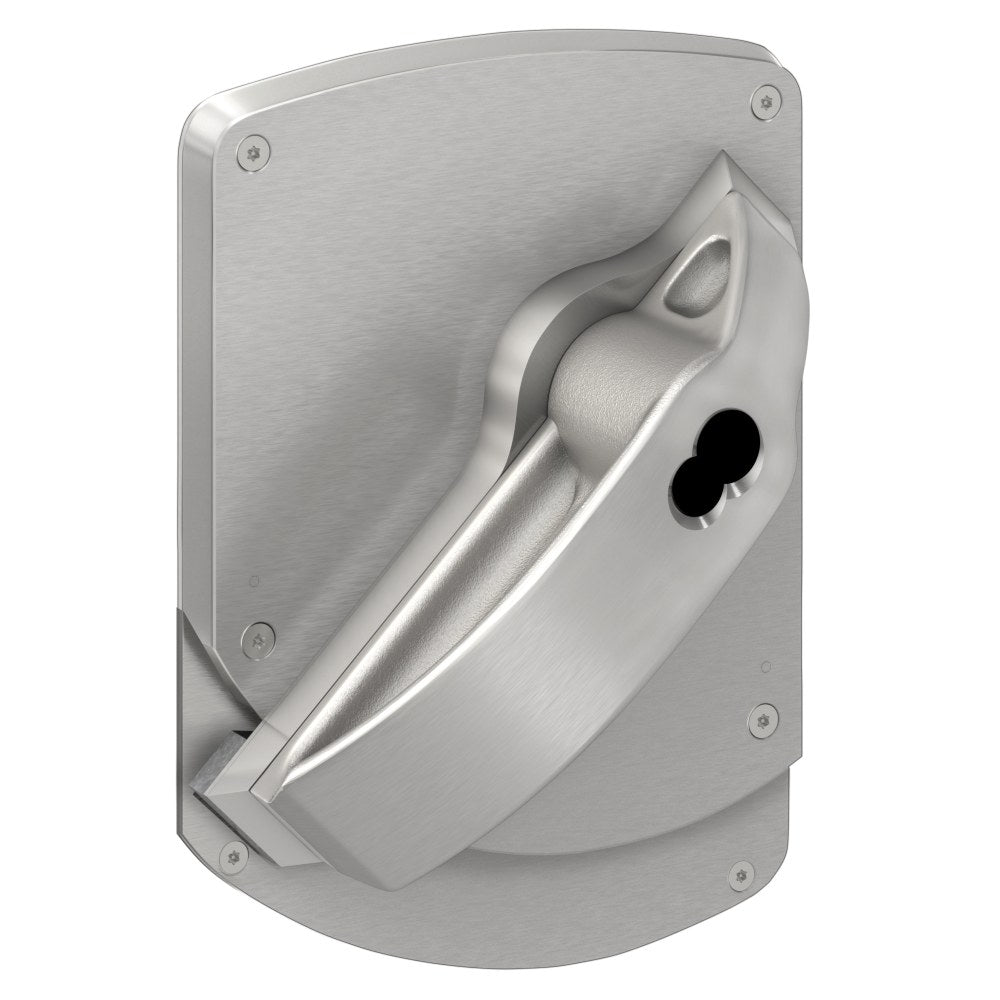

Schlage ND80BDEL-HSLR-630 Electrically UnLocked Fail Safe Storeroom Lock, High Security Ligature Resistant Trim, SFIC Prep Less Core, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Satin Stainless Steel Finish
Schlage ND80BD-EU-HSLR-630 Electrically Storeroom Lock, Non-Keyed, Satin Stainless Steel, features a Fail Safe design for maximum security. This Grade 1 lock also boasts a High Security Ligature Resistant Trim and comes equipped with SFIC Prep Less Core and a 2 3/4" backset. It is finished with a resilient Satin Stainless Steel for added durability.
Features and Benefits
- The highest level of ligature resistance to positively contribute to healing environments
- Cylindrical and mortise options
- “Paperclip Protection” designation as determined by NYS-OMH testing
- Recommended for low, medium or high risk areas
- ADA Compliant - ”no pinch, no grasp”
- Variety of mortise and cylindrical functions available, including electrified
- Supplied with Torx® security screws
- Available in 630 finish
- BAA compliant
- Locks are ANSI/BHMA Grade 1 certified
- UL Listed 3-hour
Electrical Requirements
- Input Voltage: auto-detects 12V to 24V DC
- Max current draw: 0.24 amp @ ambient (240mA)
- Holding current: 0.01 amp (10mA)
- Temperature range: 15°F – 120°F (-18°– 49°C)
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
The electrified ND is ideally used in:
- High-traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building
Key Features
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL, or EU, with or without RX
- Six electrified functions for application flexibility
