Description

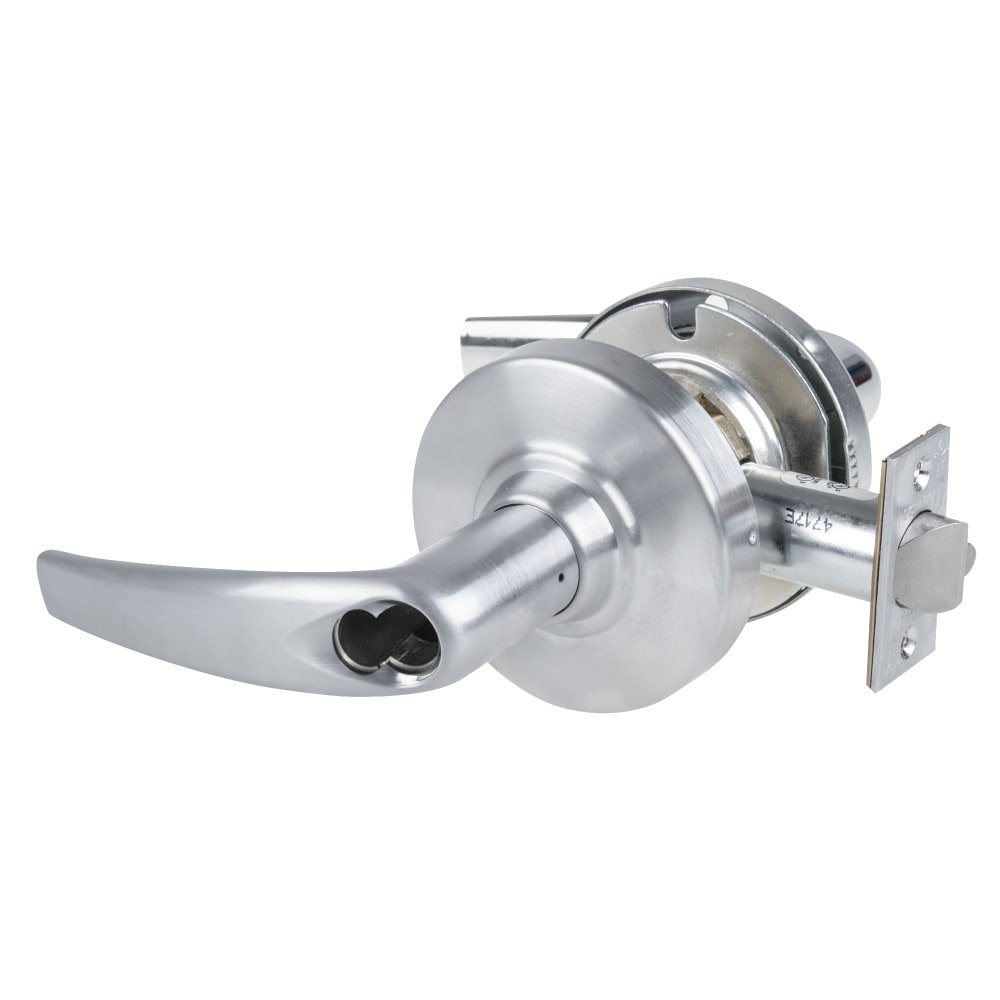

Schlage ND60JD-ATH-626 Vestibule Lock - Latch retracted by key from outside when the outside lever is unlocked by key in inside lever. The inside lever is always unlocked.
The Schlage ND60 heavy-duty vestibule lever lock for commercial, institutional, and industrial applications. Interior and exterior doors for schools/universities, hospitals/healthcare facilities, offices, retail, and government facilities.
Schlage ND60JD-ATH-626 Features
- Latch: 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
- Strike: 1/4" x 4 7/8", ANSI, Square corner, no box
- Cylinder Sold Separately: 6-Pin solid brass keyed 6-pin, C123 keyway (option above covers the cost of the cylinder)
- Door Range: Standard Lock Functions: 1 5/8" - 2", Vandlgard Lock Function: 1 5/8" - 1 7/8"
Schlage ND60JD-ATH-626 Specifications
Handing: | All ND-Series lever locksets are non-handed. |
Door Thickness: | 1-5/8" to 2-1/8" (41mm - 54mm) standard including Vandlgard functions. 1-3/4" - 2" for function D85. See accessories for spacers required for 1-3/8" doors. |
Backset: | 2-3/4" (70 mm) standard. 2-3/8", 3-3/4" and 5" (60 mm, 95 mm, 127 mm) optional. |
Lock Chassis: | Zinc plated for corrosion resistance. |
Latchbolt: | Steel, 1/2" (12mm) throw, deadlocking on keyed and exterior functions. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors. |
Cylinder: | 6-pin Everest C123 keyway standard |
Keying Features Available: | Interchangeable core and Primus high-security cylinders. Master keying, grand master keying, and construction keying. |
Keys: | Two patented nickel silver keys per lock. |
Warranty: | Seven-year limited |
Schlage ND60JD-ATH-626 Certifications
ANSI: | Meets A156.2 Series 4000, Grade 1 Meets A117.1 Accessibility Code |
Federal: | Meets FF-H-106C Series 161. |
California State Reference Code: | All electrified locking (fail-safe, unlocked by switch or power failures) functions are accepted for use in New York City by the City of New York, Department of Buildings (MEA 24-04-E). All levers with less than 1/2" (64mm) return comply with California Fire Safety Codes. |
UL / cUL: | All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol. |
ADA Compliant: | Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. |
