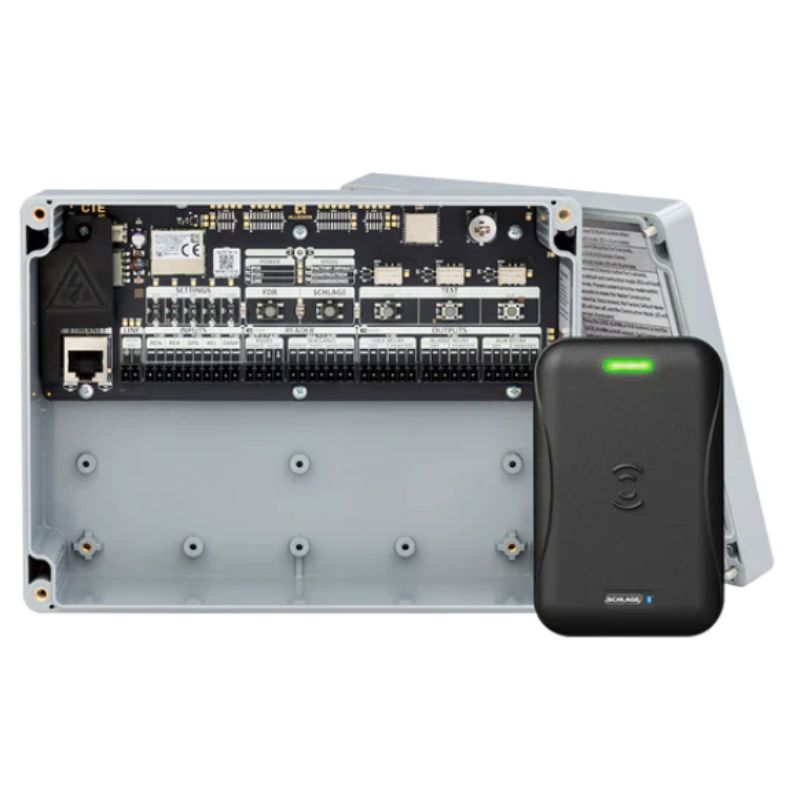

Schlage Electronics CTE-MTB15-485-B CTE ENGAGE Single Door Controller with Mobile Enabled Multi-Tech Single Gang Reader Kit, Direct RS-485 Connection, 125 kHz Proximity Card, 13.56 MHz Smart Card, FIPS 201-2 Compliant, Black Finish
CTE-MTB15-485-B-CTE Engage Single Door Controller from Schlage Electronics offers a Mobile Enabled Multi-Tech Mullion Reader Kit with a Direct RS-485 Connection. This advanced system supports both 125 kHz Proximity Cards and 13.56 MHz Smart Cards, meeting FIPS 201-2 compliance standards. The sleek Black Finish adds a sleek touch to any entrance.
- Enables around the door solution with ENGAGE functionality
- Built-in Bluetooth and Wi-Fi
- Complete with Schlage MTB11 or MTB15 reader (Required reader interface RS-485)
- No-Tour capable
- Flexible connectivity options: manage with ENGAGE web and mobile apps or with one of our PACS providers
- Inputs: door position (DPS), request to exit (REX), request to enter (REN), remote
release (REL)
- Outputs: lock relay , alarm relay, auxiliary (Aux) relay
- Input Power: 12 or 24 VDC or Power over Ethernet (PoE/PoE+)
- Provides DC output power and dry control contacts
