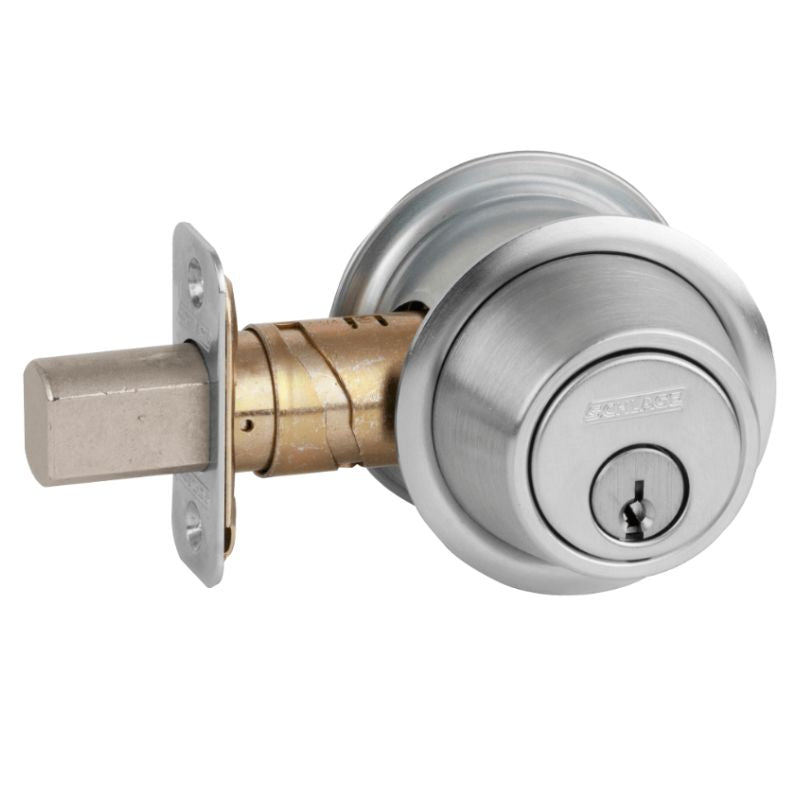

Schlage B560-P-626 Single Cylinder Deadbolt, Schlage "C" Keyway, Satin Chrome

  • SKU: B560P6626

Schlage B560-P-626 Single Cylinder Deadbolt, Schlage "C" Keyway, Satin Chrome

  • SKU: B560P6626
Sale priceDhs. 624.00/ea
In Stock
In Stock

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Schlage B560-P-626 Single Cylinder De...
Quantity
+
Sale priceDhs. 624.00
Ives 5BB1 4.5X4.5 Ball Bearing Hinge
Quantity
+
Sale priceFrom Dhs. 217.00
Total

Schlage B560-P6-626 Single Cylinder Deadbolt, 6 Pin Cylinder, Schlage "C" Keyway, [2] Keys, Adjustable 2-3/8" and 2-3/4" Backset, Grade 2, Satin Chrome Finish

The Schlage B560-P-626 Single Cylinder Deadbolt features a 6 pin cylinder and Schlage "C" keyway, along with [2] keys. It also has an adjustable 2-3/8" and 2-3/4" backset, making it a grade 2 product with a satin chrome finish.

Schlage B500 Series Overview
Commercial Grade Deadbolts

A revolutionary new deadbolt that delivers higher security and tougher performance.

Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.

  • Adjustable backset with lock-in-place helix design

  • Integrated anti-pry shield protects latch

  • Thicker metal security strike back-up on jamb side

  • Security strike on jamb has third screw for stronger, deeper anchoring

  • Added space inside strike box for true deadlatch

  • Seamless steel latch construction along the entire length of the bolt housing

  • 10% larger diameter deadbolt

  • Zinc bolt with spinning hardened steel pin inside

  • Tapered front housing that can’t be unscrewed

  • Integrated trim piece for fewer pieces out of the box

  • Large, easy-to-use, ADA compliant thumbturn

  • Meets UL 10B andd UL 10C requirements

Manufacturer Schlage
SKU B560P 626
Grade Grade 2
Installation Commercial
Origin
Unit of Measure Each
Finish
Finish
626/US26D
Finish Description Satin Chrome


Function
560-Single Cylinder Deadbolt Lock
ANSI Function
E0152 - Single Cylinder Deadbolt
Cylinder Type
SFIC Prep Less Core
Door Thickness 1-5/8 In. - 2 In.
Std. Latch Number 12-287
Std. Latch Type Deadbolt
Std. Latch Backset Dim Adjustable 2-3/8 In. and 2-3/4 In.
Lock Face Size 2-1/4 In. x 1 In.
Bolt Projection 1 In.
Std. Strike Number 10-094
Std. Strike Type Flat
Std. Strike Height 2-3/4 In.
Std. Strike Width 1-1/8 In.
Dust Box None
Product Type Deadbolts
