Schlage ALX80J-SPA Storeroom Cylindrical Lock, Sparta Lever, FSIC Less Core

  • SKU: ALX80JSPA626
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 1,003.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX80J-SPA Storeroom Cylindri...
Quantity
–
+
From Dhs. 1,003.00
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
–
+
From Dhs. 348.00
Schlage 35-056-C Control Key Blank, E...
Quantity
–
+
Dhs. 47.00
Total

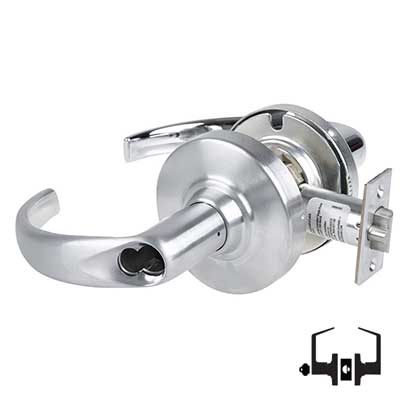

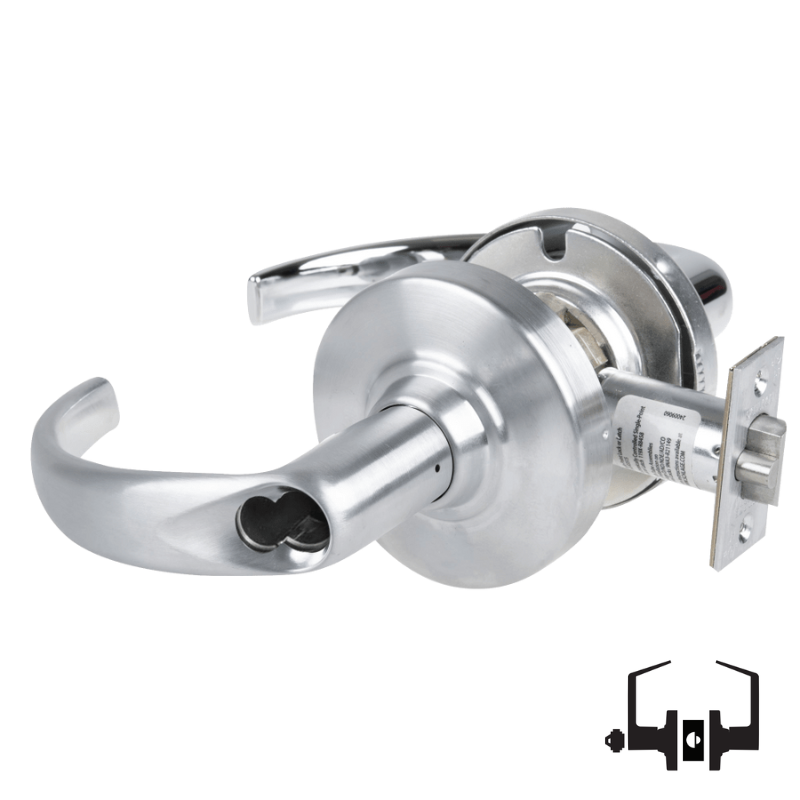

Schlage ALX80-J-SPA Storeroom Cylindrical Lock, Field Selectable Vandlgard, Sparta Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX80J-SPA is a Grade 2 storeroom cylindrical lock engineered for commercial applications requiring reliable access control. This non-handed unit features a Sparta lever and field-selectable Vandlgard protection, making it adaptable to various installation scenarios. It accepts Schlage's Large Format FSIC keyway and comes less core for flexible configuration. With a 2-3/4 inch backset and 4-7/8 inch strike, it integrates seamlessly into standard door frames. Ideal for storage areas, utility rooms, and restricted-access spaces where durability and security are paramount.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design SPA Sparta Lever
Lever/Knob Design Family Curved Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock

Product Cut Sheet
