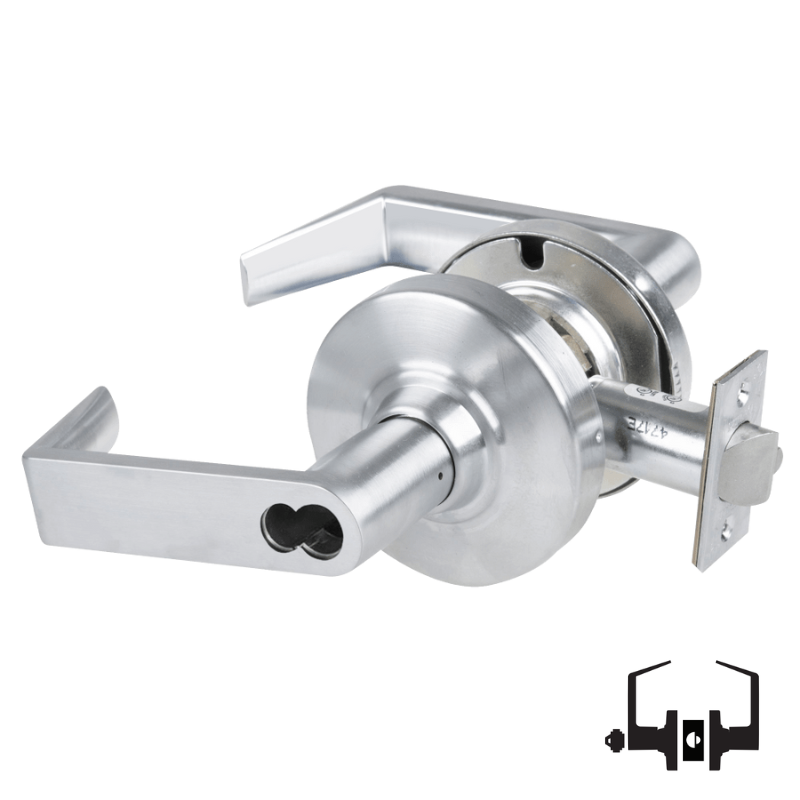

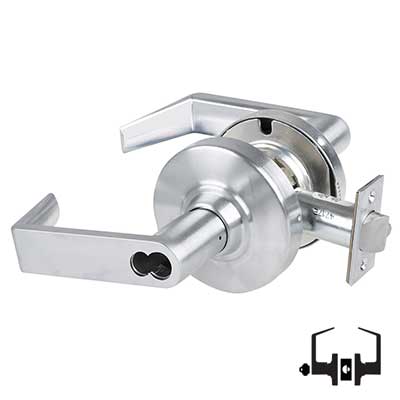

The Schlage ALX70B-RHO is a Cylindrical Classroom function lock, with a Rhodes Lever, with Field Selectable Vandlgard feature, accepts an SFIC Small Format Interchangeable Core, Sold Less Core, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.
Schlage ALX70 Classroom Lock - Key cylinder outside; plain lever inside; deadlatch. Key in outside lever locks or unlocks outside lever. Field selectable Vandlgard feature. Inside Lever always free for immediate egress.
ALX Series Grade 2 Cylindrical Lock
A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
Manufacturer | Schlage |
Grade | Grade 2 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL/cUL |
ANSI Number | A156.2-2011 Series 4000, Grade 2 |
Limited Warranty | 10 Years |
Fire Rated | 3 Hours {A} |
ADA Compliance | Yes |
Function | 70-Classroom Lock |
Function Family | Classroom |
ANSI Function |
F84 - Classroom |
Lever/Knob Design | RHO Rhodes Lever |
Lever/Knob Design Family | Straight Return Lever |
Rose/Escutcheon Design |
3-7/16" Rose Diameter |
Rose/Escutcheon Dimensions | Rhodes |
Cylinder Type |
SFIC Prep Less Core |
Num Pins | 6 to 7 |
Handing | Non-handed |
Door Thickness | 1-3/8 In. - 1-3/4 In. |
Std. Latch Number | 47267042 |
Std. Latch Type | Deadlatch |
Std. Latch Backset Dim | 2-3/4 In. |
Latch Bore Diameter | 7/8 In. |
Lock Face Size | 1-1/8 In. x 2-1/4 In. |
Bolt Projection | 1/2 In. |
Bore Hole Diameter | 2-1/8 In. |
Std. Strike Number | 47267101 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8 In. |
Std. Strike Width | 1-1/4 In. |
Screws | Combination |
Product Type | Cylindrical Lock |
