Schlage ALX50J-RHO Office Cylindrical Lock, Rhodes Lever, FSIC Less Core

  • SKU: ALX50JRHO626

Schlage ALX50J-RHO Office Cylindrical Lock, Rhodes Lever, FSIC Less Core

  • SKU: ALX50JRHO626
Sale priceDhs. 962.00/ea
In Stock
In Stock
Schlage Finish: 626 - Satin Chromium Plated

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Schlage ALX50J-RHO Office Cylindrical...
Quantity
+
Sale priceFrom Dhs. 962.00
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
+
Sale priceFrom Dhs. 335.00
Schlage 35-056-C Control Key Blank, E...
Quantity
+
Sale priceDhs. 45.00
Total

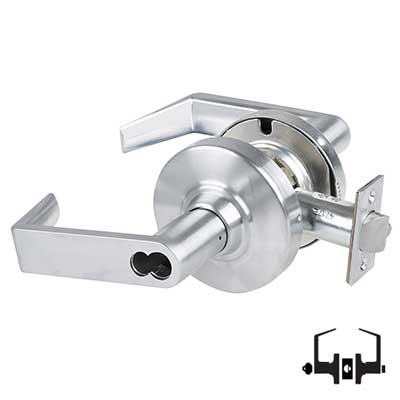

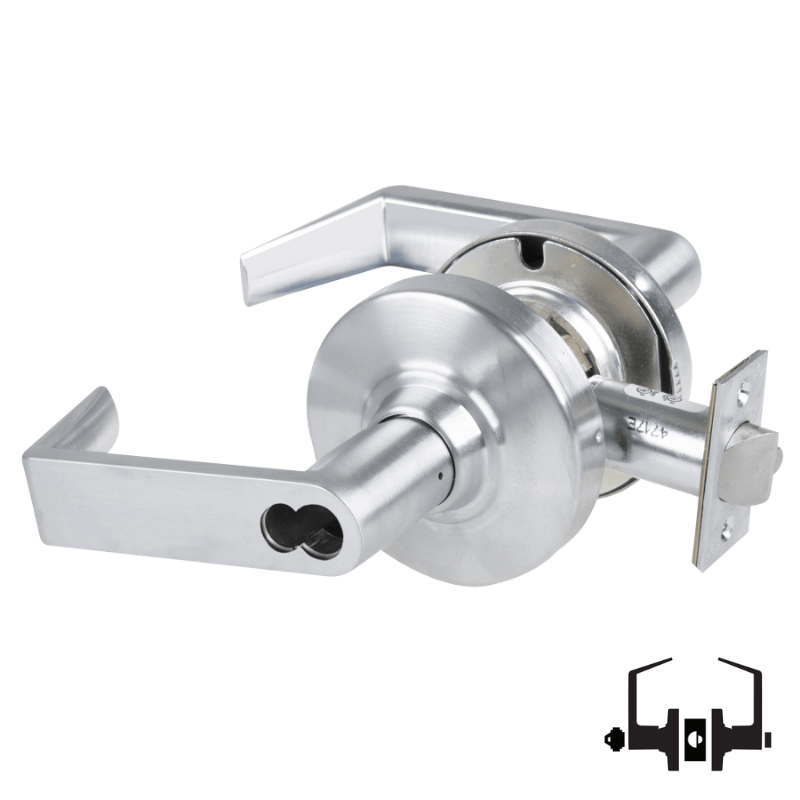

The Schlage ALX50J-RHO is a Cylindrical Office function lock, with a Rhodes Lever, with Field Selectable Vandlgard feature, accepts a Schlage FSIC Large Format Interchangeable Core, Sold Less Core, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX50 Entrance/Office Lock - Key cylinder outside; push button inside; dead latch. Inside push button locks outside lever. Unlock with key outside or by rotating inside lever. Field selectable Vandlegard feature. Inside lever always free for immediate egress.

Schlage ALX50 Function

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.

Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 50-Entrance Office Lock
Function Family Entrance
ANSI Function F82 - Entry
Lever/Knob Design RHO Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6 to 7
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
