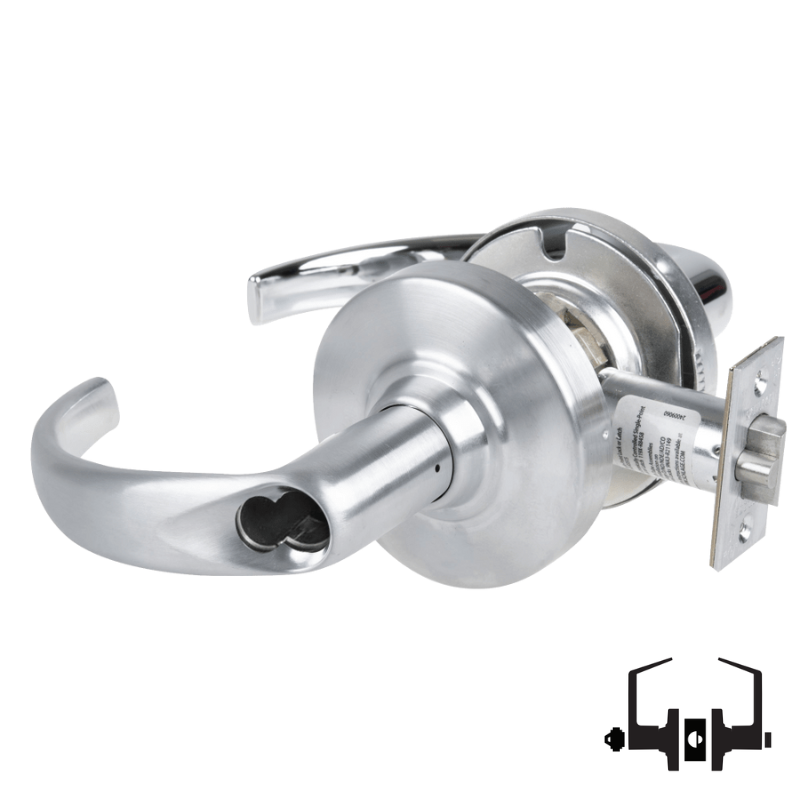

The Schlage ALX50B-SPA is a Cylindrical Office function lock, with a Sparta Lever, has a Field Selectable Vandlgard feature, accepts an SFIC Small Format Interchangeable Core, Sold Less Core, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.
Schlage ALX50 Entrance/Office Lock - Key cylinder outside; push button inside; dead latch. Inside push button locks outside lever. Unlock with key outside or by rotating inside lever. Field selectable Vandlegard feature. Inside lever always free for immediate egress.
ALX Series Grade 2 Cylindrical Lock
A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
Manufacturer | Schlage |
Grade | Grade 2 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL/cUL |
ANSI Number | A156.2-2011 Series 4000, Grade 2 |
Limited Warranty | 10 Years |
Fire Rated | 3 Hours {A} |
ADA Compliance | Yes |
Function | 50 Entrance Office Lock |
Function Family | Entrance |
ANSI Function |
F82 - Entry |
Lever/Knob Design | RHO Rhodes Lever |
Lever/Knob Design Family | Straight Return Lever |
Rose/Escutcheon Design |
3-7/16" Rose Diameter |
Rose/Escutcheon Dimensions | Rhodes |
Cylinder Type |
SFIC Prep Less Core |
Num Pins | 6 to 7 |
Handing | Non-handed |
Door Thickness | 1-3/8" - 1-3/4" |
Std. Latch Number | 47267042 |
Std. Latch Type | Deadlatch |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 7/8 In. |
Lock Face Size | 1-1/8 In. x 2-1/4 In. |
Bolt Projection | 1/2 In. |
Bore Hole Diameter | 2-1/8 In. |
Std. Strike Number | 47267101 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Combination |
Product Type | Cylindrical Lock |
