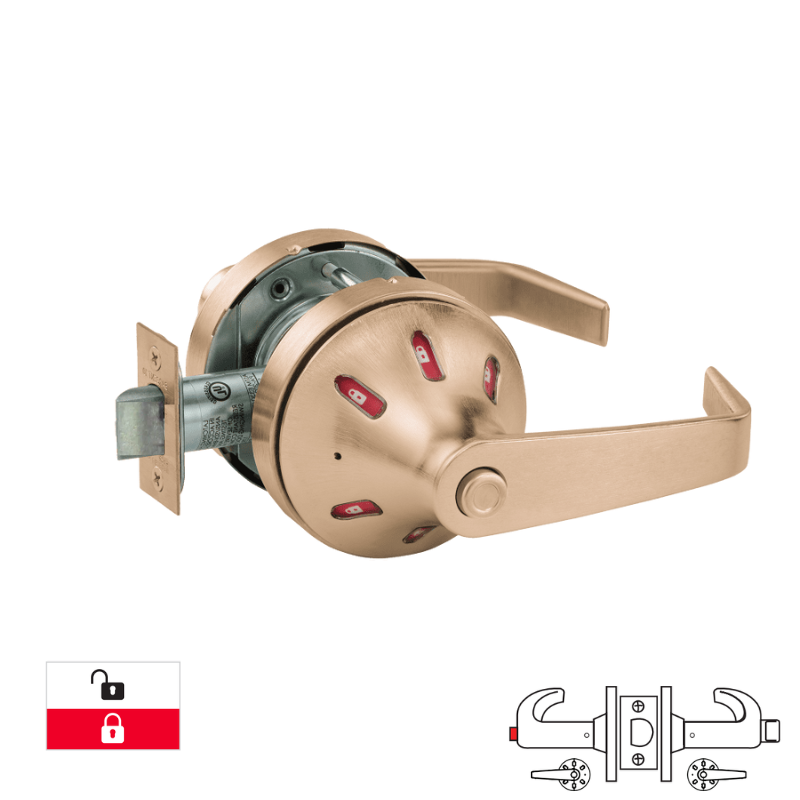

Sargent_V66-10XU68-VSLL-US10
Sargent_V66-10XU68-VSLL-US10B
Sargent_V66-10XU68-VSLL-US10BE
Sargent_V66-10XU68-VSLL-US15

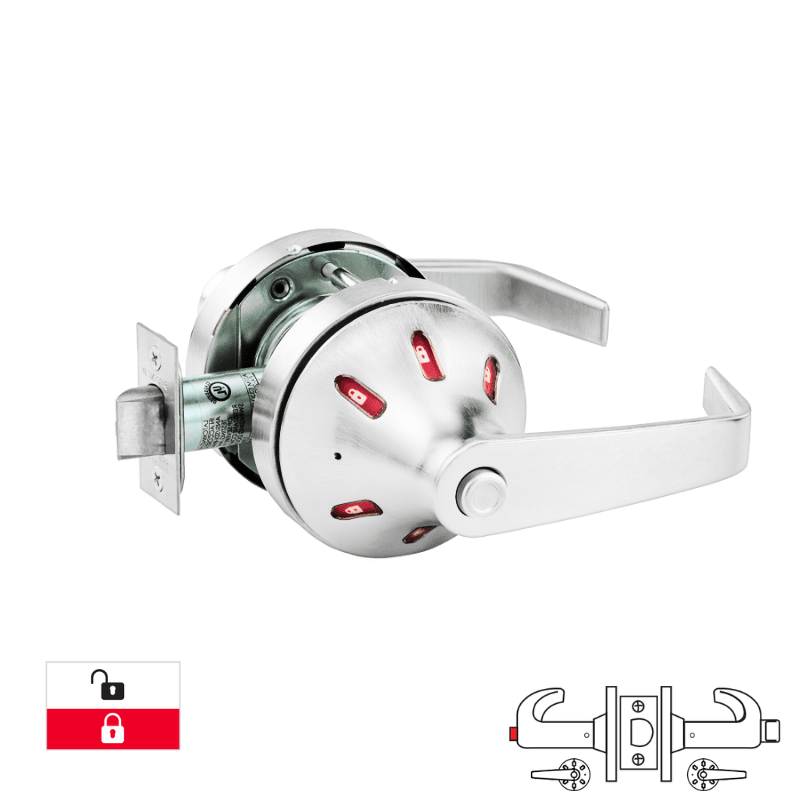

Sargent_V66-10XU68-VSLL-US26

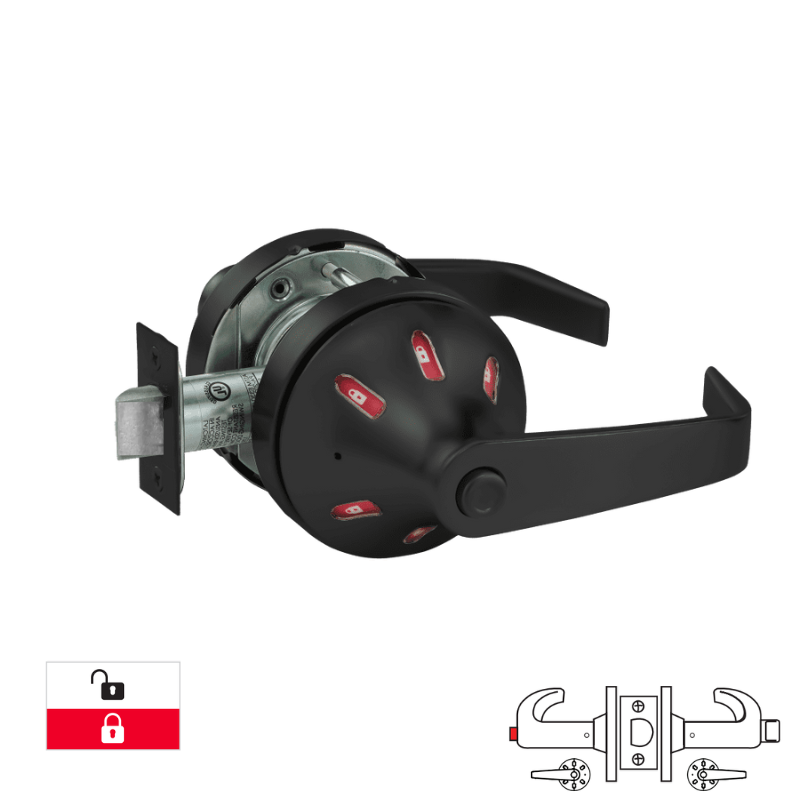

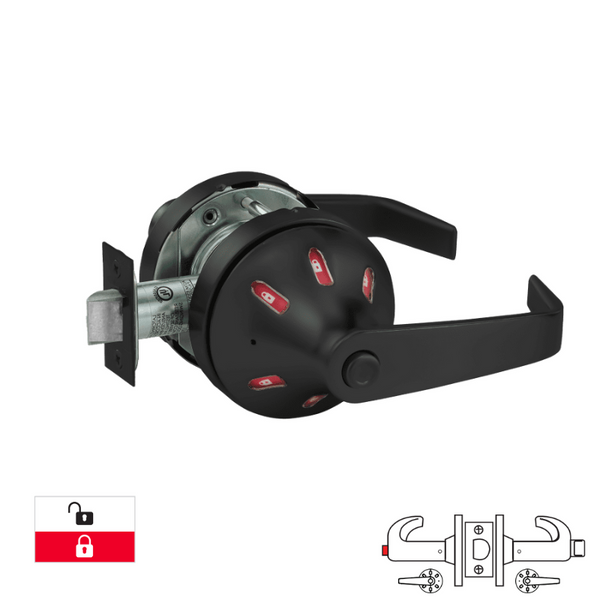

Sargent_V66-10XU68-VSLL-BSP

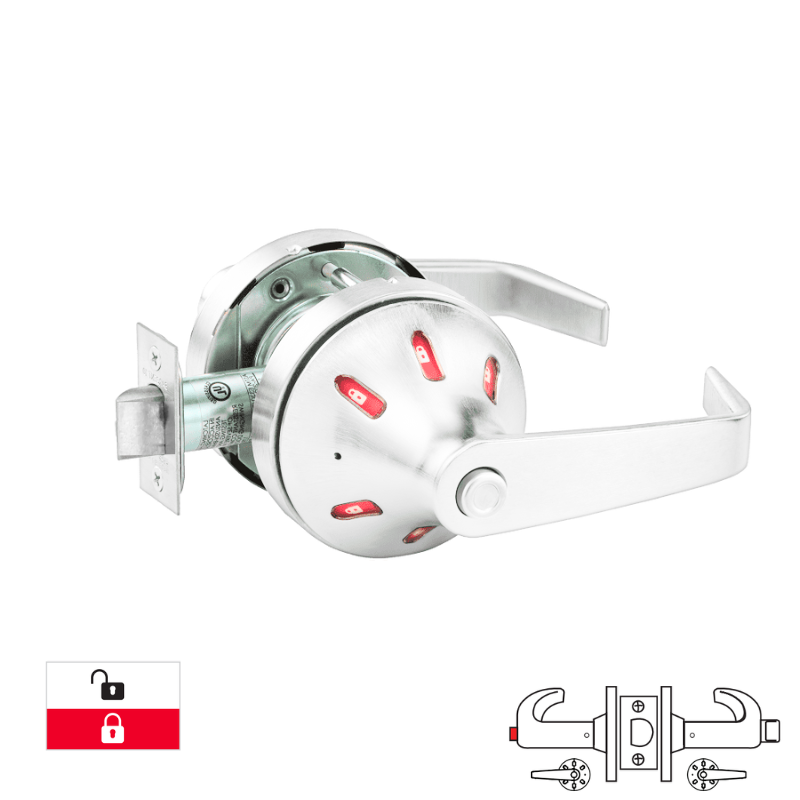

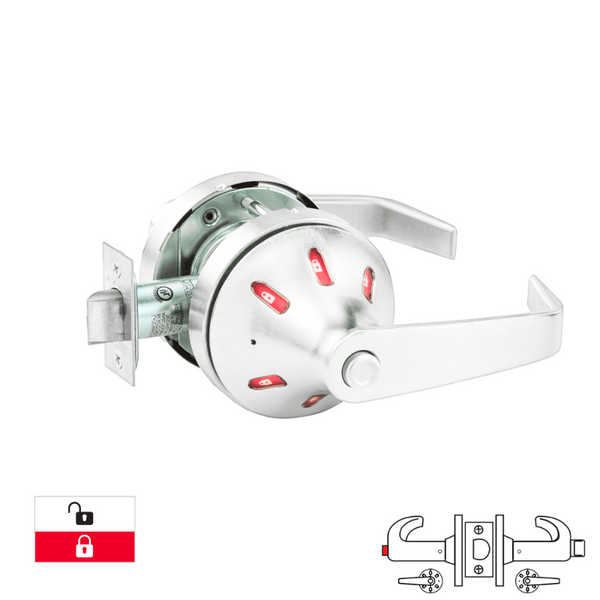

Sargent_V66-10XU68-VSLL-WSP
All SARGENT Products

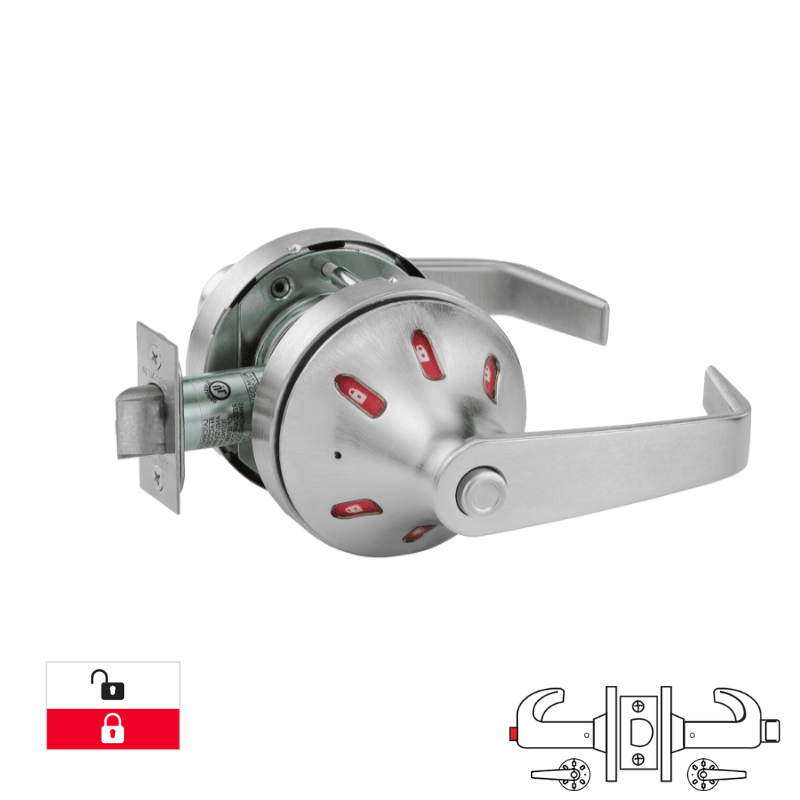

Sargent V66-10XU68-VSLL Hospital Privacy Function Cylindrical Lock, Visual Indicator Trim Both Side, White/Red, Non-Keyed

  • SKU: V6610XU68VSLLUS26D
Dhs. 2,012.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent V66-10XU68-VSLL Hospital Priv...
Quantity
–
+
From Dhs. 2,012.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From Dhs. 1,434.00
Total

Sargent V66-10XU68-VSLL Hospital Privacy Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Side, White/Red, 2 3/4 Backset, 4 7/8 Strike, Non-Keyed, Grade 1

The Sargent V66-10XU68-VSLL is a Grade 1 cylindrical lock designed for hospital privacy applications. Featuring a "VSL" rose and an "L" lever design, it includes visual indicators on both sides in white and red. This non-keyed lock has a 2 3/4" backset and a 4 7/8" strike, providing reliable privacy control in healthcare environments.

Privacy/Bathroom Function:

  • Latch by either lever unless outside lever is locked by push button in inside lever
  • Turning inside lever or closing door releases button
  • Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button

Double Indicator:

Option Code Outside Inside  Color
V33 Indicator Trim Indicator Trim  Green/Red - Icon
V66 Indicator Trim Indicator Trim  White/Red - Icon
V77 Indicator Trim  Indicator Trim Green/Red - Icon
V88 Indicator Trim  Indicator Trim White/Red - Icon
Manufacturer Sargent
SKU V66-10XU68-VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 68-Hospital Privacy
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
