Sargent V30-10XG44-VSLL-LAKD Service Station Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike,  LA Keyway Keyed Random [2] Keys, Grade 1

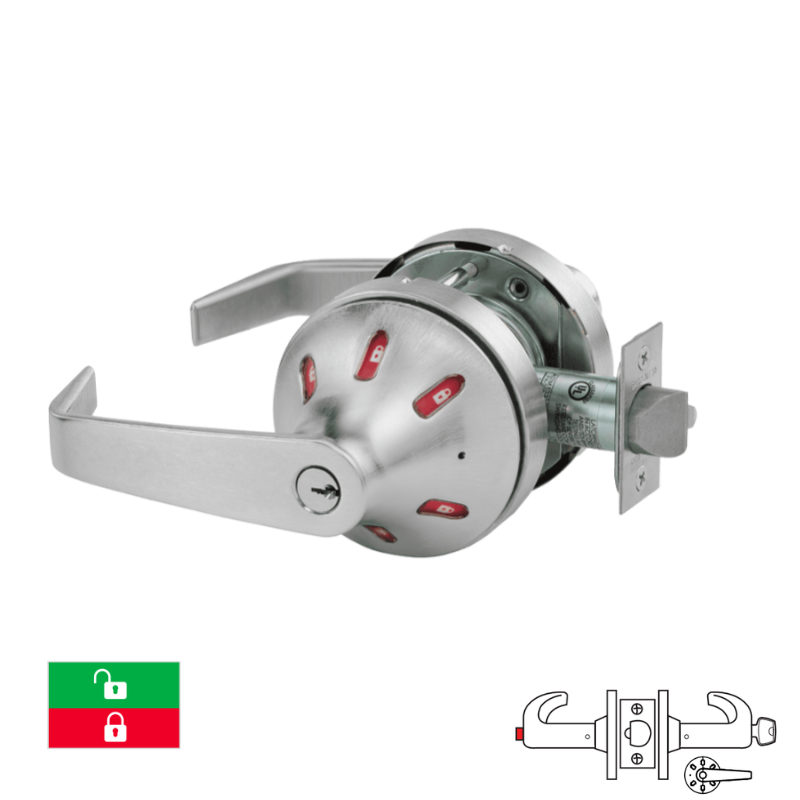

The Sargent V30-10XG44-VSLL-LAKD Service Station Cylindrical Indicator Lock is a Grade 1 commercial lock featuring a green/red exterior visual indicator with icon for clear occupancy status. Built on Sargent’s durable 10X Line platform, it includes a deadlocking latch, L-design lever with VSLL rose, 2-3/4" backset, and 4-7/8" ANSI strike. The Service Station function allows interior push-button locking with exterior key override while maintaining free egress. Supplied with an LA keyway keyed-random cylinder and two keys, this non-handed lock is UL listed and fire-rated up to 3 hours, making it ideal for commercial and institutional doors.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F92

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
