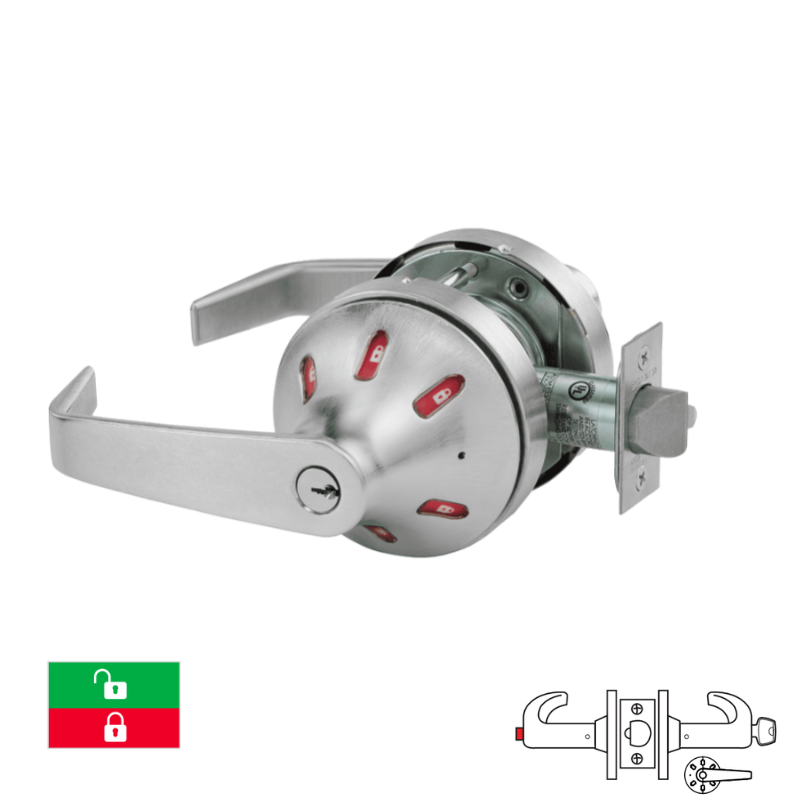

Sargent V30-10XG24-VSLL-LAKD Entrance or Office Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red Indicators, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
This Grade 1 cylindrical lock from Sargent delivers commercial-grade security for entrance and office applications. The V30-10XG24-VSLL-LAKD features a visual indicator trim on the exterior, displaying green and red status indicators for quick occupancy verification. Built with a lever design and VSL rose configuration, it accommodates a 2 3/4" backset with a 4 7/8" strike. The LA keyway comes keyed random with two keys included. Engineered for high-traffic environments, this lock combines durability with practical functionality for professional spaces.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Push button released by key or turning inside lever
- Closing door does not unlock outside lever or release button
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- ANSI/BHMA F82A
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
