Sargent V06-10XU68-VSLL Hospital Privacy Function Cylindrical Lock, Visual Indicator Trim Inside Only, White/Red, Non-Keyed

  • SKU: V0610XU68VSLLUS26D

Sargent V06-10XU68-VSLL Hospital Privacy Function Cylindrical Lock, Visual Indicator Trim Inside Only, White/Red, Non-Keyed

  • SKU: V0610XU68VSLLUS26D
Sale priceDhs. 1,812.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent V06-10XU68-VSLL Hospital Priv...
Quantity
+
Sale priceFrom Dhs. 1,812.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
+
Sale priceFrom Dhs. 1,434.00
Total

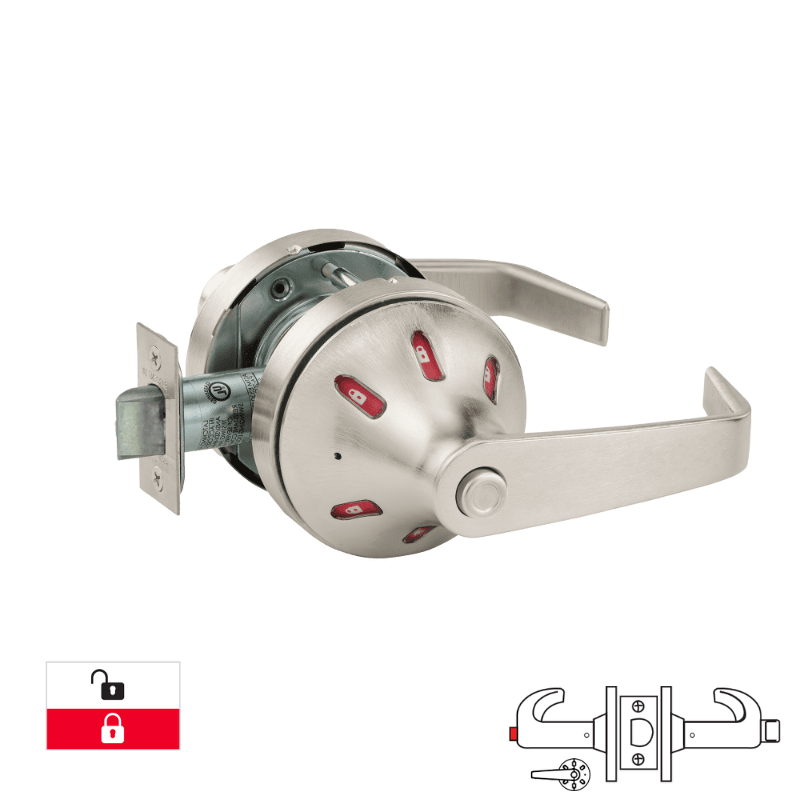

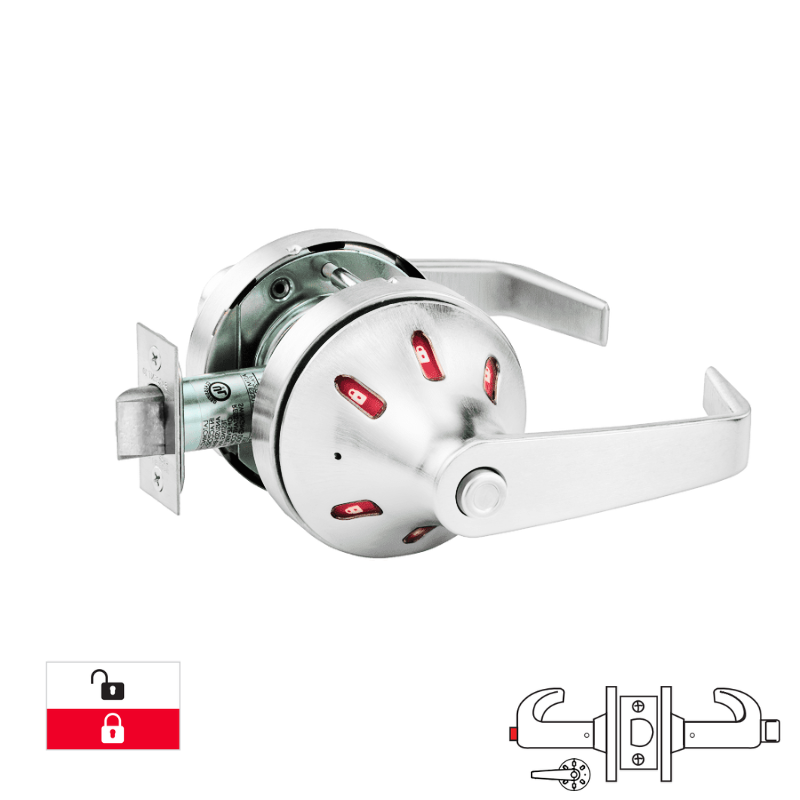

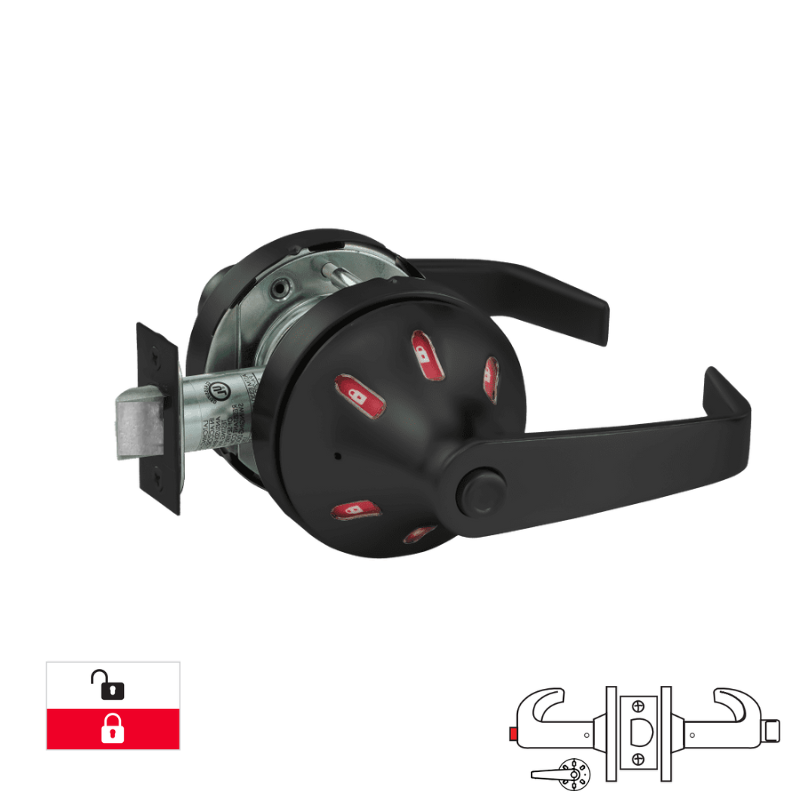

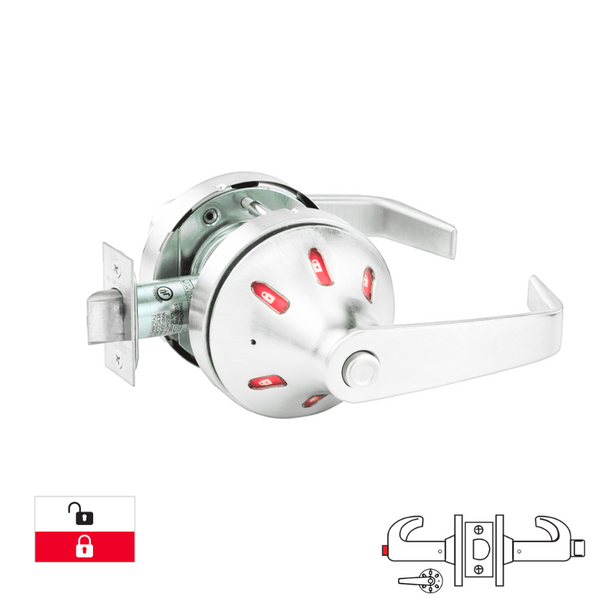

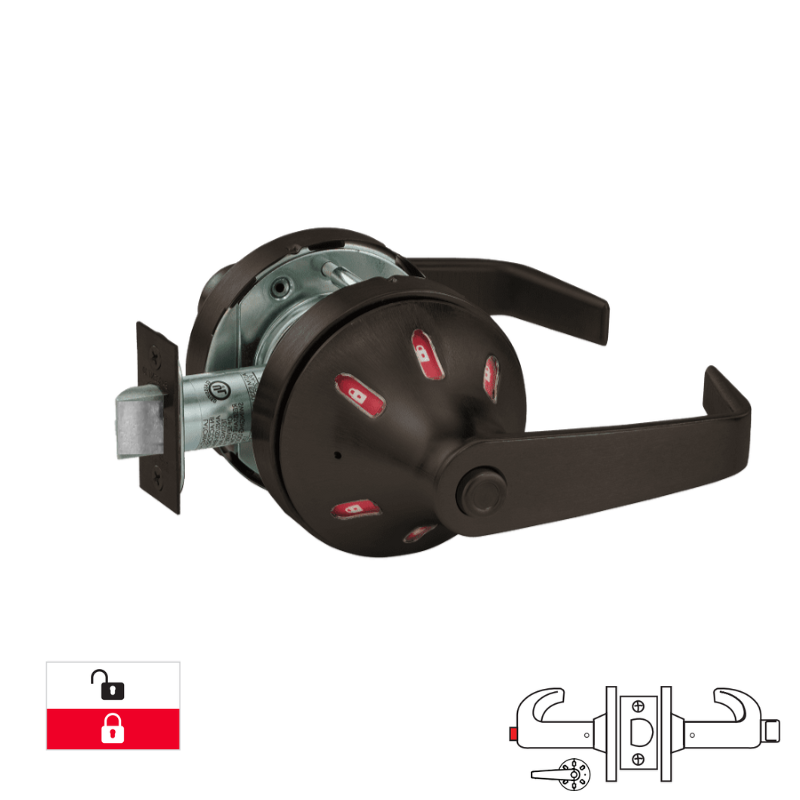

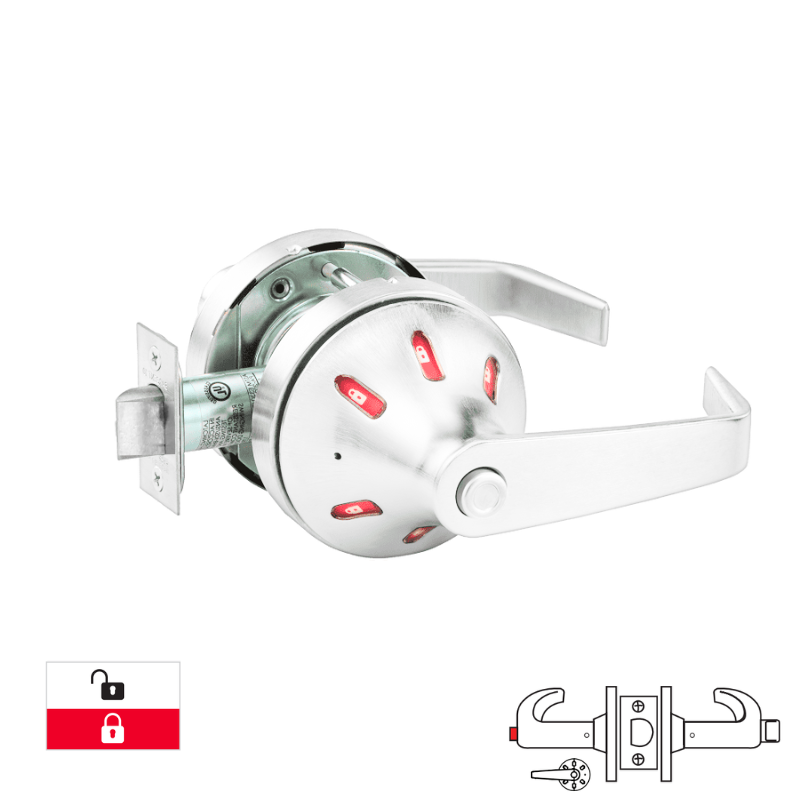

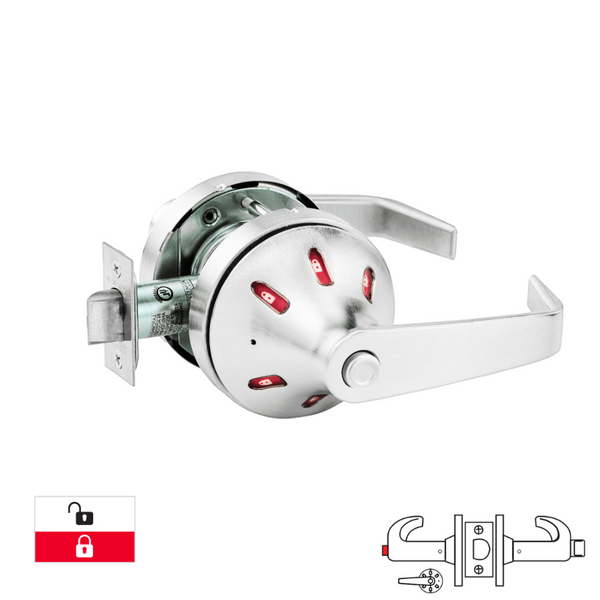

Sargent V06-10XU68-VSLL Hospital Privacy Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, Non-Keyed, Grade 1

Sargent V06-10XU68-VSLL Hospital Privacy Cylindrical Lock features a "VSL" rose with an "L" lever design and a visual indicator trim located inside only. Finished in white/red, it includes a 2 3/4-inch backset and a 4 7/8-inch strike plate. This Grade 1 lock is non-keyed, specifically designed for hospital privacy applications.

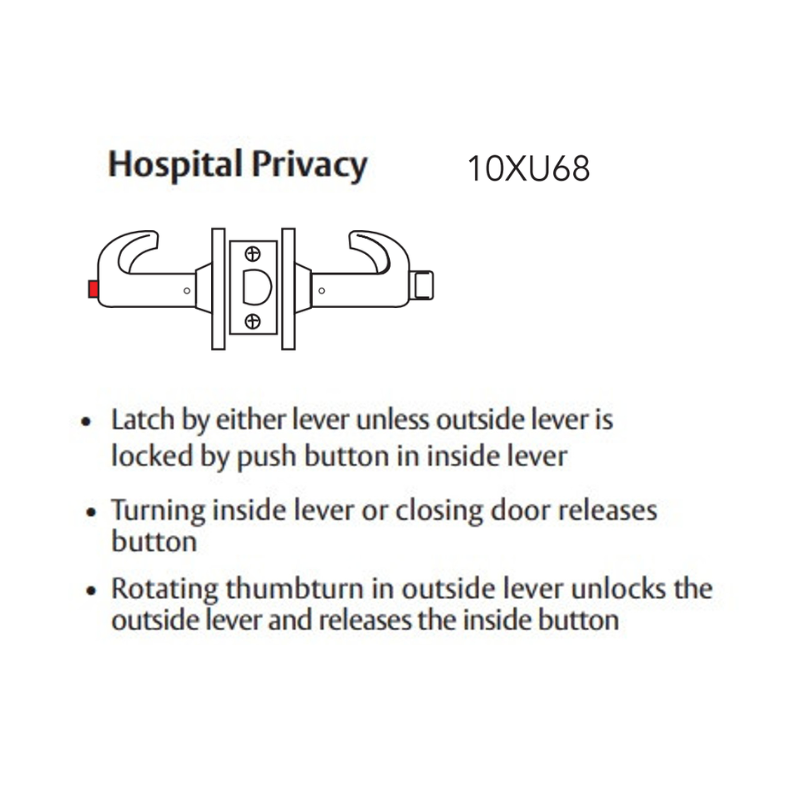

Privacy/Bathroom Function:

  • Latch by either lever unless outside lever is locked by push button in inside lever
  • Turning inside lever or closing door releases button
  • Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button

Single Indicator:

Option Code Outside Inside  Color
V30 Indicator Trim Standard Trim Green/Red - Icon
V60 Indicator Trim Standard Trim White/Red - Icon
V03 Standard Trim Indicator Trim Green/Red - Icon
V06 Standard Trim Indicator Trim White/Red - Icon

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.

Manufacturer Sargent
SKU V06-10XU68-VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 68-Hospital Privacy
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
