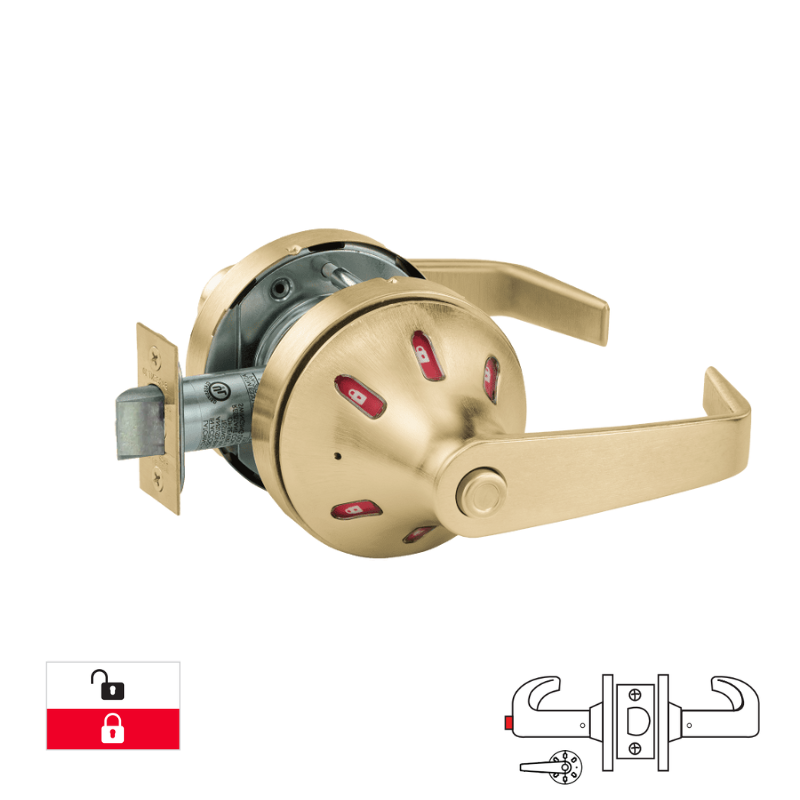

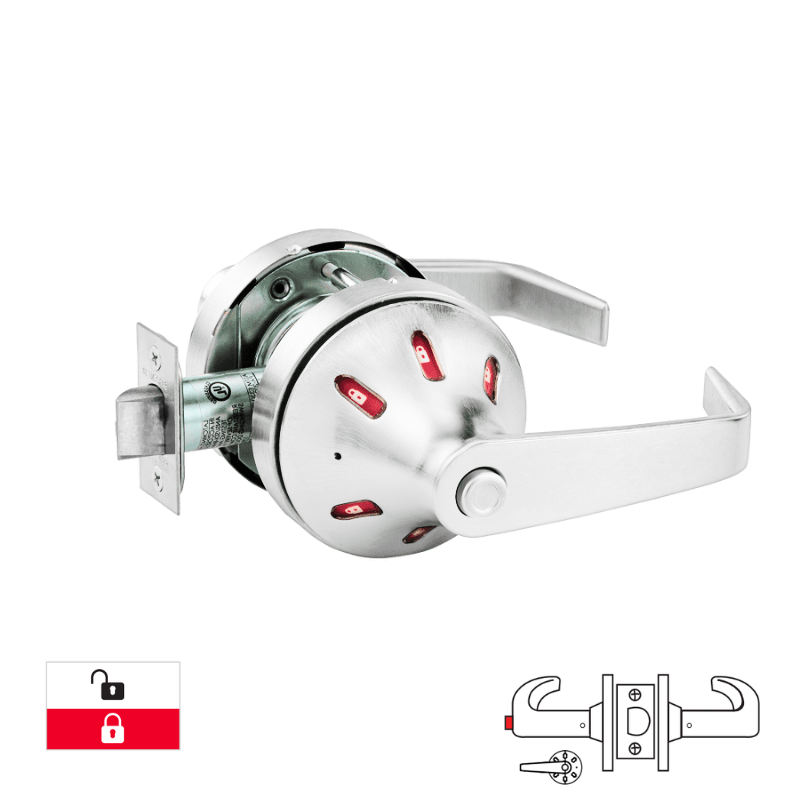

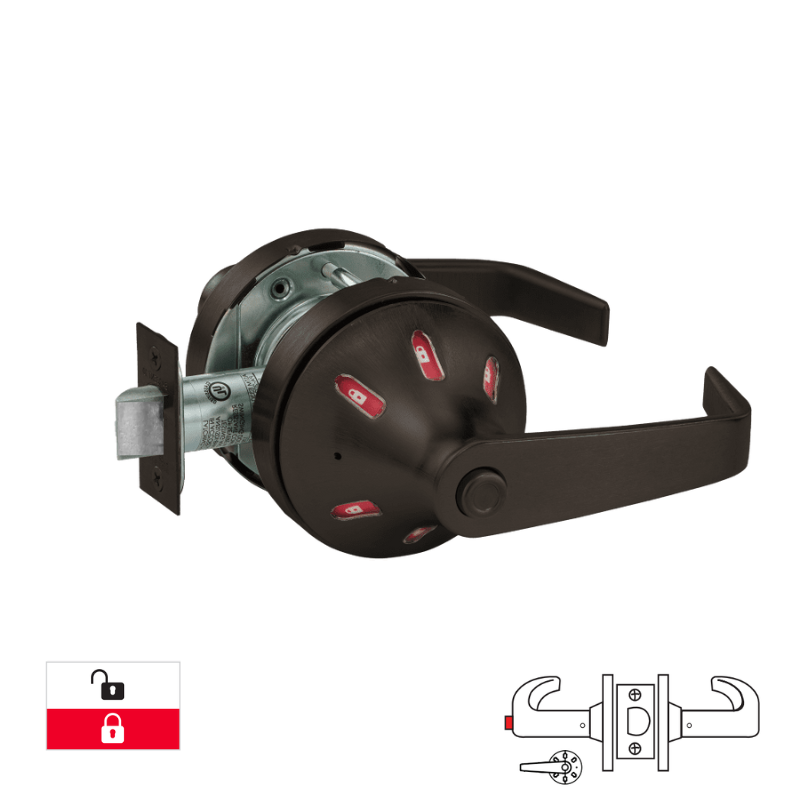

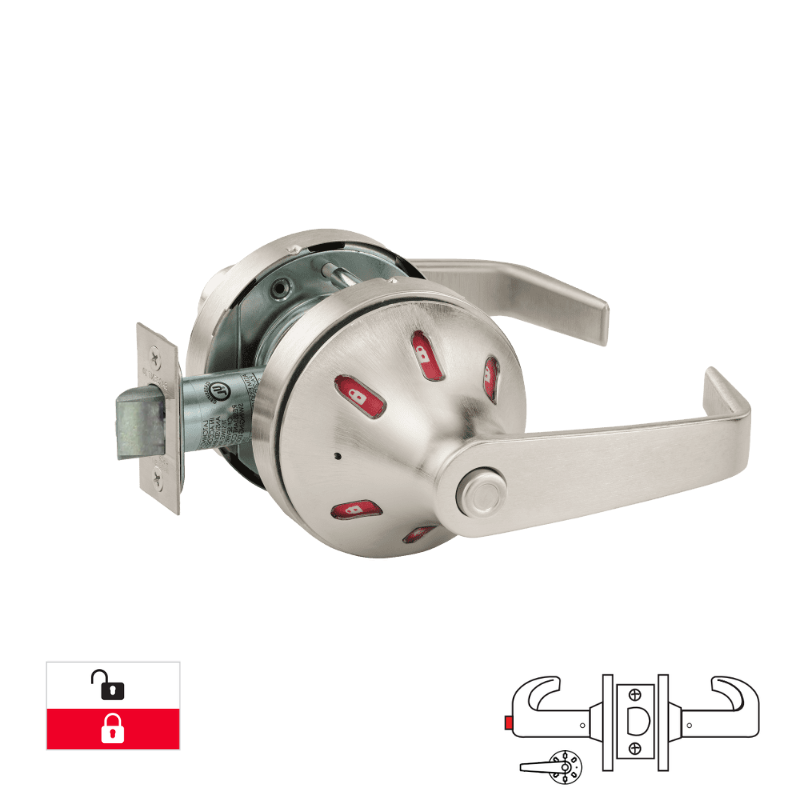

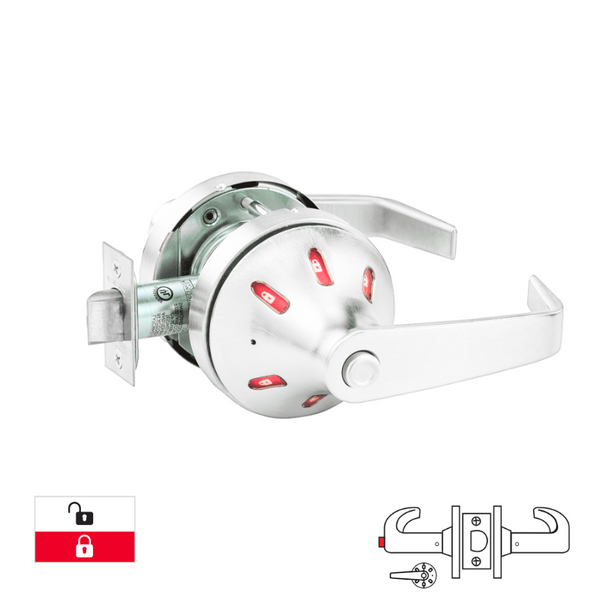

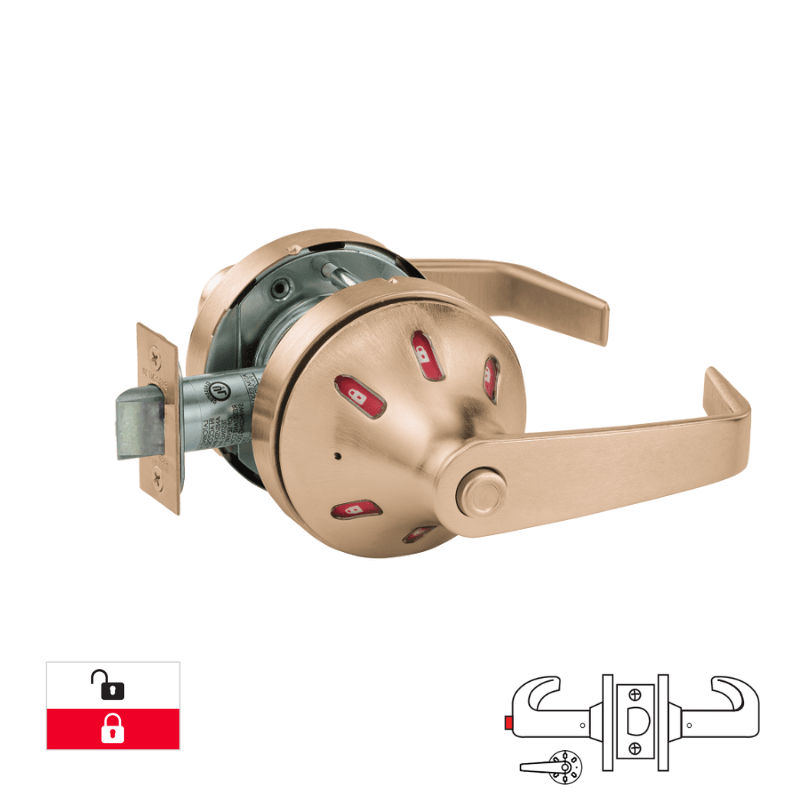

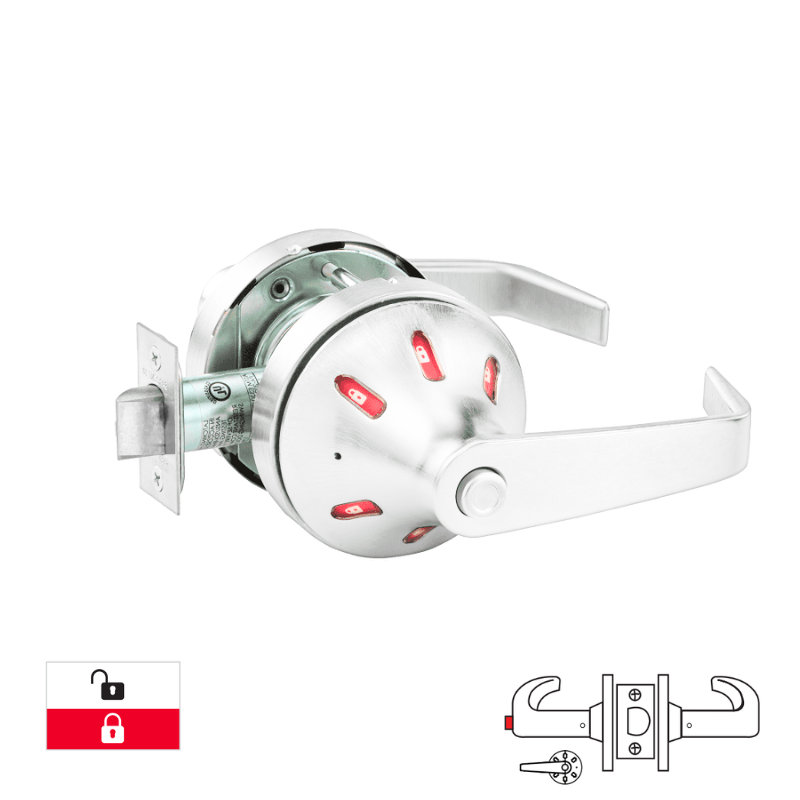

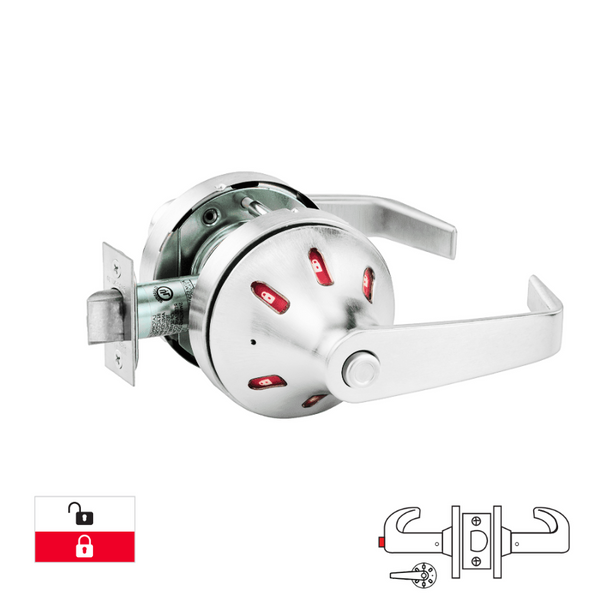

Sargent V06-10XU65-VSLL Privacy/Bathroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, Non-Keyed, Grade 1
Sargent V06-10XU65-VSLL is a Grade 1 cylindrical lock designed for privacy and bathroom use, featuring a "VSL" rose and "L" lever style. It includes a white/red visual indicator trim on the inside for occupancy status. The lock has a 2 3/4” backset and a 4 7/8” strike, and it is non-keyed for simple, secure operation.

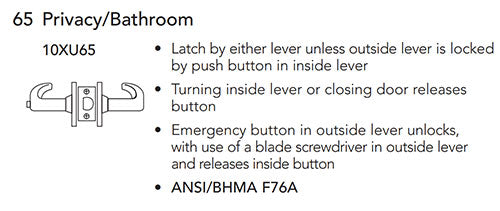

Privacy/Bathroom Function:
- Latch by either lever unless outside lever is locked by push button in inside lever
- Turning inside lever or closing door releases button
- Emergency cointurn (key/tool p/n 14-0057, not provided) in outside lever releases inside button
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
