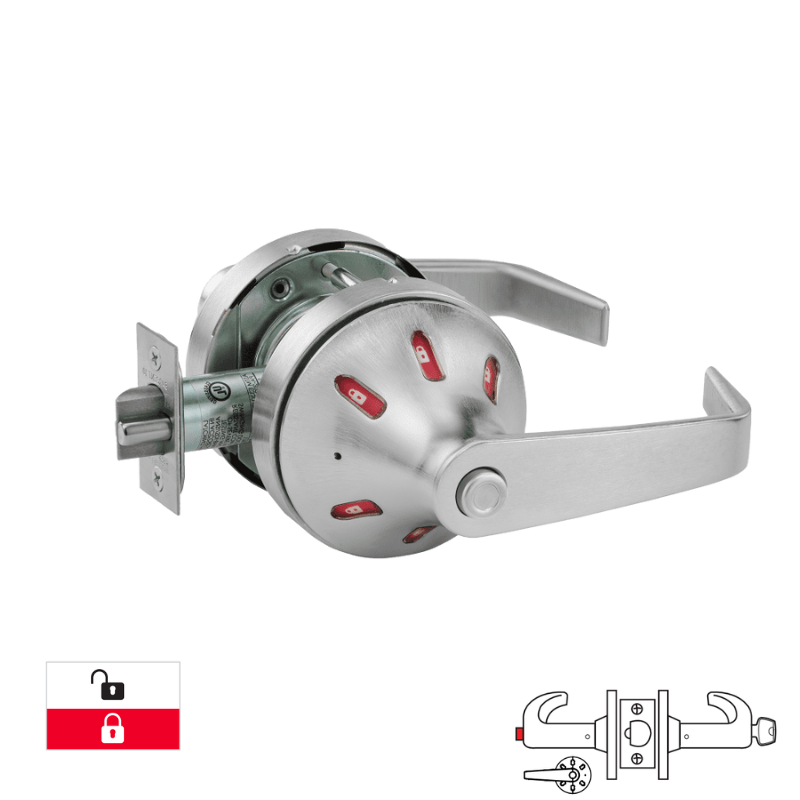

Sargent V06-10XG44-VSLL-LAKD Service Station Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike,  LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent V06-10XG44-VSLL-LAKD Service Station Cylindrical Indicator Lock is a Grade 1 commercial lock engineered for high-traffic environments requiring clear visual occupancy status. Featuring a white/red visual indicator with icon on the interior side only (V06), this lock provides instant status recognition while maintaining a clean exterior with standard trim. Built on Sargent’s robust 10X Line platform, it includes a deadlocking latch, L-design lever with VSLL rose, 2-3/4" backset, and 4-7/8" ANSI strike. The Service Station function allows the outside lever to be locked via the interior push button while maintaining free egress, with key override from the exterior. Supplied with an LA keyway keyed random cylinder and two keys, this non-handed lock is UL listed, fire-rated up to 3 hours, and compliant with ANSI/BHMA F92 standards, making it ideal for commercial, institutional, and privacy-controlled applications.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F92

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
