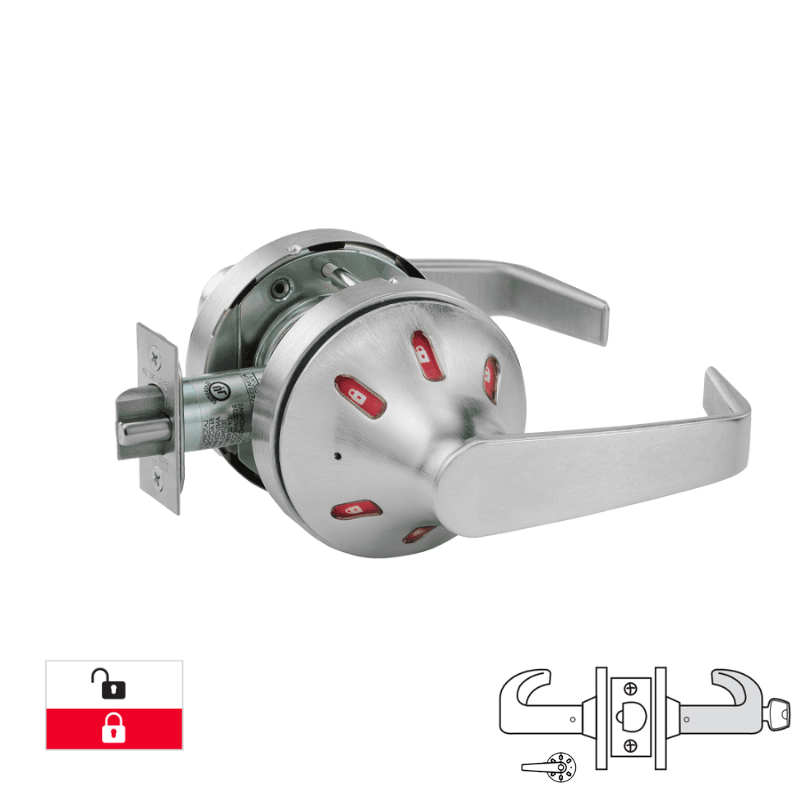

Sargent V06-10XG37-VSLL-LAKD Classroom Function Cylindrical Lock, Visual Indicator Trim Inside Only, White/Red, LA Keyway Keyed Random

  • SKU: V0610XG37VSLLUS26DLAKD
Dhs. 2,038.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent V06-10XG37-VSLL-LAKD Classroo...
Quantity
–
+
From Dhs. 2,038.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From Dhs. 1,434.00
Total

Sargent V06-10XG37-VSLL Classroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent V06-10XG37-VSLL is a Grade 1 classroom function cylindrical lock featuring a "VSL" rose and "L" lever design. It includes a visual indicator trim located inside only, with a white/red color scheme. The lock has a 2 3/4" backset and a 4 7/8" strike plate. Equipped with an LA keyway and comes keyed randomly, it is supplied with two keys.

Classroom Function:

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by key
  • Key in outside lever locks or unlocks outside lever and retracts latch
  • Inside lever aleays operative
  • ANSI/BHMA F84

Single Indicator:

Option Code Outside Inside  Color
V30 Indicator Trim Standard Trim Green/Red - Icon
V60 Indicator Trim Standard Trim White/Red - Icon
V03 Standard Trim Indicator Trim Green/Red - Icon
V06 Standard Trim Indicator Trim White/Red - Icon

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.

Manufacturer Sargent
SKU V06-10XG37-LAKD VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 37-Classroom
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type LA Keyway Keyed Random [2] Keys
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
