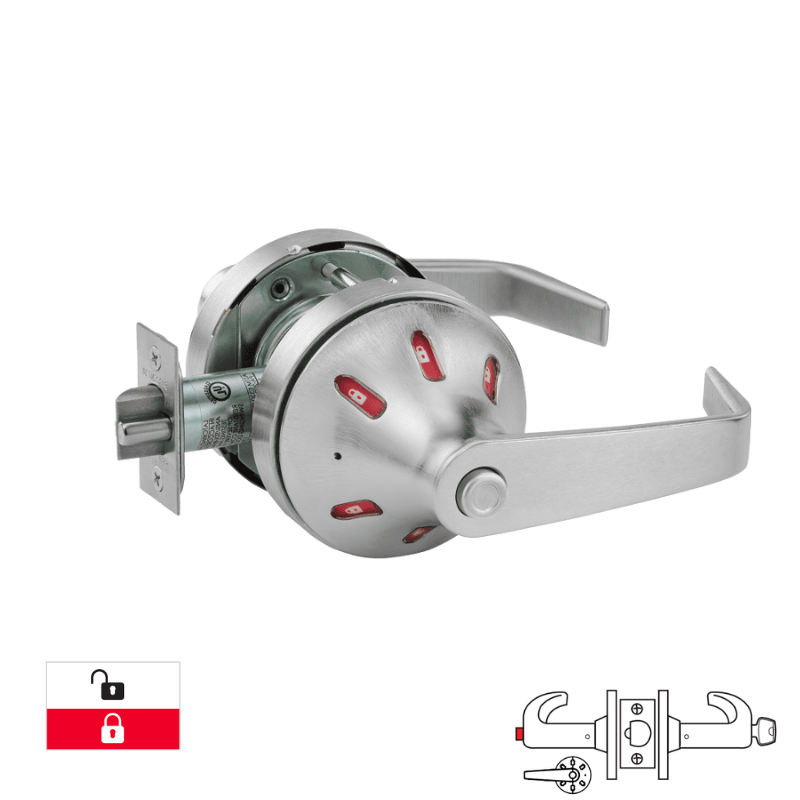

Sargent V06-10XG24-VSLL-LAKD Entrance or Office Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red Indicators, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
The Sargent V06-10XG24-VSLL-LAKD is a heavy-duty Grade 1 cylindrical lock engineered for high-security entrance and office door applications. Its VSL rose and L-lever configuration ensure smooth, dependable performance in demanding commercial settings. The interior-mounted visual indicator with white and red status display provides immediate occupancy feedback. Specifications include a 2 3/4" backset, 4 7/8" strike plate, LA keyway, and comes with two randomly keyed keys for enhanced security. Built to meet rigorous commercial standards.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Push button released by key or turning inside lever
- Closing door does not unlock outside lever or release button
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- ANSI/BHMA F82A
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
