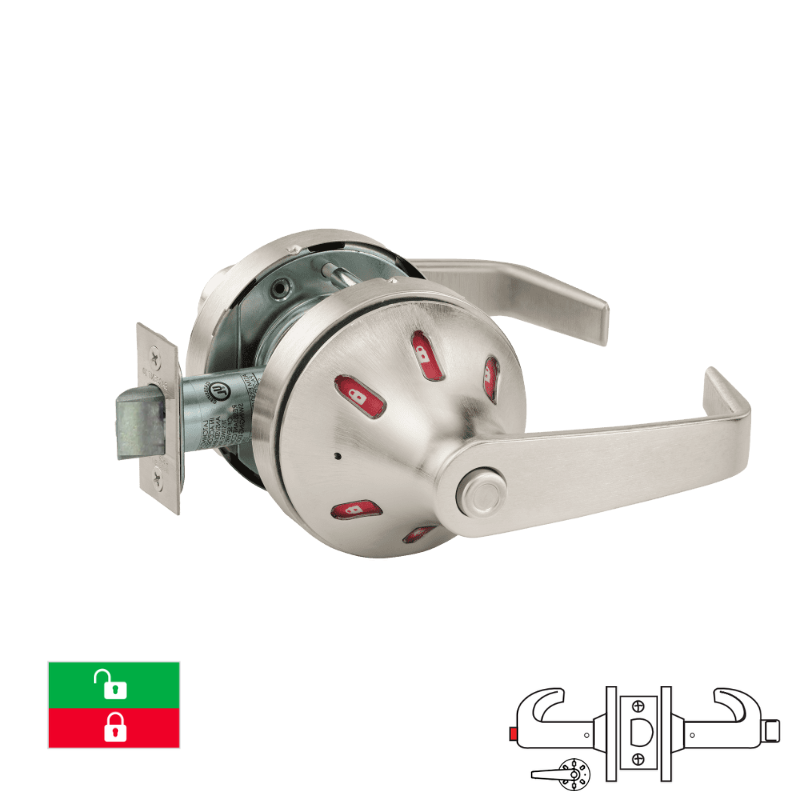

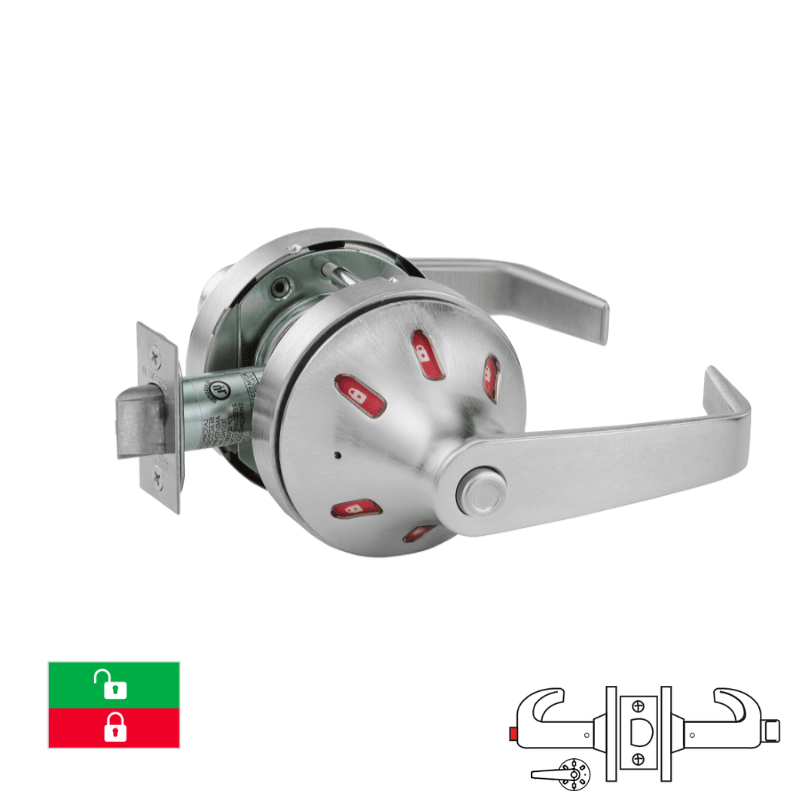

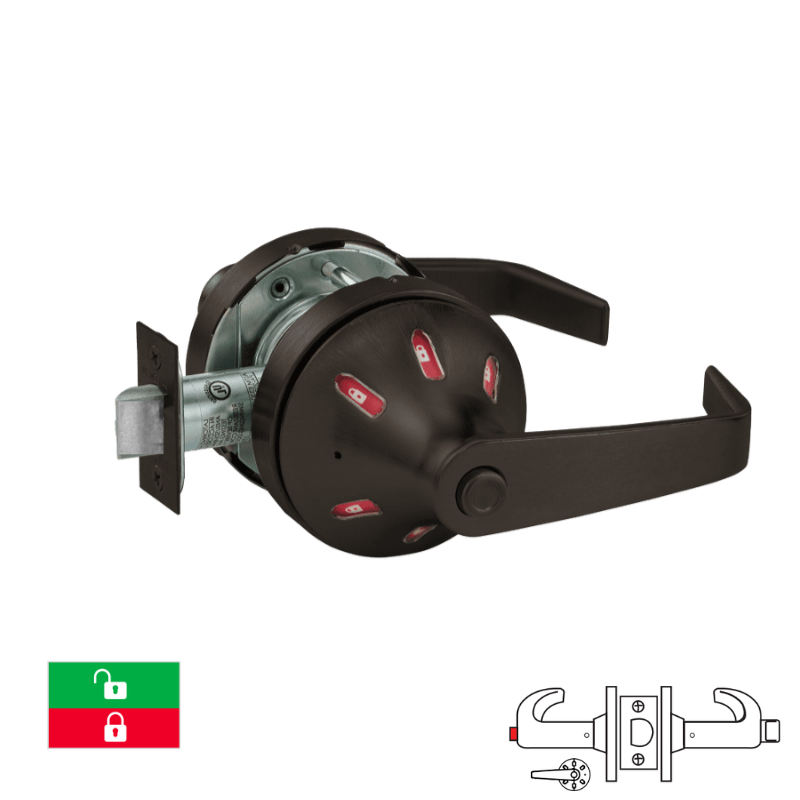

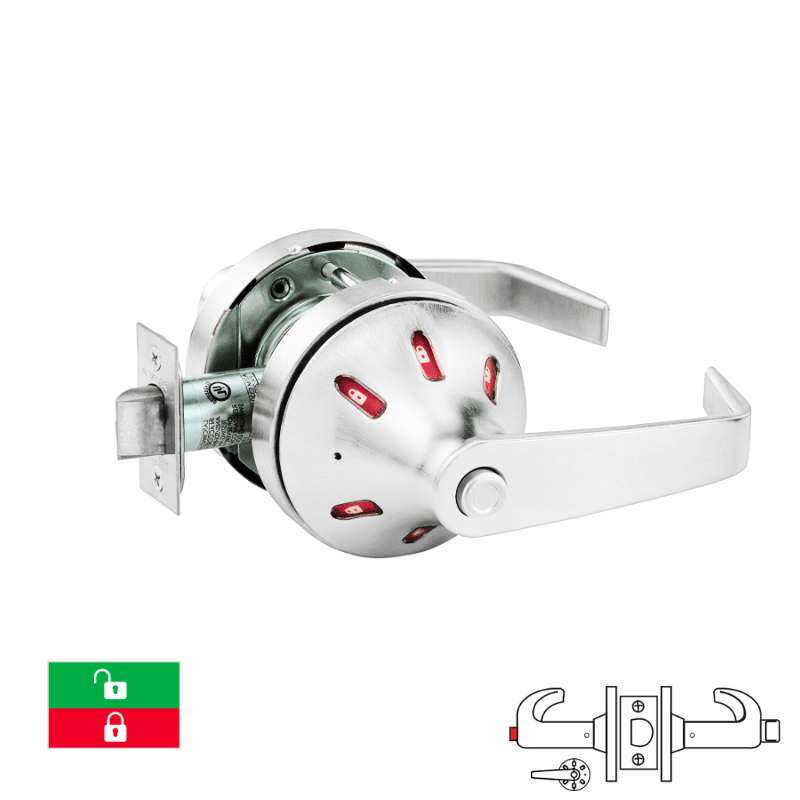

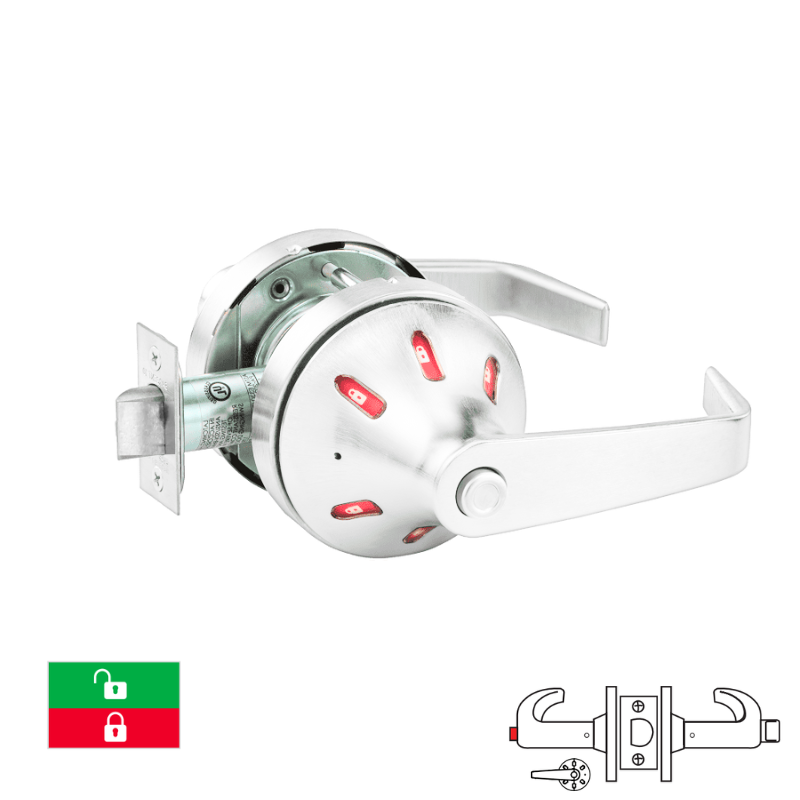

Sargent V03-10XU68-VSLL Hospital Privacy Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, Non-Keyed, Grade 1
Sargent V03-10XU68-VSLL Hospital Privacy Cylindrical Lock features a "VSL" rose and an "L" lever design. It includes a visual indicator trim inside only, displaying green and red for privacy status. This non-keyed, Grade 1 lock is equipped with a 2 3/4" backset and a 4 7/8" strike, ensuring reliable performance in healthcare environments.
Privacy/Bathroom Function:
- Latch by either lever unless outside lever is locked by push button in inside lever
- Turning inside lever or closing door releases button
- Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
