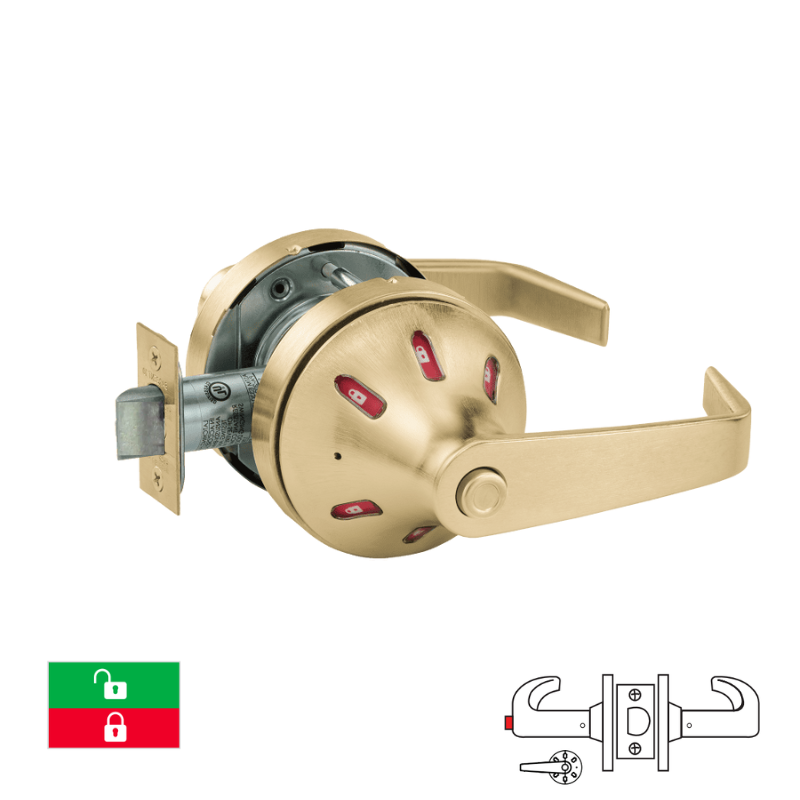

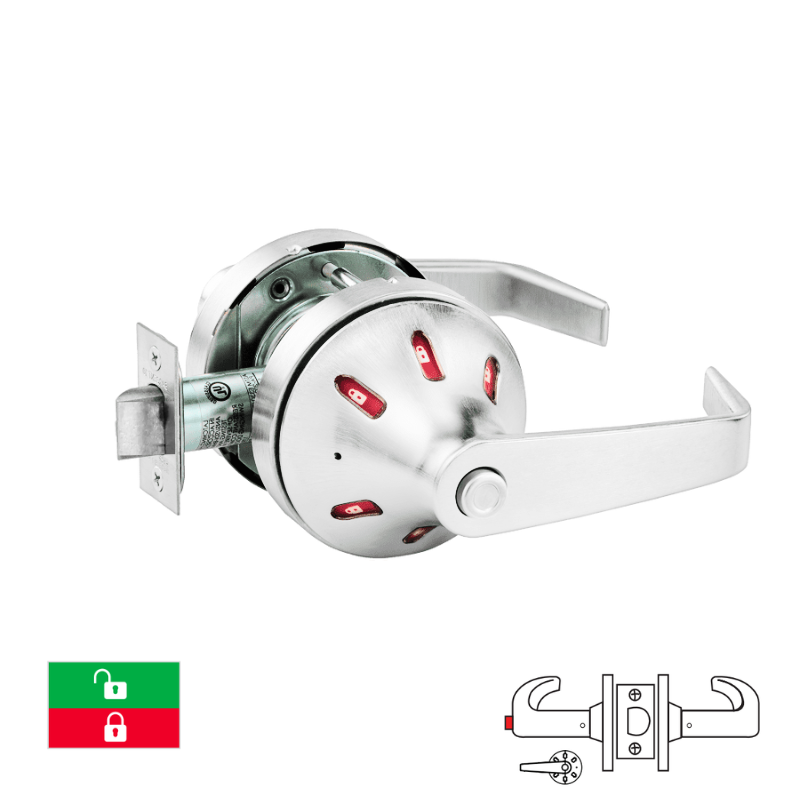

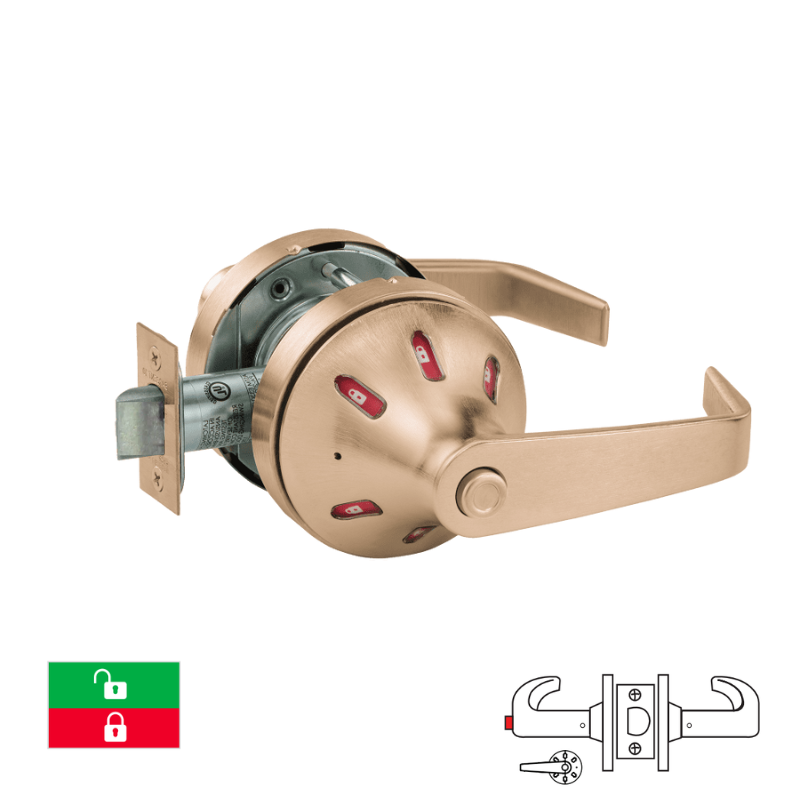

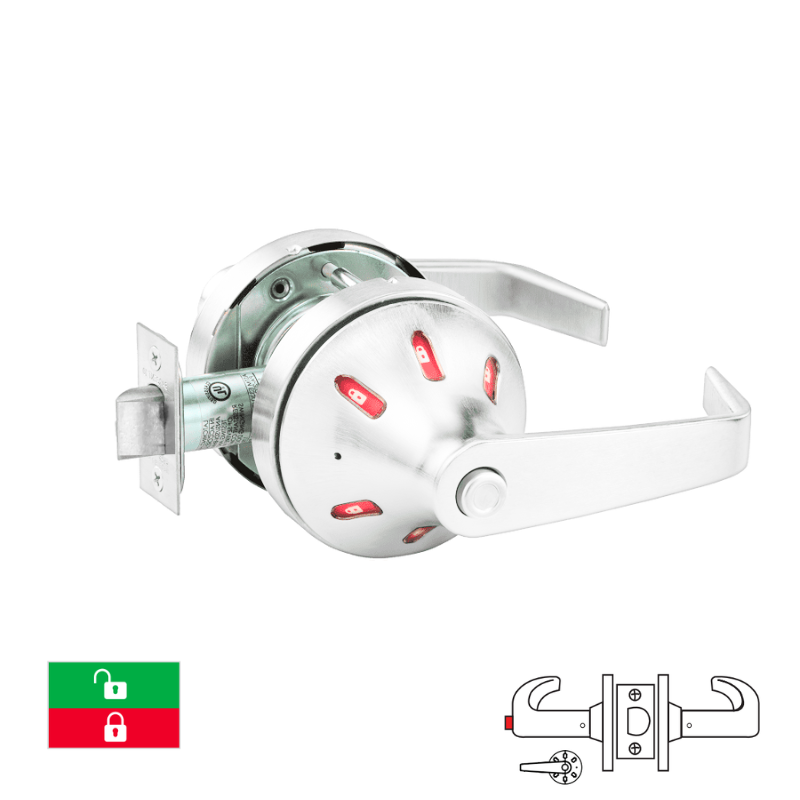

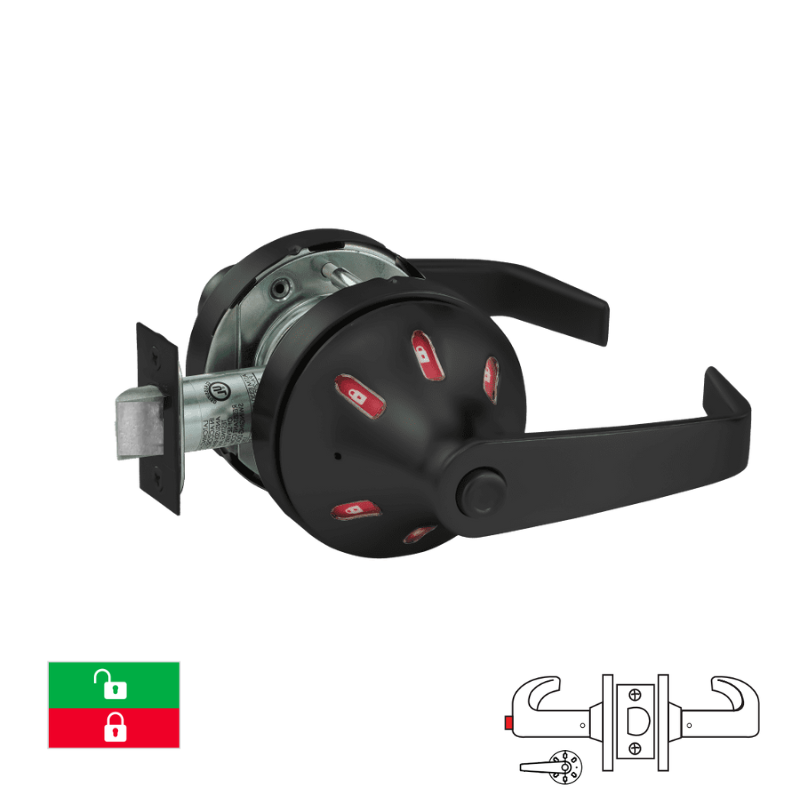

Sargent V03-10XU65-VSLL Privacy/Bathroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, Non-Keyed, Grade 1
The Sargent V03-10XU65-VSLL is a Grade 1 privacy lock designed for bathroom use. It features a "VSL" rose and an "L" style lever, with a visual indicator on the inside showing green or red. The lock includes a 2 3/4-inch backset and a 4 7/8-inch strike plate, and it is non-keyed for added privacy.
Privacy/Bathroom Function:
- Latch by either lever unless outside lever is locked by push button in inside lever
- Turning inside lever or closing door releases button
- Emergency cointurn (key/tool p/n 14-0057, not provided) in outside lever releases inside button
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
