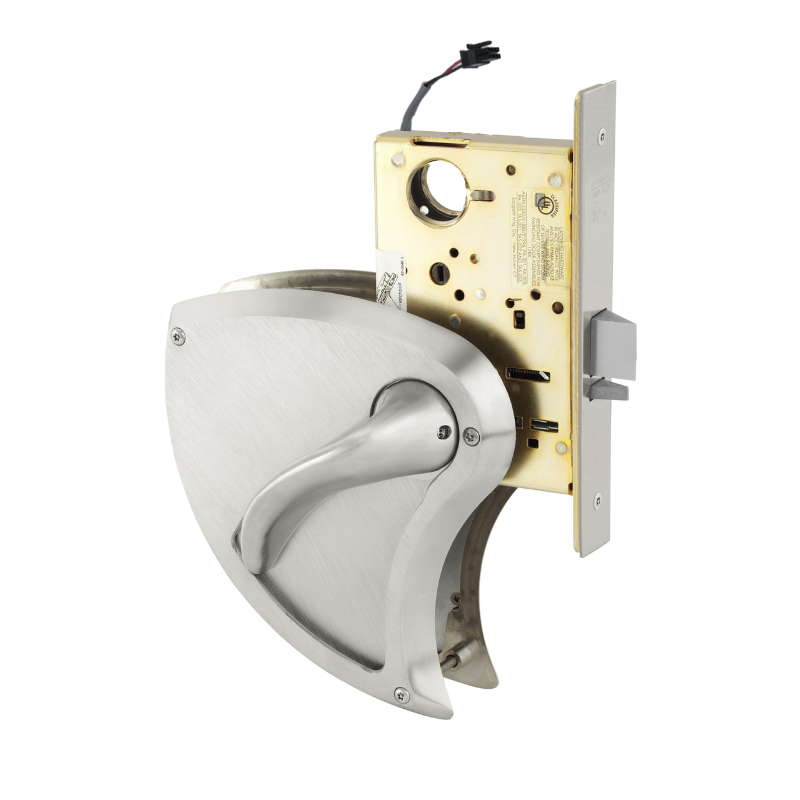

Sargent 8273-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Double Cylinder Fail Secure 12VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8273-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock features BHW trim and operates as a double-cylinder, fail-secure device at 12VDC. This Grade 1 lock, finished in 630 Satin Stainless Steel, is field reversible and comes without a cylinder for flexible installation options.

• Electrical (Fail Safe) Function:
  • 73 function — Power ON, unlocks both levers
  • Key outside retracts latchbolt

  • Lever outside retracts latchbolt, except when locked

  • Lever outside can only be locked electronically

  • Lever inside always retracts latchbolt

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both Levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch
