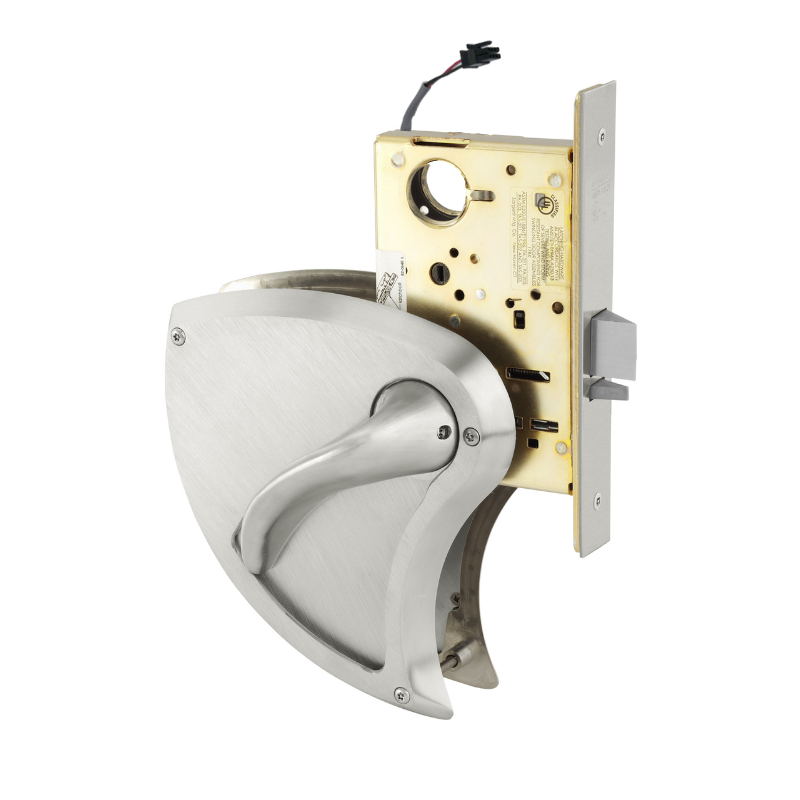

Sargent RX-8271-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder Fail Secure 12VDC, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8271-BHW-12VDC-US32D-LC is a Grade 1 Behavioral Health electrified mortise lock featuring BHW trim and a single-cylinder fail-secure design operating at 12VDC. It includes an "RX" request-to-exit switch, is field reversible, and comes without a cylinder. Finished in 630 Satin Stainless Steel, this lock meets rigorous security and reliability standards for specialized applications.

• Electrical (Fail Safe) Function:
  • 71 function — Power ON, unlocks outside lever
  • Key outside retracts latchbolt

  • Lever outside retracts latchbolt, except when locked

  • Lever outside can only be locked electronically

  • Lever inside always retracts latchbolt

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
