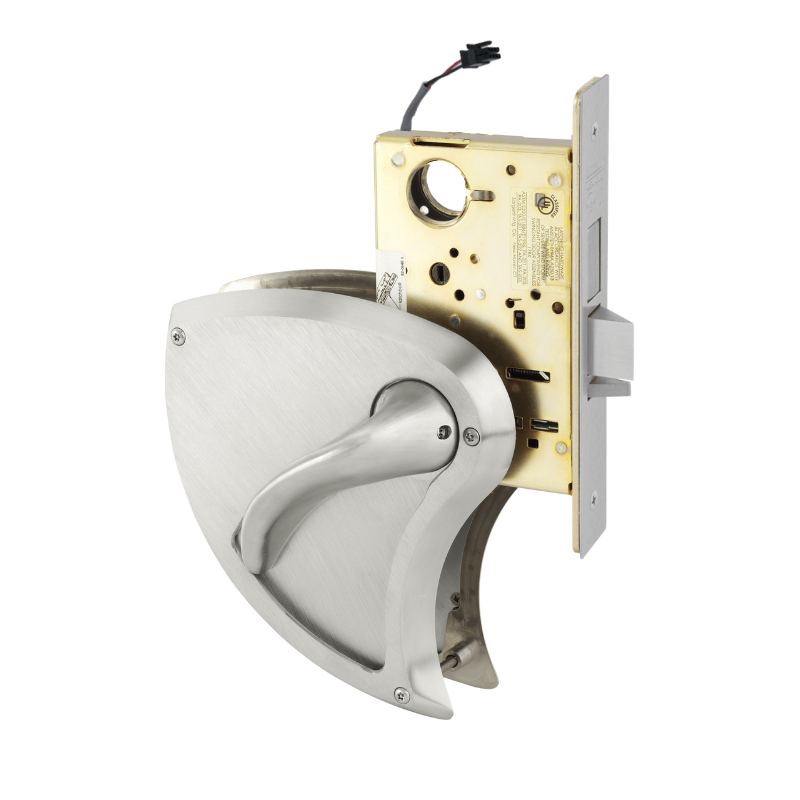

Sargent RX-8241-BHW-US32D-LC Behavioral Health Classroom Security Intruder Deadbolt Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8241-BHW-US32D-LC is a Grade 1 mortise lock designed for behavioral health classrooms, featuring an intruder deadbolt function and BHW trim. It includes an "RX" Request To Exit switch and comes less cylinder, with a field-reversible design. Finished in satin stainless steel (630), this lock offers robust security tailored for sensitive environments.

• Classroom Security Intruder Deadbolt Function:
  • Key from either side retracts and projects deadbolt

  • When deadbolt is projected, 1st key rotation retracts deadbolt, 2nd key rotation unlocks trim outside

  • Key retraction of latchbolt from either side unlocks trim outside

  • Trim outside retracts latchbolt, except when locked

  • Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously and the outside trim remains locked

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
