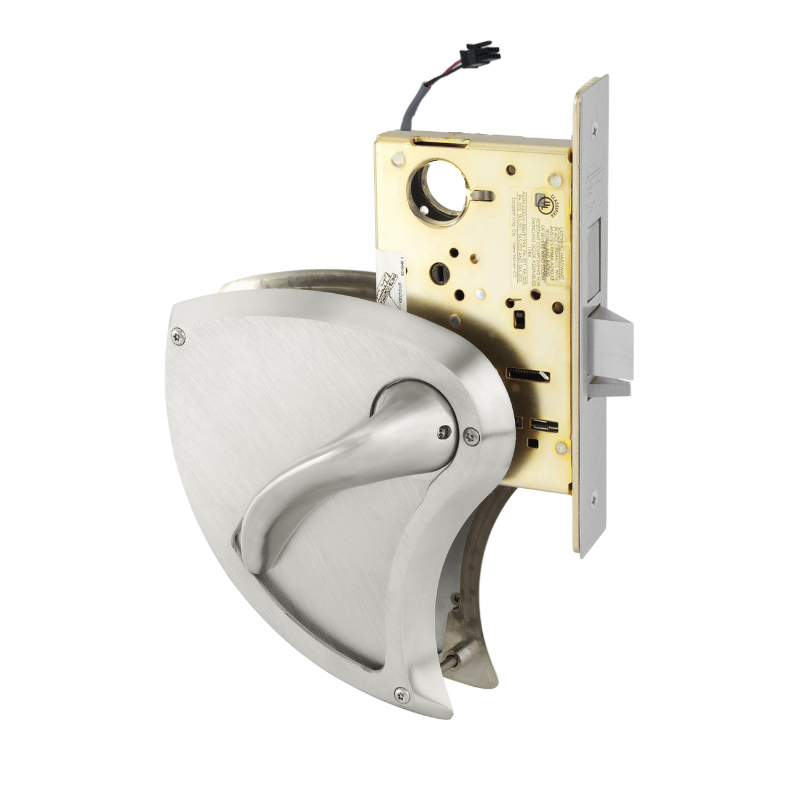

Sargent RX-8240-BHW-US32D-LC Behavioral Health Classroom Security Intruder Deadbolt Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8240-BHW-US32D-LC is a Grade 1 behavioral health mortise lock designed for classroom security. Featuring an intruder deadbolt function and BHW trim, it includes the "RX" Request To Exit switch and comes without a cylinder. Its field-reversible design in 630 satin stainless steel ensures durable, professional-grade performance.

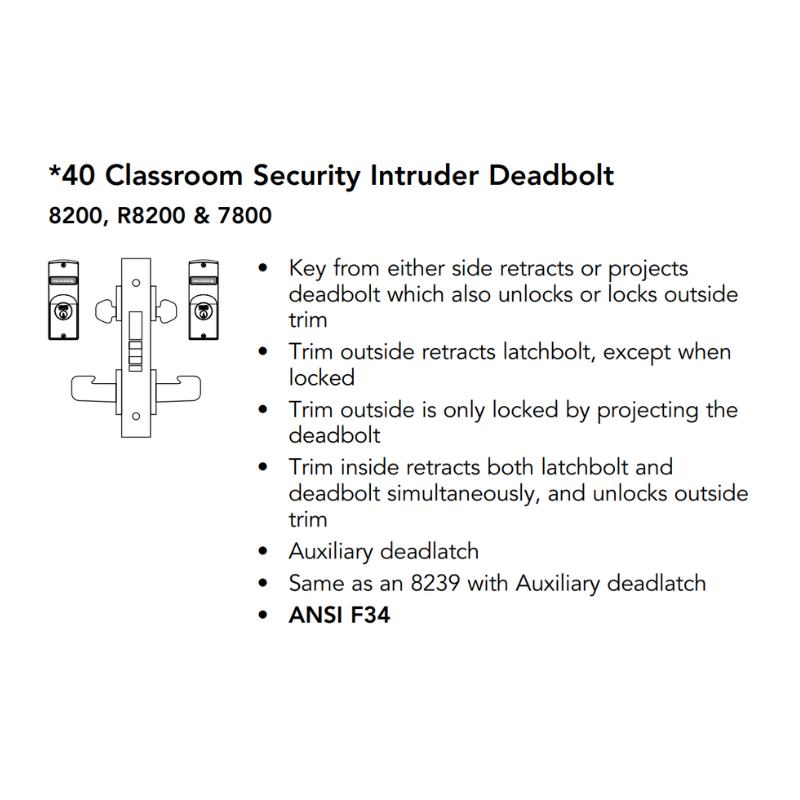

• Classroom Security Intruder Deadbolt Function:
  • Key from either side retracts or projects deadbolt which also unlocks or locks outside trim

  • Trim outside retracts latchbolt, except when locked

  • Trim outside is only locked by projecting the deadbolt

  • Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
