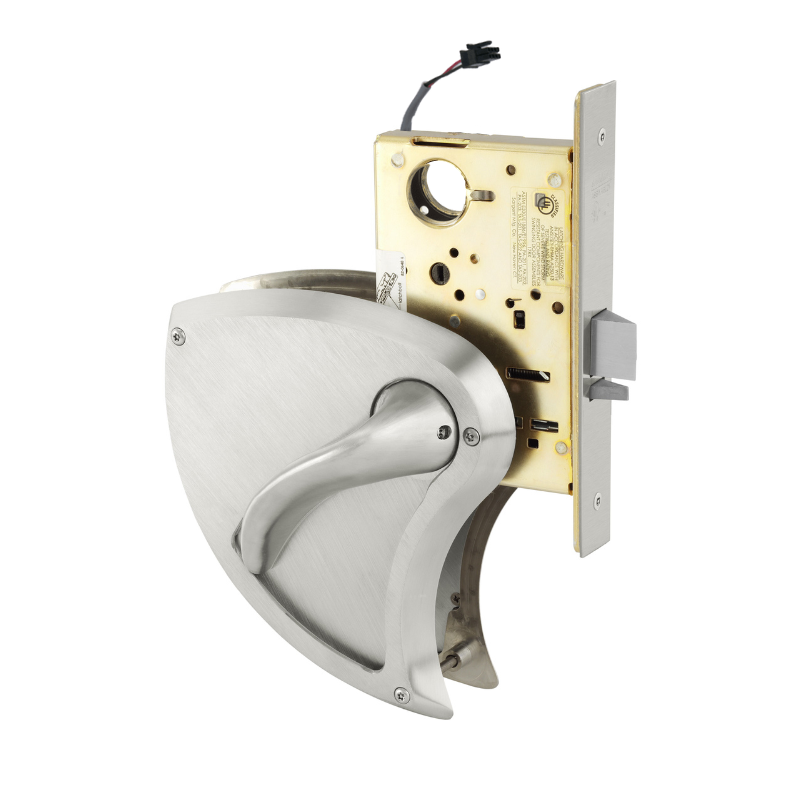

Sargent RX-8205-BHW-US32D-LC Behavioral Health Office or Entry Function Mortise Lock, Key Retracts Latch, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

Sargent RX-8205-BHW-US32D-LC Behavioral Health Mortise Lock designed for office or entry use features a key-retractable latch and BHW trim. Equipped with the "RX" request-to-exit switch and available without a cylinder, this Grade 1 lock is field reversible and finished in 630 satin stainless steel.

• Office or Entry Function:
  • Key outside retracts latchbolt, also locks & unlocks outside trim

  • Trim inside always retracts latchbolt, trim outside remains locked

  • Thumbturn inside locks & unlocks outside trim

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
