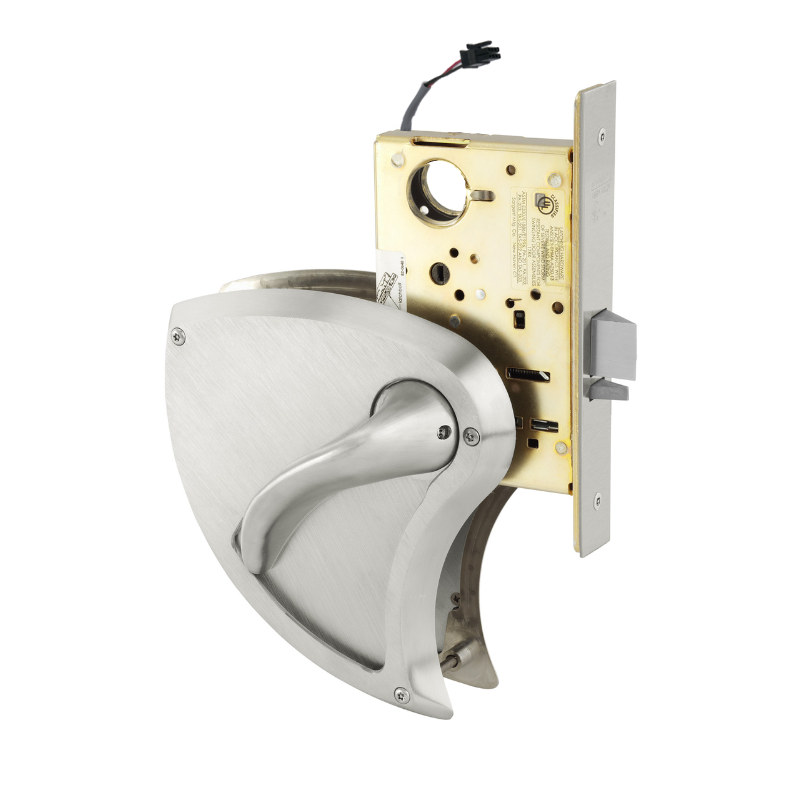

Sargent RX-8204-BHW-US32D-LC Behavioral Health Storeroom Function Mortise Lock, Key Retracts Latch, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8204-BHW-US32D-LC Behavioral Health Mortise Lock features a storeroom function with a latch that retracts when keyed, paired with BHW trim and the "RX" request-to-exit switch. Designed for Grade 1 security, this lock is field reversible and comes without a cylinder, finished in satin stainless steel (630).

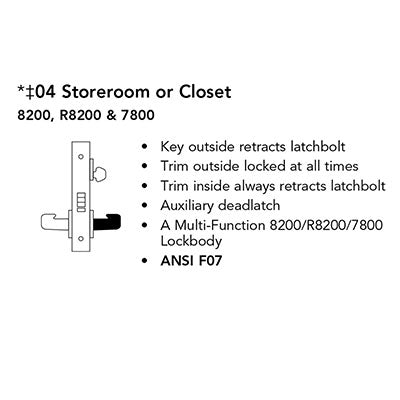

• Storeroom Function:
  • Key outside retracts latchbolt

  • Trim outside locked at all times

  • Trim inside always retracts latchbolt

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
