Description

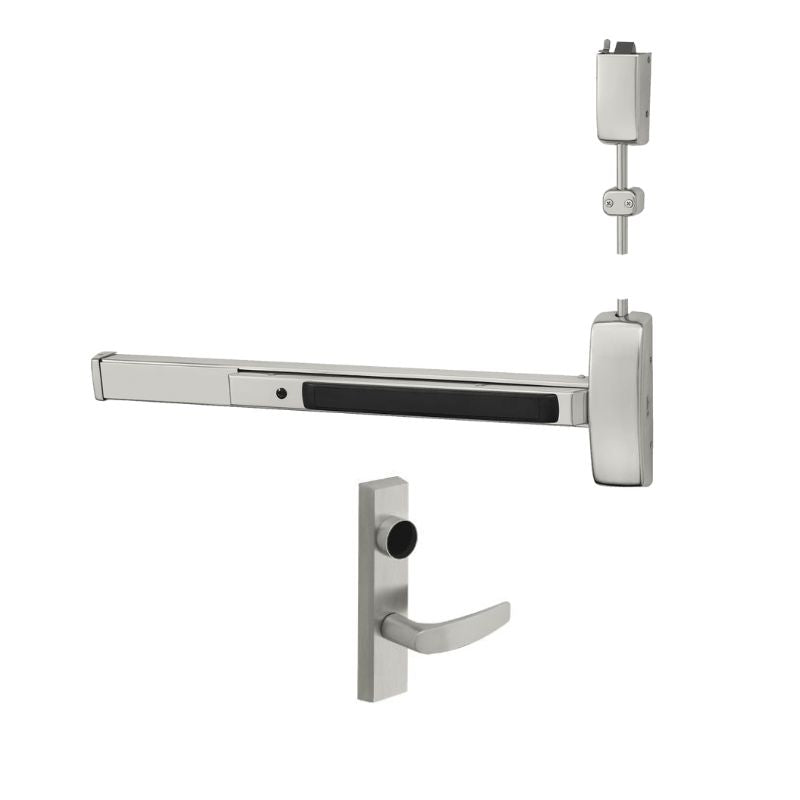

Sargent NB8706-F-ETB-LC Surface Vertical Rod Exit Device, With Storeroom Function ET Trim, Escutcheon-B Lever, For 33-36 In Dr W, 84 In Dr Ht, Less Bottom Rod, Includes Thermal Pin, Less Cylinder
The Sargent NB8706-F-ETB Surface Vertical Rod Exit Device is designed for 33-36 inch door widths and an 84 inch door height. It comes with the LC-706ETP trim. Additional features include a storeroom function, ET escutcheon-B lever, thermal pin, and a cylinder-less design.
Come With Sargent LC-706-8-ETB Exit Device Trim, Key Locks/Unlocks Storeroom Function, ET Escutcheon-B Lever, Less Cylinder
NB8700 Series Surface Vertical Rod Exit Devices
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. This series has both rated and non-rated openings.
- Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- Prefix; 4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Storeroom |
| Device Length | 36" |
| Hand | LHR or RHR |
| Mechanical Options | Less Bottom Rod |
| Dogging Options | Less Dogging |
| Top Strike | 646 |
| Includes Trim | Yes |
| Trim Type | 706-8 ETB |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
