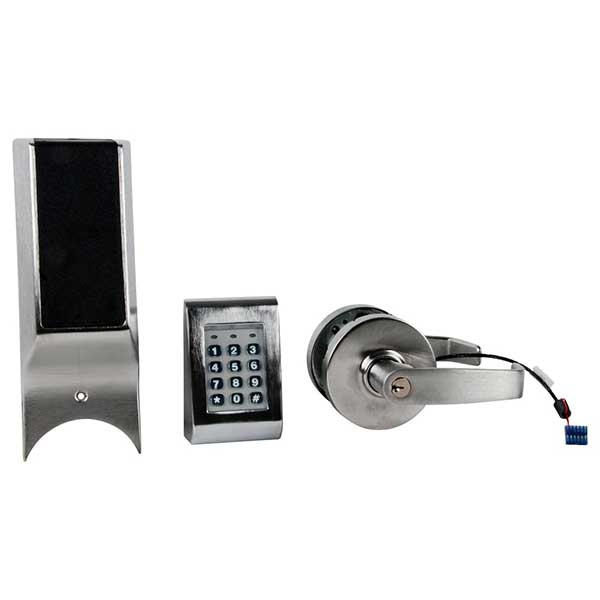

Sargent KP10XG77-LL-LA-KD Cylindrical Keypad Lock, With Key Override, L Rose, L-Lever, LA Keyway Keyed Random, [2] Change Keys, Non Handed
The Sargent KP10XG77-LL Cylindrical Keypad Lock features a key override and L rose, L lever, and LA keyway for enhanced security. This lock is also equipped with LA Keyway Keyed Random and comes with [2] change keys, making it a non-handed option.
The Keypad Operated Products 10X Line Cylindrical lock is available with a wide selection of lever designs and hardware finishes. Its unique design provides uniformity when used with other SARGENT locks at a facility. The KP products offer economical, standalone access control solutions.
- Certified ANSI A156.2 Series 4000 - Grade 1
- UL listed to U.S.A. and Canadian safety standards Listed for 3-hour doors (double doors require 41 - option)
- Motor driven 10X Line cylindrical lock
- Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm) throw (41- option) available
- 2-3/4" (70mm) backset standard. Consult the factory for other backsets available
- Non-handed
- Heavy-duty lever spring return rose assembly
- Steel spacer bushing and extended one-piece bearing sleeves
- Steel mounting studs
- 3 through-bolt position combinations
- Key override standard
- Includes code to activate a horn when keypad buttons are pushed
- Not available with 82-, F1-82, 83-, F1-83, or 84- options
- For 1-3/4" (44mm) thick doors standard
