Sargent AD8410G-84 Concealed Vertical Rod Exit Device, 43-48" Width, Exit Only Narrow Stile Pad, 84" Ht

  • SKU: AD8410G84US32DRHR
Dhs. 6,864.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel
Handing: RHR - Right Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent AD8410G-84 Concealed Vertical...
Quantity
–
+
From Dhs. 6,864.00
Sargent 106 Auxiliary Outside Control...
Quantity
–
+
From Dhs. 1,767.00
Total

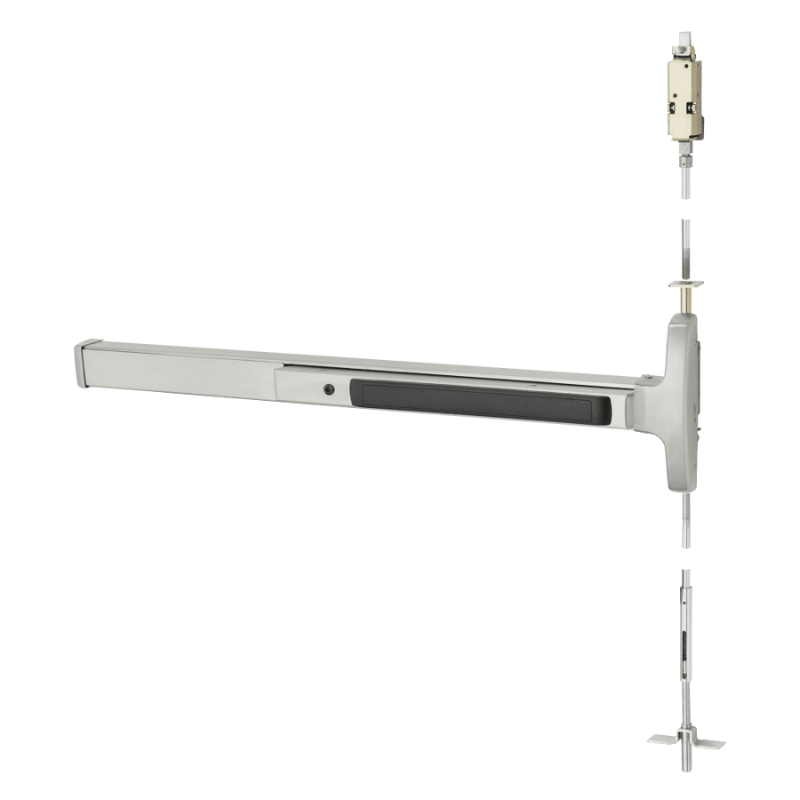

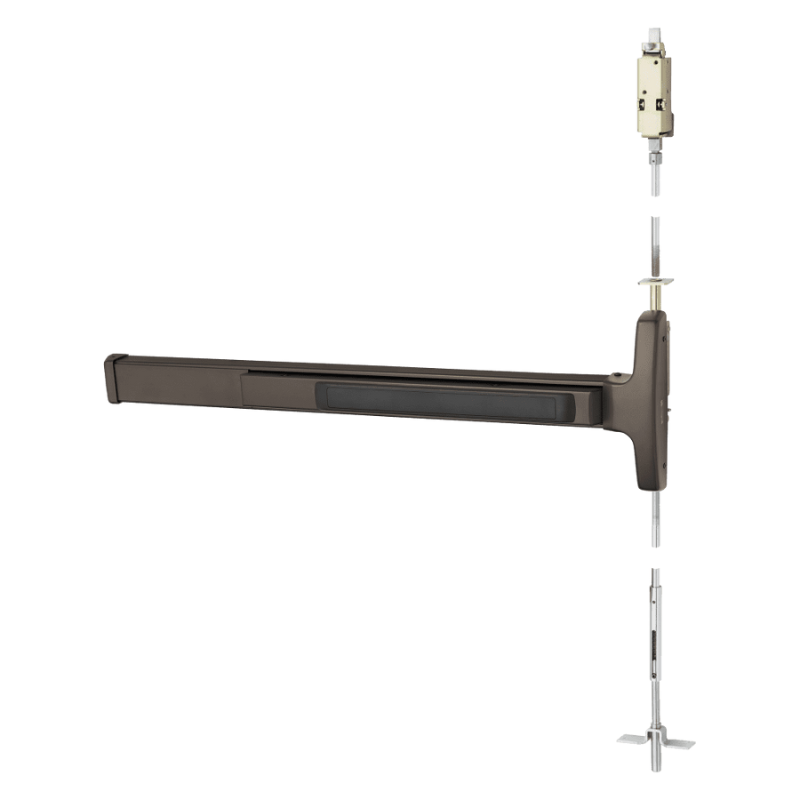

Sargent AD8410G-84 Concealed Vertical Rod Exit Device, Exit Only Narrow Stile Pushpad, Less Trim, 43-48" Dr Width, 84" Ht, Hex Key Dogging, Grade 1

The Sargent AD8410G-84 is a Grade 1 concealed vertical rod exit device designed for 43-48" door widths and 84" door height. It features an exit-only narrow stile pushpad with less trim for a streamlined appearance and includes hex key dogging for controlled access.

Features

  • Designed for narrow stile aluminum door applications (e.g., full glass doors)
  • Concealed rods for security and aesthetics
  • UL10C (Fire) and UL305 (Panic) listed
  • Less Trim
  • Devices are ANSI/BHMA A156.3 - Grade 1
Sargent Function Numbers ANSI Function Numbers  Description & Cylinder Info AD8400 Panic
10 01

No outside operation (No Cylinder)*

 AD8410 Less Trim
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Mutli-Function
Device Length 48"
Hand LHR or RHR
Dogging Options Hex Key Dogging
Top Strike 640
Strike Bottom 640
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 1 3/4"
Door Material Aluminum
Door Width 43" to 48"
Door Height 84"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible No
Product Type Concealed Vertical Rod Exit Devices
