All SARGENT Products

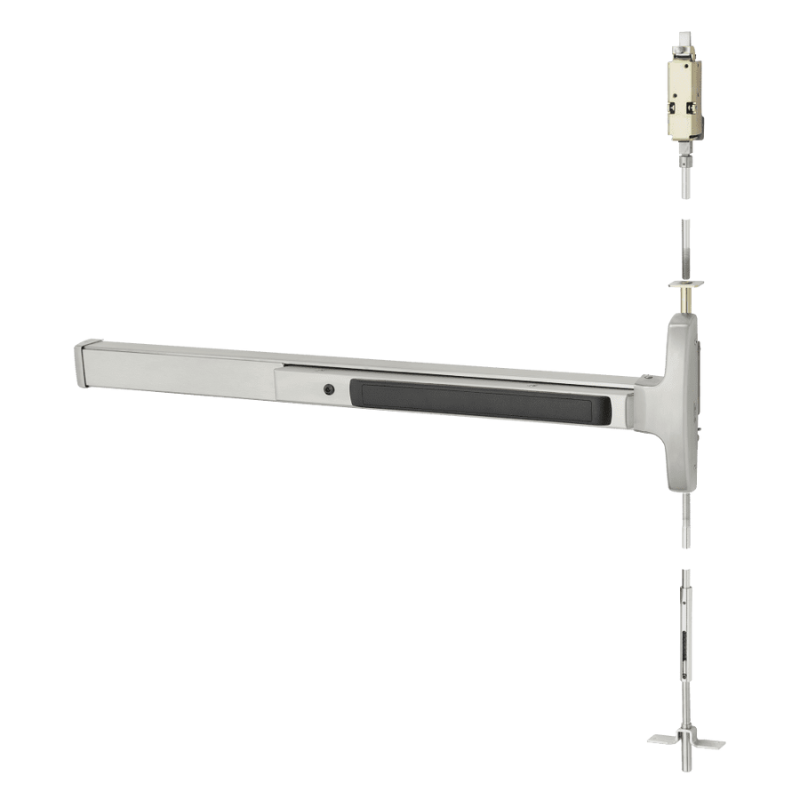

Sargent AD8410G-120 Concealed Vertical Rod Exit Device, 43-48" Width, Exit Only Narrow Stile Pad, 120" Ht

  • SKU: AD8410G120US32DRHR
Sargent AD8410G-120-US32D
Sargent AD8410G-120-US10B
Sargent AD8410G-120-US10BE
Sargent AD8410G-120-BSP
Sargent AD8410G-120-US32D
Sargent AD8410G-120-US10B
Sargent AD8410G-120-US10BE
Sargent AD8410G-120-BSP
All SARGENT Products

Sargent AD8410G-120 Concealed Vertical Rod Exit Device, 43-48" Width, Exit Only Narrow Stile Pad, 120" Ht

  • SKU: AD8410G120US32DRHR
Dhs. 7,015.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel
Handing: RHR - Right Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent AD8410G-120 Concealed Vertica...
Quantity
–
+
From Dhs. 7,015.00
Sargent 106 Auxiliary Outside Control...
Quantity
–
+
From Dhs. 1,767.00
Total

Sargent AD8410G-120 Concealed Vertical Rod Exit Device, Exit Only Narrow Stile Pushpad, Less Trim, 43-48" Dr Width, 120" Ht, Hex Key Dogging, Grade 1

The Sargent AD8410G-120 is a Grade 1 concealed vertical rod exit device designed for narrow stile doors with widths from 43 to 48 inches and a height of 120 inches. It features an exit-only pushpad with less trim and includes hex key dogging for secure, reliable operation.

Features

  • Designed for narrow stile aluminum door applications (e.g., full glass doors)
  • Concealed rods for security and aesthetics
  • UL10C (Fire) and UL305 (Panic) listed
  • Less Trim
  • Devices are ANSI/BHMA A156.3 - Grade 1
Sargent Function Numbers ANSI Function Numbers  Description & Cylinder Info AD8400 Panic
10 01

No outside operation (No Cylinder)*

 AD8410 Less Trim
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Mutli-Function
Device Length 48"
Hand LHR or RHR
Dogging Options Hex Key Dogging
Top Strike 640
Strike Bottom 640
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 1 3/4"
Door Material Aluminum
Door Width 43" to 48"
Door Height 120"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible No
Product Type Concealed Vertical Rod Exit Devices


Product Cut Sheet
